FD120-17 Continental Bellows Style Convoluted Air Spring For Conveyor End Stop

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B12017

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B12017	Air Spring Type:	Double Convoluted
Fuction:	Reduce Shock	Firestone:	W01-M58-6353
Trademark:	GUOMAT	After-sales Service:	One Year
Air Inlet:	G 1/4	Static Height:	196 MM
Highlight:	Continental Bellows Style Convoluted Air Spring , FD120-17 Convoluted Air Spring

FD120-17 Continental Bellows Style Convoluted Air Spring For Conveyor End Stop

Product Information

Cover Plate

Top Cover Plate Diameter: 136mm
Screw Center Distance of Top Cover Plate: 70 mm
Bottom Cover Plate Diameter: 136 mm
Screw Center Distance of Bottom Cover Plate: 70 mm

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25

Gas Hole/Air Inlet/Air Fitting

Air Hole: G 1/4

Rubber Bellow

Rubber Bellow Max. Dia.: 185 mm
Design Height: 196 mm

Product Technical Data

Vibration isolation - dynamic characteristic values
Design Height H: recommended 190mm, minimum 175mm

Pressure p[bar]	3	4	5	6	7	8	Vol. V[l]
Force(Load) [KN]	3.8	5.2	6.5	8.0	9.3	10.6	3.2
Spring rate [N/cm]	600	830	1060	1290	1520	1750
Natural frequency [Hz]	2.1	2.0	2.0	2.0	2.0	2.0

Alternative Items

Contitech Air Spring	FD 120-17 61361, FD120-17 61361, FD12017 61361
Airkraft Air Spring	2B-180, 2B 180, 2B180, 2B-181, 2B 181, 2B181, 13054
Firestone Air Spring	W01-M58-6353, W01 M58 6353, W01M586353 WO1-M58-6353, WO1 M58 6353, WO1M586353 026B095.0275
Weforma Air Spring	WBZ 300-E2, WBZ300-E2, WBZ 300 E2, WBZ300E2
Bosch Air Spring	822419062

FAQ

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

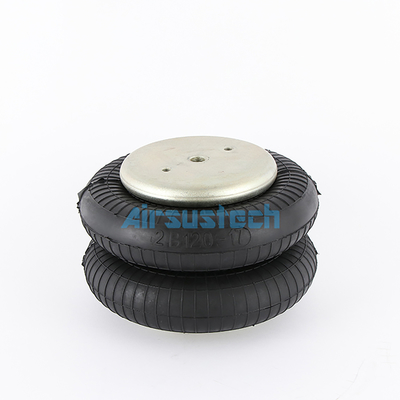

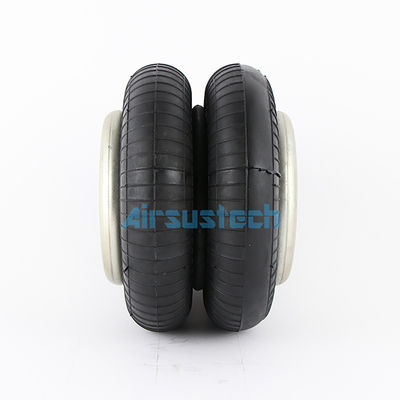

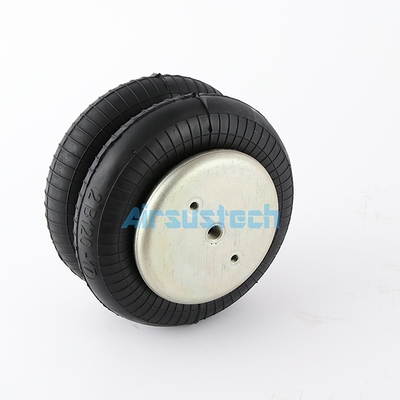

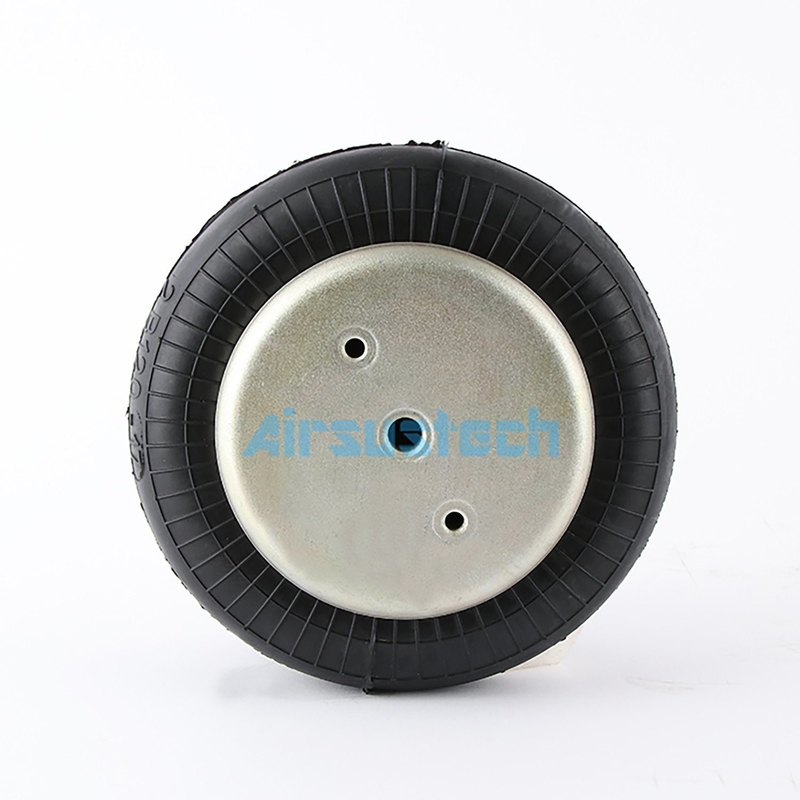

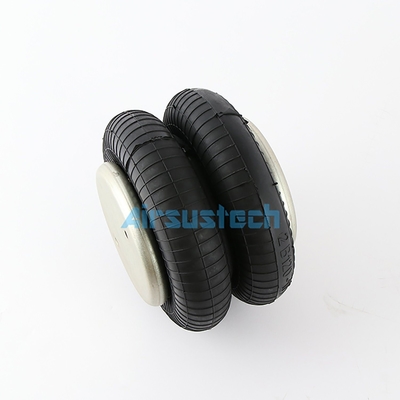

2B12017 Real Pictures

FD120-17 Continental Bellows Style Convoluted Air Spring For Conveyor End Stop 0
