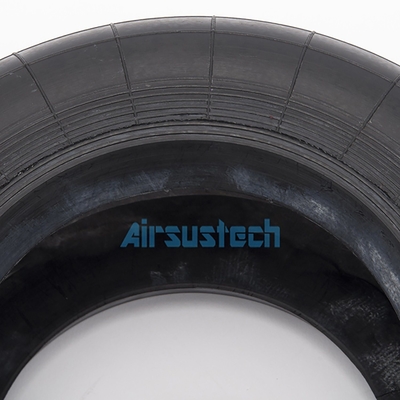

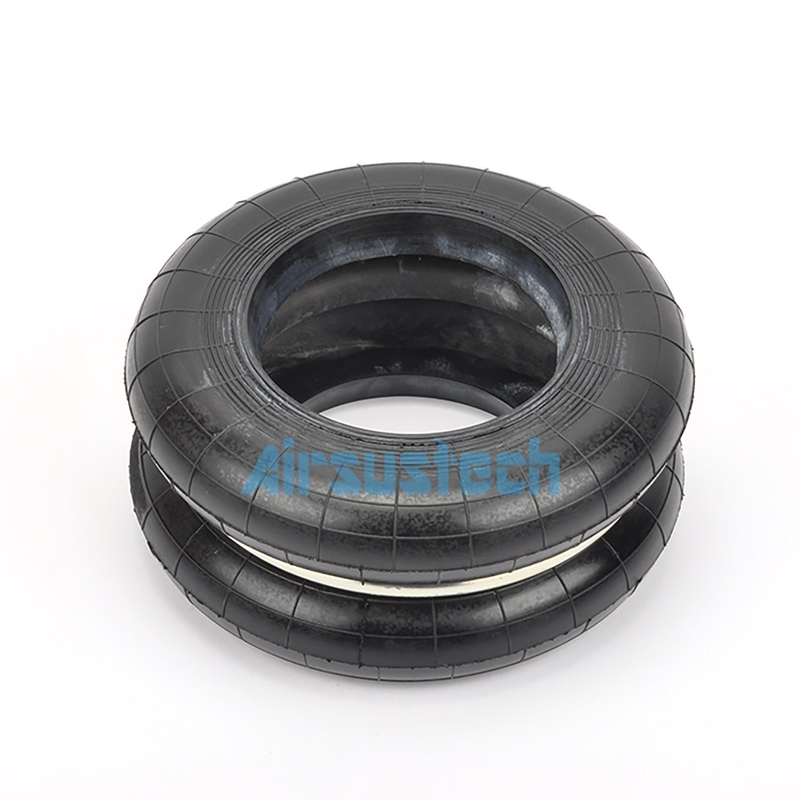

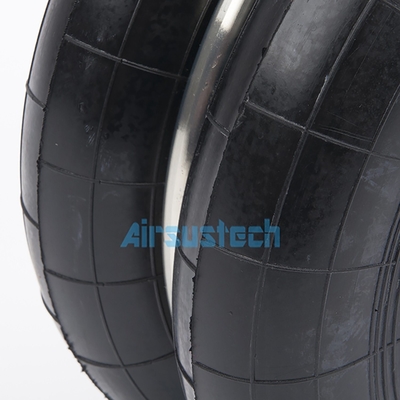

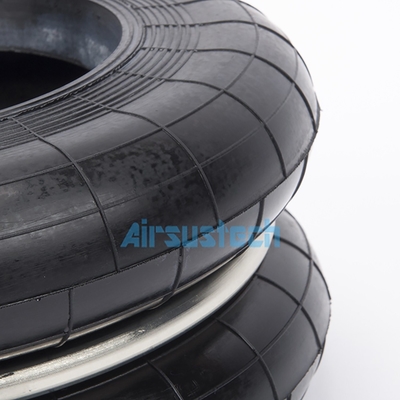

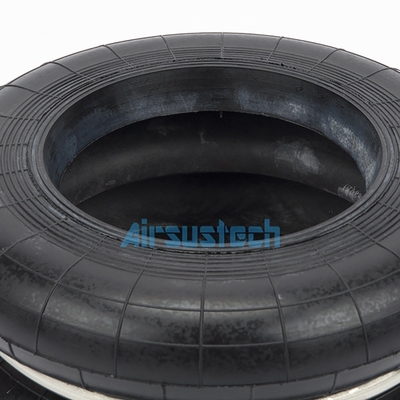

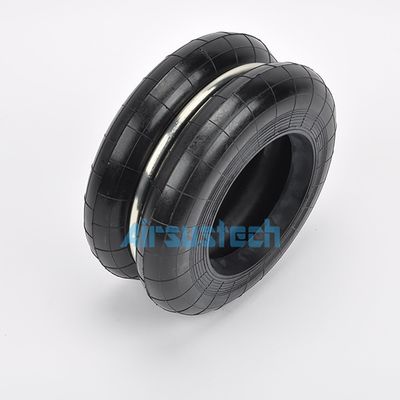

AIRSUSTECH Pneumatic F-200-2 Double Convoluted Cross Yokohama S-200-2R Air Spring

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-200-2

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD159.9-199.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Rubber Air Spring	GUOMAT NO.:	F-200-2
Spring Material:	High Quality Rubber	Quality:	100 % Tested
Fuction:	Reduce Shock	Yokohama:	S-200-2R
Color:	Black	Key:	Convoluted Air Spring Presses
Highlight:	Yokohama S-200-2R Air Spring , Double Convoluted Cross Air Spring

AIRSUSTECH Pneumatic F-200-2 Double convoluted Cross Yokohama S-200-2R Air Spring

OEM Cross reference:

AIRSUSTECH Part No.: F-200-2

YOKOHAMA S-200-2R

YOKOHAMA S 200 2R

YOKOHAMA S-200-2

Specifications and Detailed Technical Parameters: F-200-2

Model Size	Height (mm)			Standard height, approximate value at 0.49MPA internal pressure					Maxi inner Pressure Limited(Mpa)	Burst Inner Pressure(Mpa)	Max stroke (mm)	Max. Dia.(mm)
Model Size	Design Height	Max. Height	Min Height	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maxi inner Pressure Limited(Mpa)	Burst Inner Pressure(Mpa)	Max stroke (mm)	Max. Dia.(mm)
S-200-4	206	311	111	315	7.2	15.4	177	1.7	0.88	2.9-3.9	±70	315
S-200-3	152	232	82	315	5.2	15.4	235	2.0	0.88	2.9-3.9	±53	315
S-200-2	98	148	53	315	3.2	15.4	373	2.5	0.88	2.9-3.9	±35	315

Other types of Punch Air Spring:

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R
