Goodyear 3B14-374 Air Spring Assembly Triple Convoluted Air Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B14-374

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model OEM NO.:	3B14-374	Condition:	Brand-New
Key Word:	Goodyear 3B14-374	Trademark:	GUOMAT
Air Inlet:	1/4 NPT	Minimum Height:	4.5 MM
Maximum Height:	20 MM	Firestone:	W01-358-7842 \| Customized Request
Highlight:	Goodyear 3B14-374 Air Spring Assembly , Triple Convoluted Air Spring Assembly

Goodyear 3B14-374 Air Spring Assembly Triple Convoluted Air Shock Absorber

Product Specification

Bottom Plate Center To Center Diameter	6.25in.
Bottom Plate Diameter	11.31 in.
Bottom Plate Hole Quantity	4
Bottom Plate Type	Steel
Top Plate Alignment	Parallel
Top Plate Center To Center Diameter	6.25in.
Top Plate Diameter	11.31 in.
Top Plate Hole Quantity	5
Top Plate Type	Steel
Bellow Maximum Diameter	15.2 in.
Design Height	##
Maximum Height	20 in.
Minimum Height	4.5 in.
Bellows Type	Triple Convoluted
Air Inlet	1/4 NPT
Nut/Nuts Type	3/8-16 Blind Nuts

3B14-374 Refer NO.

Firestone Air Spring: W01-358-7842

Firestone Air Spring: W01 358 7842

Firestone Air Spring: W013587842

Firestone Air Spring: WO1-358-7842

Firestone Air Spring: WO1 358 7842

Firestone Air Spring: WO13587842

Contitech Air Spring: FT 530-35 CI 3/4 NPT OS

Contitech Air Spring: FT530-35 C1 3/4 NPT OS

Contitech Air Spring: FT530 35 C1 3/4 NPT OS

Contitech Air Spring: FT 530 35 C1 3/4 NPT OS

Contitech Air Spring: FT 530 35C1 3/4NPT OS

Goodyear Air Spring Other OEM Number

Goodyear Air Spring OE NO.	Goodyear Air Spring OE Bellows NO.	Goodyear order NO.	Bumper or not	Goodyear Air Spring OE NO.
1B8-564 Bellows Air Spring	1B8-564	20449825	N	1B8-564 Bellows Air Spring
ENIDINE YI-1B8-564	57991256400019	20095534	Y	ENIDINE YI-1B8-564
1B8-564 INTERNATIONAL 3547005C1	57991256400042	20141113	Y	1B8-564 INTERNATIONAL 3547005C1
1B8-565	1B8-565	20248442	N	1B8-565
C 1B8-560	57991256700090	20810735	Y	C 1B8-560
P 1B8-560	57991256800091	20810607	Y	P 1B8-560
P 1B8-550	57991256900091	20811403	Y	P 1B8-550
C 1B8-562	57991257000090	20811604	Y	C 1B8-562
C 1B8-564	57991257100090	20811605	Y	C 1B8-564
C 1B8-850	57991257200090	20811606	Y	C 1B8-850
C 1B8-550	57991262700090	20806174	Y	C 1B8-550
1B5-800	1B5-800	20469101	N	1B5-800
ENIDINE YI-1B5-800	57991280000019	20095537	Y	ENIDINE YI-1B5-800
GOODYEAR 1B5-801	57991280100000	20607917	Y	GOODYEAR 1B5-801
ENIDINE YI-1B5-801	57991280100019	20095538	Y	ENIDINE YI-1B5-801
1B5-810	1B5-810	20254245	N	1B5-810
ENIDINE YI-1B5-810	57991281000019	20095539	Y	ENIDINE YI-1B5-810
ENIDINE YI-1B5-820	57991282000019	20095540	Y	ENIDINE YI-1B5-820
ENIDINE YI-1B5-821	57991282100019	20224307	Y	ENIDINE YI-1B5-821
ENIDINE YI-1B6-831	57991283100019	20095541	Y	ENIDINE YI-1B6-831

FAQ

Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.

Q: Can I use my own logo and design on products?
A: YES,OEM is welcomed.

Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

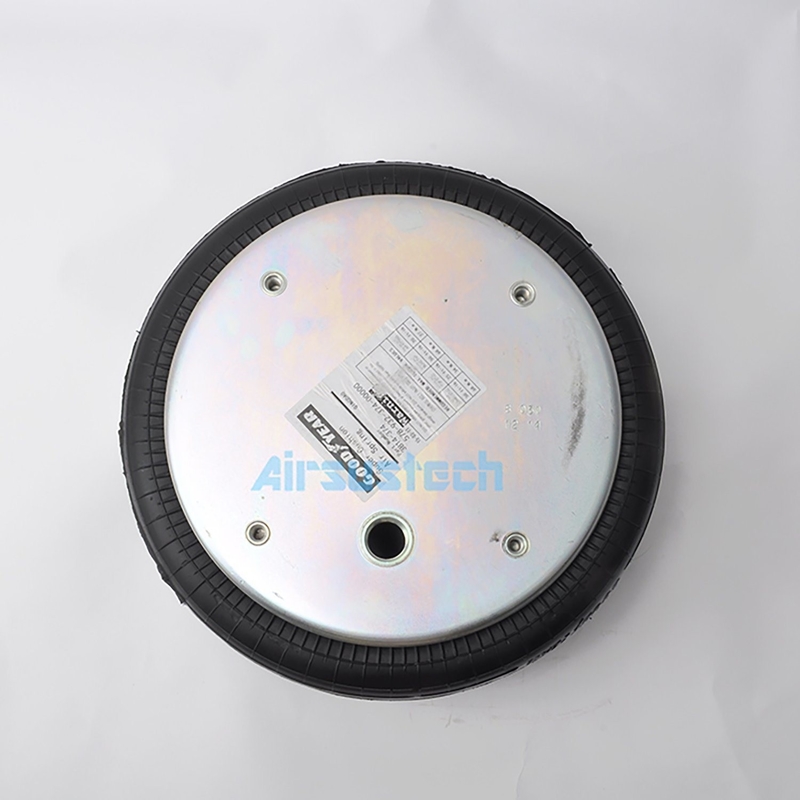

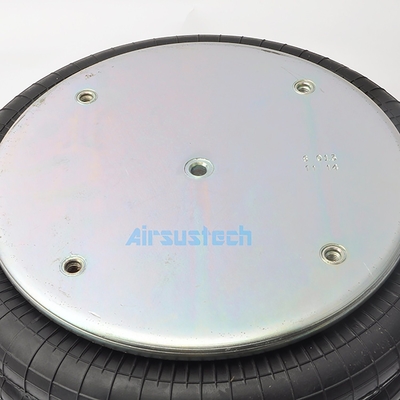

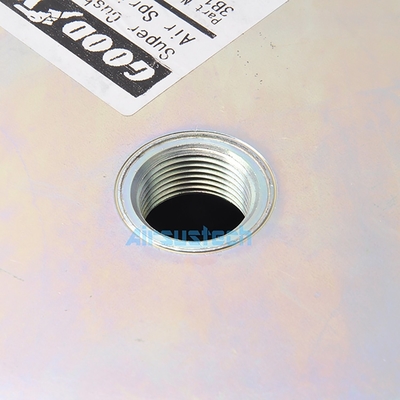

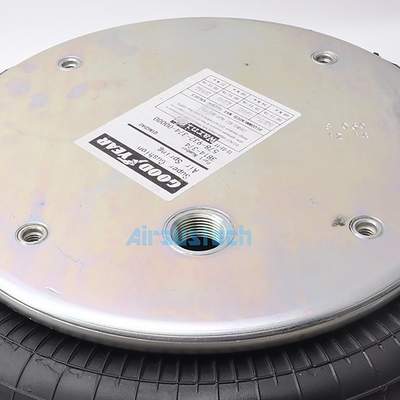

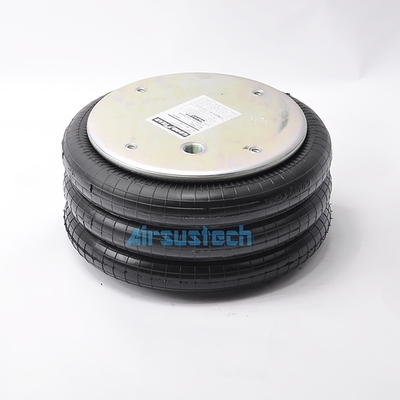

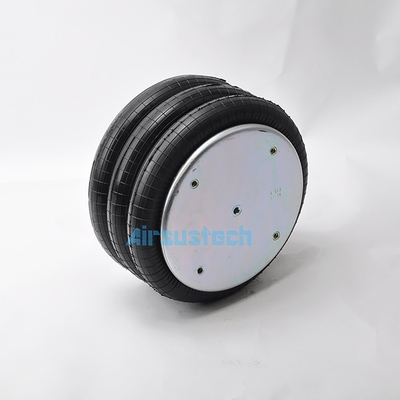

The Real Picture of 3B14-374

Goodyear 3B14-374 Air Spring Assembly Triple Convoluted Air Shock Absorber 0
