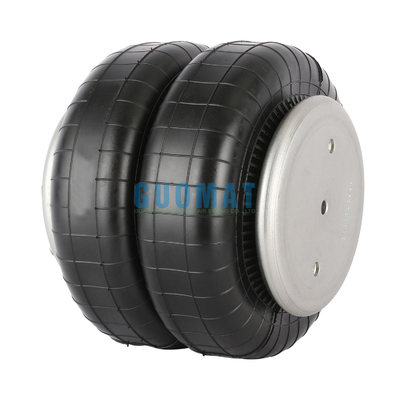

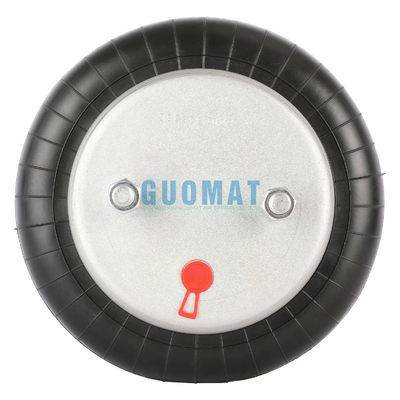

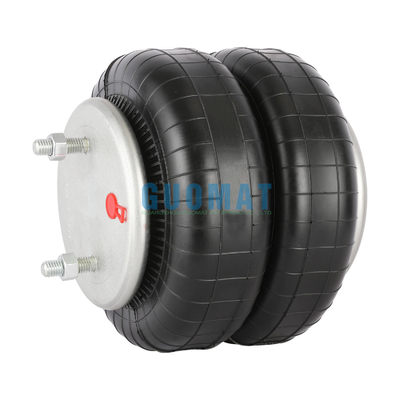

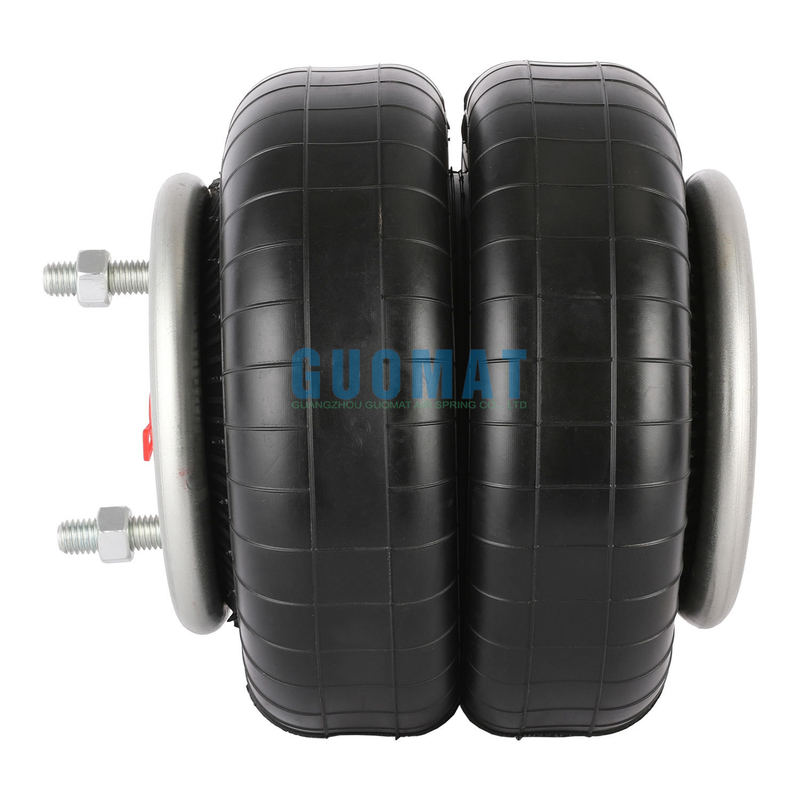

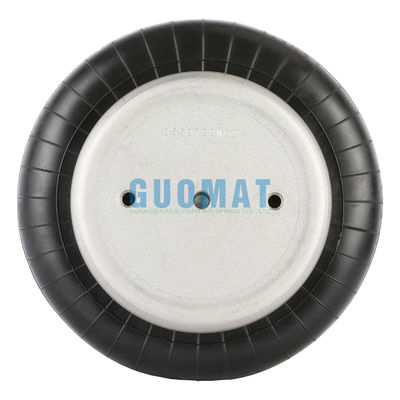

2B9-250 Goodyear Convoluted Air Spring Shocks For Watson Chalin AS-0041 Part

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6943

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	W01-358-6943	Spring Material:	Rubber And Steel
Bellows Type:	Double Convoluted	Function:	Reduce Shock
Quality:	100% Tested	Watson&Chalin:	As-0041
Triangle:	6332/4426	Trademark:	GUOMAT
Highlight:	AS-0041 Goodyear Convoluted Air Spring , AS-0041 Goodyear Air Spring , Watson Chalin Goodyear Air Spring

2B9-250 Goodyear Convoluted Air Spring Shocks For Watson Chalin AS-0041 Part

Product Details

Usable Stroke		9.3
Max Dia @ 100 psi In		10.3
Min Height Inches		3.5
Max Height Inches		12.8
Bumper		NO
Force At Actuator Height Limit (Pounds)	100 psi	1495
	80 psi	1105
	60 psi	750
	40 psi	415
Force At Compressed Height Limit (Pounds )	100 psi	6105
	80 psi	4860
	60 psi	3640
	40 psi	2475
Air Fitting Size (in)		1/4 OS

Manufacturer Part Number

Fire-stone Air Spring	W01-358-6943, W01 358 6943, W013586943 WO1-358-6943, WO1 358 6943, WO13586943
Contitech Air Spring	FD 200-25 426, FD200-25 426, FD 200 25 426, FD200-25426
Contitech Bellow Number	161332
Goodyear Air Spring	2B9-250, 2B 9-250, 2B9 250, 2B 9 250
Goodyear Bellow Number	578923206, 578-92-3-206
Watson&Chalin Air Spring	AS-0041
Neway/SAF	90557237
Ridewell Air Spring	1003586943C
Tuthill Air Spring	6352
V-Steer II (Lift Bag)	#
Van Raden	#

Air Spring Main Data

10 sizes, diameters 70-660 mm (i.e. 2¾"-26")
Strokes from 65 to 430 mm
Single, double or triple convolutions
Angular misalignment: 15° max.
Axial misalignment: 10 mm max.
High thrust and frictionless movement
Maintenance free

GUOMAT Air Spring Introduction

Super-Cushion air springs for trucks, trailers buses, and cab & seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. Super-Cushion air springs give your trucks, trailers and buses a new high in productivity and long life. They offer a quiet, cushioned ride. Truck, trailer and bus bodies last longer than with steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued and stays more alert. Plus cargo has better protection from shock and vibration. Whenever you want to add an axle, Super-Cushion air springs fit right in. Super-Cushion air springs, when used with leveling valves, also maintain consistent trim regardless of the load. That means clearance heights remain constant,and that trailer floors are flush with loading dock floors for ease of loading and unloading. For driver comfort, load cushioning, and long life for your trucks, trailers, bus, and cab and seat springs specify GUOAMT Super-Cushion air springs.
