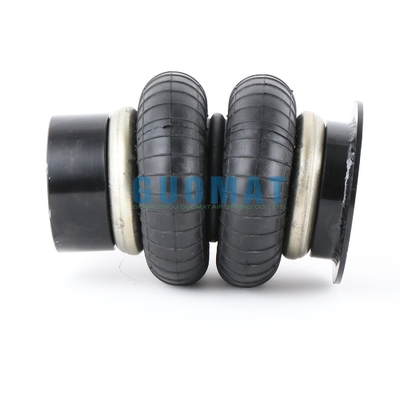

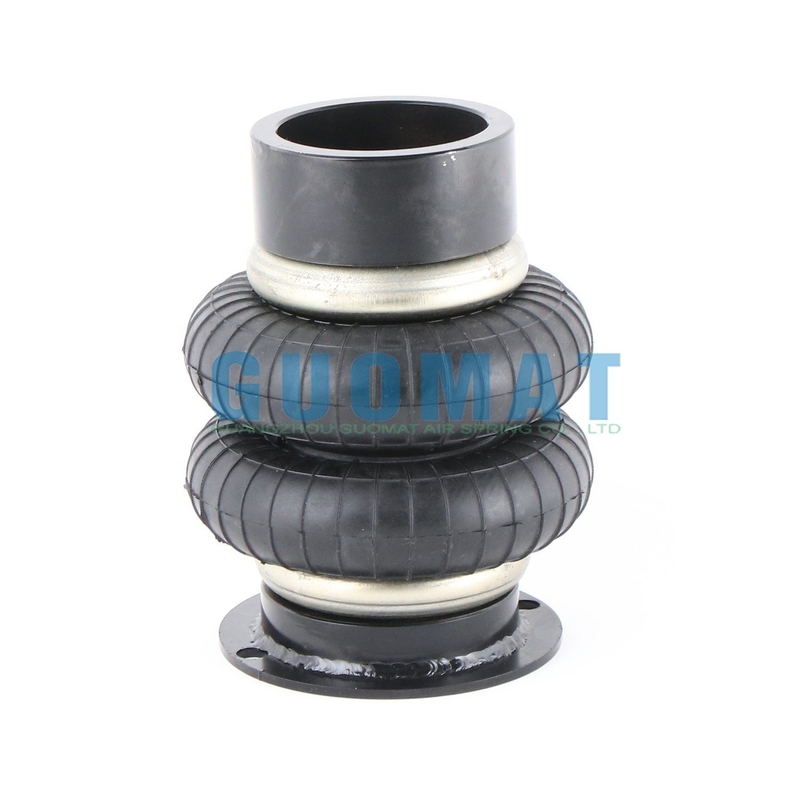

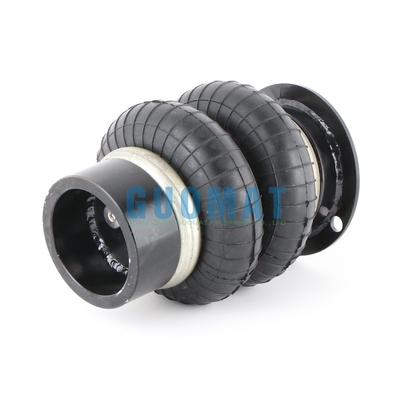

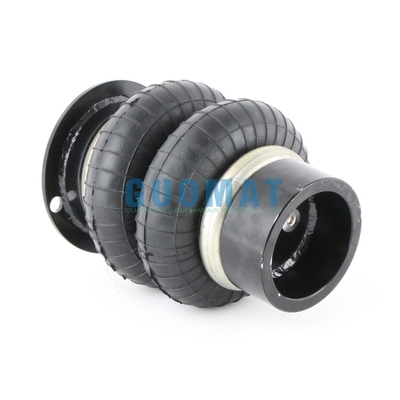

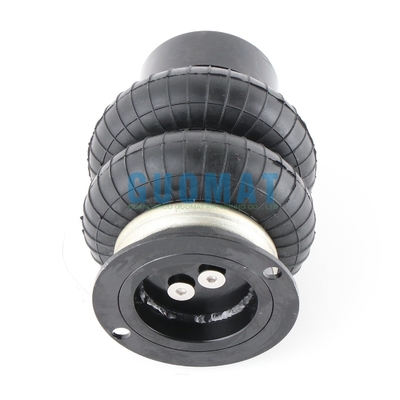

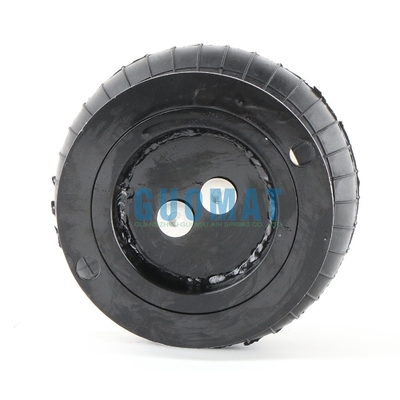

Contitech Air Bellows Actuator FD40-10 Convoluted Air Spring Assembly

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B4060

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	2B4060	Bellows Structure:	Double Convoluted
Brand:	GUOMAT	Function:	Reduce Shock
OEM:	FD40-10	Operation:	Gas-Filled
Sample:	Available	Total Stroke:	100 MM
Highlight:	FD40-10 Convoluted Air Spring , Convoluted Air Spring Assembly

Contitech Air Bellows Actuator FD40-10 Convoluted Air Spring Assembly Brand New

Product Specification

Bottom Plate Alignment	Parallel
Bottom Plate Center To Center Diameter	20 mm
Bottom Plate Diameter	90 mm
Bottom Plate Hole Quantity	2
Bottom Plate Type	Steel
Top Plate Alignment	Parallel
Top Plate Center To Center Diameter	20 mm
Top Plate Diameter	90 mm
Top Plate Hole Quantity	3
Top Plate Type	Steel
Bellow Maximum Diameter	145 mm
Expanded Height	170 mm
Compressed Height	70 mm
Spring Type	Double Convoluted
Air Inlet	G 1/8
Nut/Blind Nuts Type	M8

Product Technical Data

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	160	1.1	1.6	2.0	2.4	2.8	3.2	1.2
	140	1.6	2.2	2.8	3.3	3.9	4.5	1.1
	120	2.0	2.7	3.4	4.1	4.8	5.5	0.9
	100	2.3	3.1	4.0	4.8	5.6	6.4	0.7
	80	2.6	3.5	4.5	5.4	6.3	7.1	0.6

Cross References

GUOMAT NO.
2B4060

Contitech
FD40-10

Contitech
FD 40-10

Contitech
FD40-10 CI

Contitech
FD 40-10 CI

Contitech
FD40-10 CI 1/8 NPT

Contitech
FD 40-10 CI 1/8 NPT

Double Convoluted Air Spring Of Contitech We Can Offer

FD 40-10 CI

FD 70-13 CI

FD 110-15 CI

FD 120-17 CI

FD 120-20 CI

FD 200-19 CI

FD 200-22 CI

FD 200-25 CI

FD 330-22 CI

FD 330-30 CI

FD 530-30 CI

FD 530-35 CI

FD 960-22 CI

FD 133-25 CI

FAQ

Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q1: What's your advantage?
A1: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
