Dunlop 10''X2 Industrial Air Spring Double Convoluted Air Bag For Effective Shock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B10×2T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item NO.:	2B10×2T	Material:	Rubber And Steel
Damping Force Direction:	Bidirectional	Quality:	100% Tested
Air Spring:	Suspension Assembly	Firestone:	W01-R58-4058
Brand Name:	GUOMAT	Type:	Gas-Filled
Highlight:	Dunlop 10''X2 Industrial Air Spring , Industrial Air Spring Double Convoluted

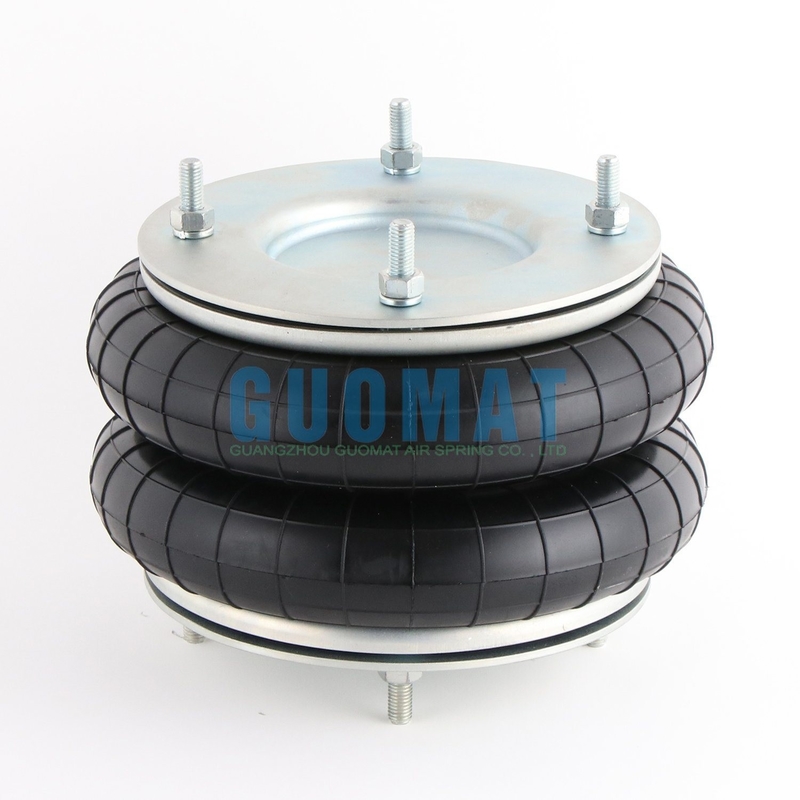

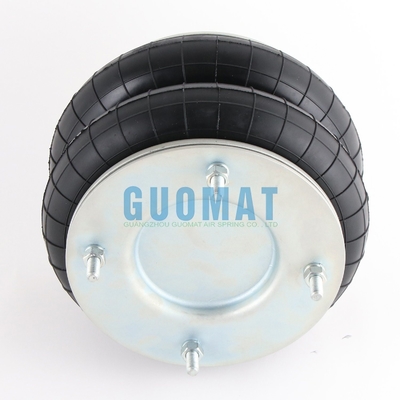

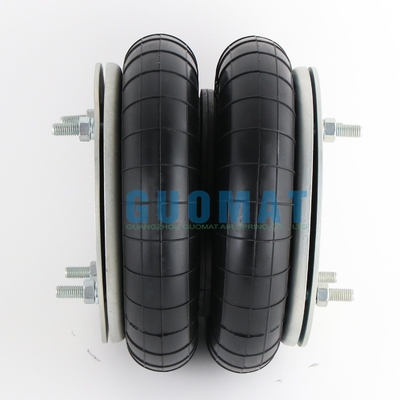

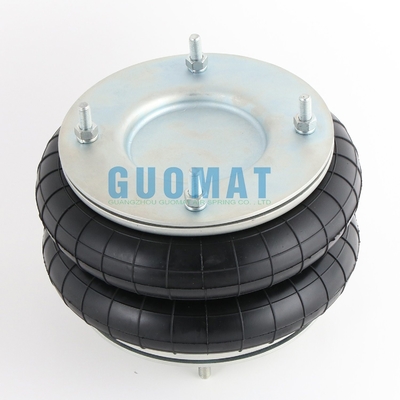

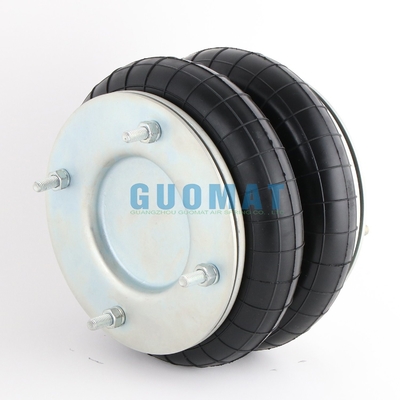

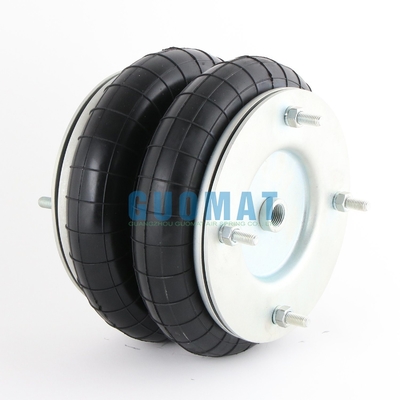

Dunlop 10''X2 Industrial Air Spring Double Convoluted Air Bag For Effective Shock

Product Information

Cover Plate

Top Cover Plate Diameter: 210 mm
Screw Center Distance of Top Cover Plate: 181 mm
Bottom Cover Plate Diameter: 210 mm
Screw Center Distance of Bottom Cover Plate: 181 mm

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 4×M10
Bottom Cover Plate Screw(Nut) Tooth: 4×M10

Gas Hole/Air Inlet/Air Fitting

Air Hole: 1/2 BSP

Rubber Bellow

Rubber Bellow Natural Dia.: 254 mm
Rubber Bellow Max. Dia.: 280 mm
Minimum Height: 70 mm
Maximum Height: 240 mm

Other OEM Numbers

10X2 SBR ASSEMBLY

Firestone Air Spring W01R584058

Firestone Air Spring W01-R58-4058

Firestone Air Spring w01r584058

Firestone Air Spring w01-r58-4058

Dunlop Air Spring SP1538

Dunlop Air Spring SP 1538

Samro Air Spring H25 001 89

Samro Air Spring H25 000 21

Norgen Air Spring M31102

Norgen Air Spring M/31102

Norgen Air Spring M 31102

Contitech Air Spring FD 210-22 DS

Contitech Air Spring FD 210-22 1/2

Contitech Air Spring FD 210-22 DS G1/2

Contitech Air Spring FD 210-22 DS G1/2 CR

Contitech Air Spring FD 210-22 DS CR G1/2

Airkraft Air Spring 2B-255 113100

Granning Air Spring 15807

Other kinds of the Firestone W01-R58 Air Spring

W01-R58-4023 140 W01-R58-4085 133 W01-R58-4052 131 W01-R58-4076 131 W01-R58-4053 132 W01-R58-4092 135

W01-R58-4086 136 W01-R58-4062 138 W01-R58-4054 133 W01-R58-4060 136 W01-R58-4063 138 W01-R58-4074 139

W01-R58-4043 130 W01-R58-4037 137 W01-R58-4050 130 W01-R58-4051 131 W01-R58-4045 133 W01-R58-4055 134

W01-R58-4048 134 W01-R58-4044 136 W01-R58-4075 139 W01-R58-4047 135 W01-R58-4057 134 W01-R58-4038 136

W01-R58-4095 133 W01-R58-4056 134 W01-R58-4035 131 W01-R58-4081 130 W01-R58-4078 132 W01-R58-4070 132

W01-R58-4036 132 W01-R58-4059 135 W01-R58-4061 136 W01-R58-4073 137 W01-R58-4058 134

FAQ

Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
