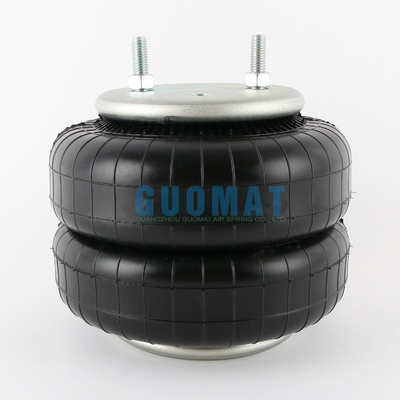

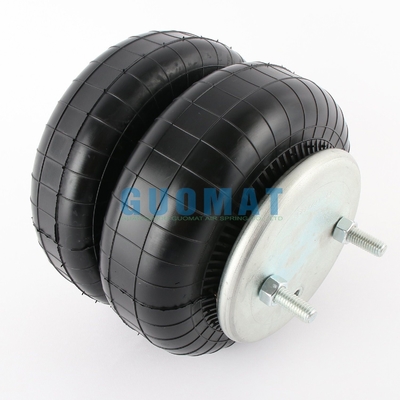

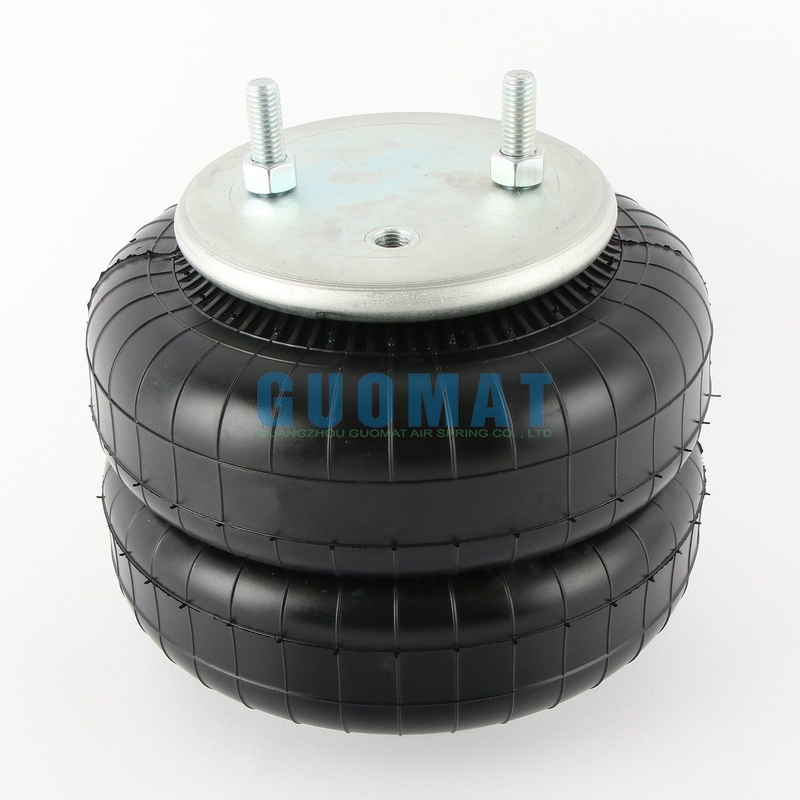

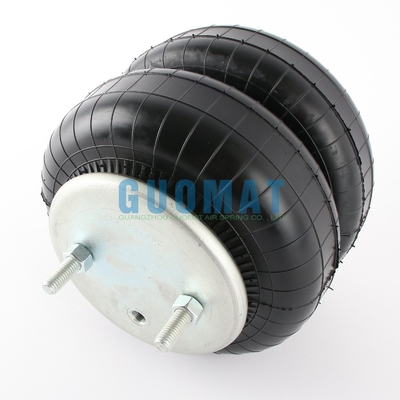

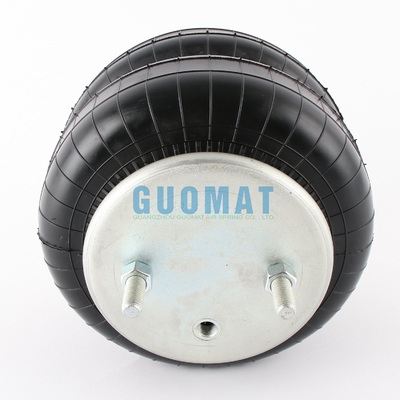

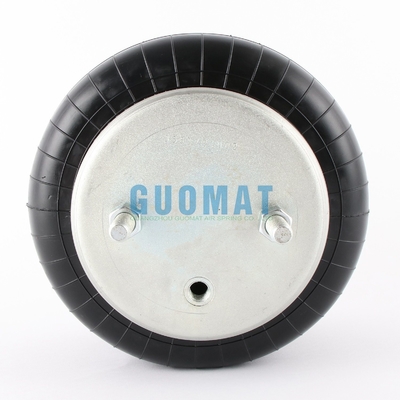

High Quality Rubber Air Bellow 2B9-250 Goodyear Air Spring For Large Drying Machines

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6943

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Neutral packaging or customer's requirements
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item:	Goodyear Air Spring	Goodyear:	2B9-250
Spring Material:	Rubber	Structure:	Double Convoluted
Function:	Reduce Shock	Goodyear Bellows:	2B9-250
Air Connection:	1/4NPTF	Neway/SAF:	90557237
Highlight:	Large Drying Machines Air Spring , High Quality Rubber Air Spring , 2B9-250 Air Spring

High Quality Rubber Air Bellow 2B9-250 Goodyear Air Spring For Large Drying Machines

Product Details

Product Name	Industrial Air Spring	Warranty	12 Months
Description	Double Convoluted Air Spring Bags	Material	Rubber+Steel
MOQ	10 PCS	Payment	L/C ;T/T ;Western Union;Paypal
Port of Shipment	Huangpu ,Guangzhou	Shippment	By sea, By air, by DHL Fedex

Reference Number
Fire-stone Number: W01-358-6943
Fire-stone Number: W01 358 6943
Fire-stone Number: W013586943
Goodyear Number: 2B9-250
Goodyear Number: 2B9 250
Goodyear Number: 2B 9-250
Goodyear Number: 578923206
Goodyear Number: 578-923-2-06
Contitech Number: FD200-25 426
Contitech Number: FD 200-25 426
Contitech Number: 161332
Triangle Number: 6332
Triangle Number: 4426
Watson&Chalin Number: AS-0041
Neway/SAF Number: 90557237
Ridewell Number: 1003586943C
Tuthill Number: 6352
V-Steer II(lift Bag)
Van Raden

Technial Data

Working temperature	-40°C bis +70°C
Failure testing	≥3 millions
Top Cover Plate Diameter	160mm
Bottom Cover Plate Diameter	160mm
Gas Hole / Air inlet	1/4NPTF
Rubber Bellows MAX Diameter	262mm
The Working Stroke	MAX 325 mm to MIN 79 mm
Top Cover Plate Screw (Nut) Tooth	2X1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Screw Center Distance of Top Cover Plate	89mm
Screw Center Distance of Bottom Cover Plate	89mm
