Firestone Air Rubber Bellow W01-R58-4055 Air Spring Suspension 4×M10 Studs

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B8×2T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	W01-R58-4055	Structure:	Double Convoluted
Function:	Reduce Shock	Quality:	100% Tested
OEM:	W01-R58-4055	Brand:	GUOMAT
Minimum Height:	72 MM	Maximum Height:	225 MM
Highlight:	Firestone Air Rubber Bellow , Air Rubber Bellow W01-R58-4055

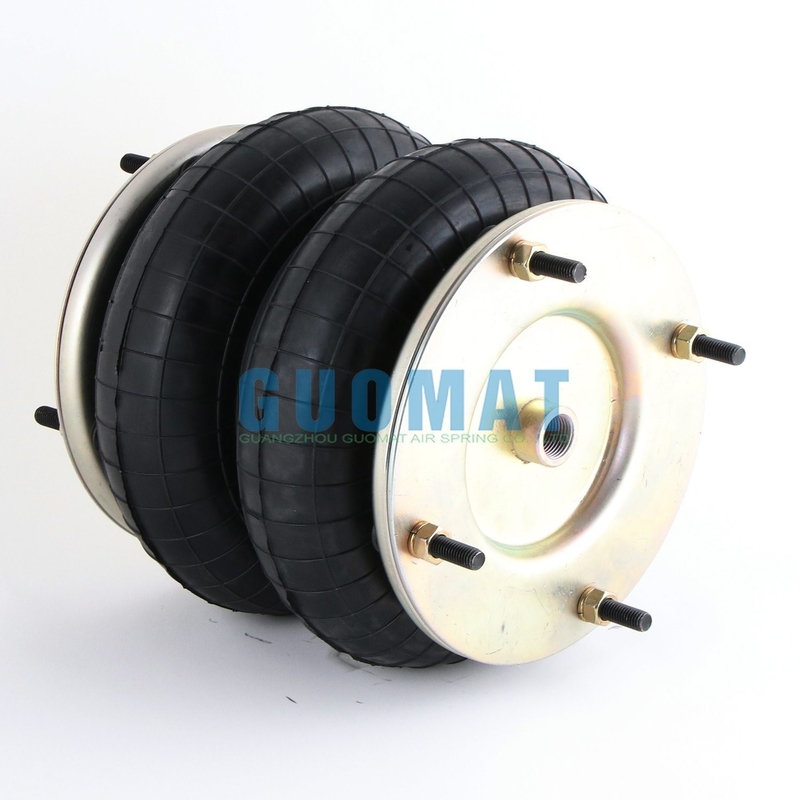

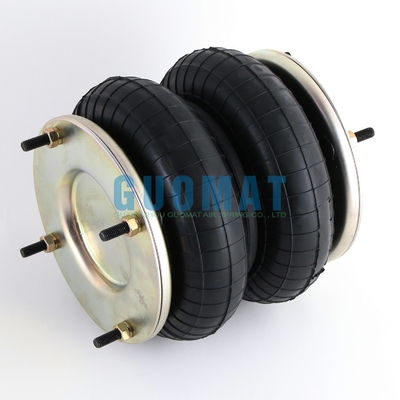

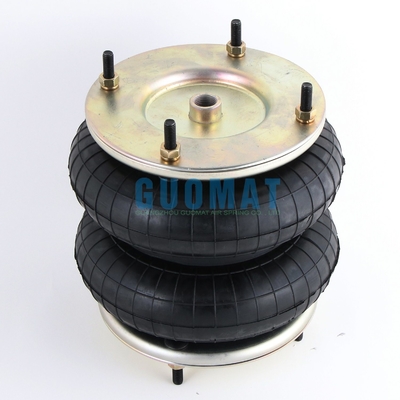

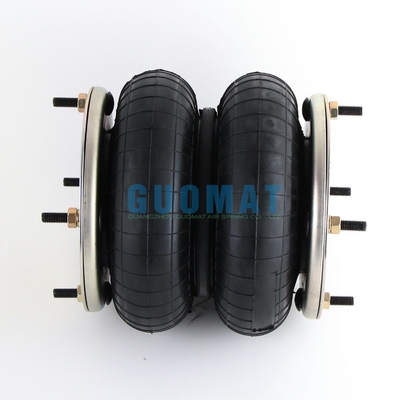

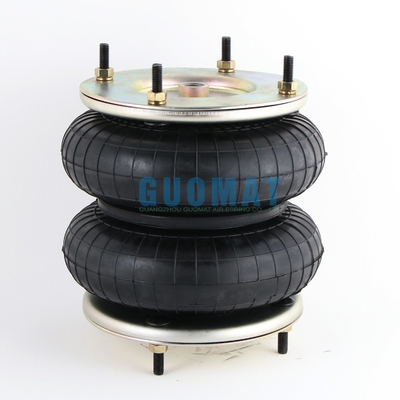

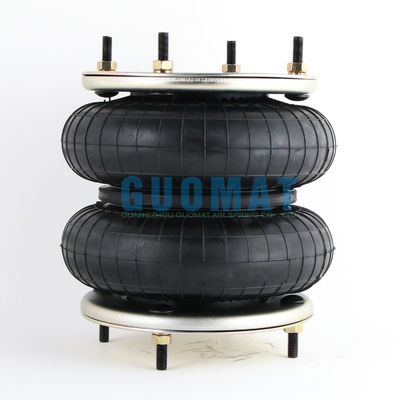

Firestone Air Rubber Bellow W01-R58-4055 Air Spring Suspension 4×M10 Studs

2B8×2T Air Spring Information

Bottom Plate Alignment: Parallel

Bottom Plate Center To Center Diameter: 156 mm

Bottom Plate Diameter: 184 mm

Bottom Plate Hole Quantity: 4

Bottom Plate Type: Steel

Top Plate Alignment: Parallel

Top Plate Center To Center Diameter: 156 mm

Top Plate Diameter: 184 mm

Top Plate Hole Quantity: 5

Top Plate Type: Steel

Bellow Maximum Diameter:230 mm

Expanded Height: 72 mm

Compressed Height: 225 mm

Spring Type: Double Convoluted

Air Inlet: 1/2 BSP

Nut/Blind Nuts Type: 4×M10

Alternative Items

FIRE-STONE NO.	W01-R58-4055, W01R584055, W01/R58/4055 w01-r58-4055, w01r584055, 4055, 8x2 , 8''x2 , 8'x2
FRUEHAUF NO.	F48054, M80A04, F 48054, M 80A04
LOHR NO.	A06030604, A 06030604
SAMRO NO.	H2500021, H2500188, H 2500021, H 2500188, H 250 0021, H 250 0188
SISU TRUCK NO.	1531110600, 153 111 0600
DUNLOP NO.	SP1490, SP918, SP 1490, SP 918
CONTITECH NO.	FD 138-18 DS, FD138-18 DS, FD128 18 DS, FD 138 18 DS
NORGREN NO.	M/31082, M 31082, M31082
PARKER NO.	9109011

Product Applications

Gate Valve Operator
Glue Coating Machine
Web Tightening Tool
Stripper
Tool Spring Driver
Quenching Drain Driver
Paper Mill
Pickling Tank Driver

FAQ

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
