Double Convoluted Air Shock Suspension 2S 70-13 BUS Truck Air Spring High Durable

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2S 70-13

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2S 70-13	Bellows Type:	Double Convoluted
Function:	Reduce Shock	Condition:	Brand New
Trademark:	GUOMAT	Material:	Rubber And Steel
Operating Temperature:	-30℃ To +70℃	Design Height:	157 MM
Highlight:	2S 70-13 BUS Truck Air Spring , Double Convoluted Truck Air Spring

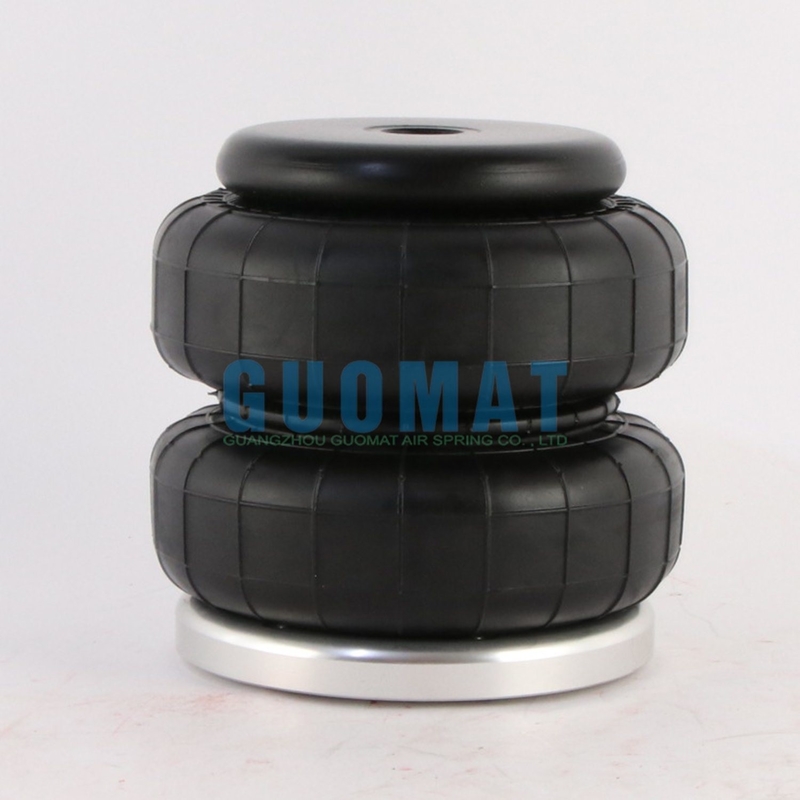

Double Convoluted Air Shock Suspension 2S 70-13 BUS Truck Air Spring High Durable

2S 70-13 Air Spring Information

Design Height	157mm
Gas Hole Diameter	22mm

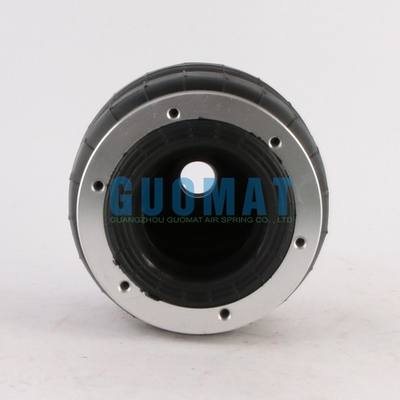

Bottom Flange Blind Nut	6 Pcs X 1/4

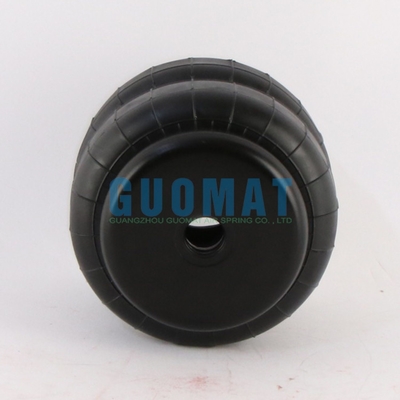

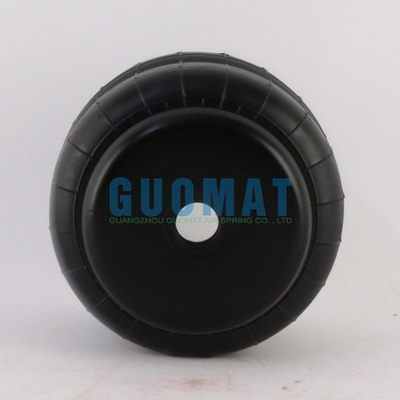

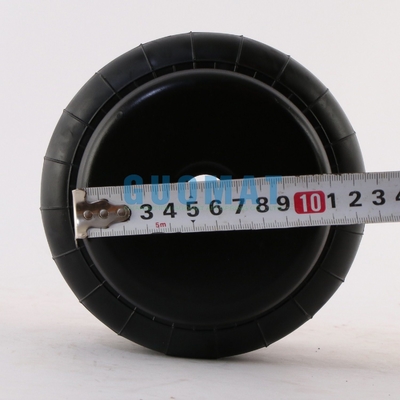

Top Cover Plate Diameter	113mm

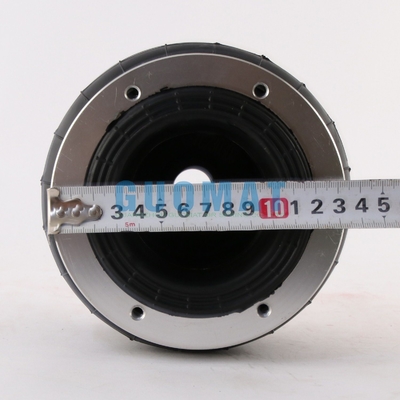

Bottom Diameter	134mm
Distance Between Blind Nuts	114.5mm
Bottom Nominal Diameter	80mm
Height of Flange Ring	15mm

Advantageous Features of Air Suspension

1. Shock absorption effect is better, can effectively improve the comfort of the whole car
The airbag in the air suspension system has variable stiffness characteristics, which can rapidly reduce the vibration of the vehicle driving process and improve the ride comfort of the vehicle. In the glass, precision instruments and other goods transportation with high requirements for shock absorption, the advantages of airbag suspension are especially obvious.

2. Effectively reduce fuel consumption, improve economic efficiency
Air suspension reduces fuel consumption mainly in two aspects, the first aspect is that when the vehicle equipped with air suspension in the unloaded state, the axle can be lifted up to reduce friction, thereby reducing fuel consumption, the other aspect relies on the airbag has a good shock absorption, in the bumpy sections of the air suspension models can be effective in reducing the frequency of gear shifting and acceleration and deceleration, thereby reducing fuel consumption.

3. Protect the vehicle's own parts, extend the life of the vehicle
The air suspension system can effectively reduce the impact vibration on the body caused by the uneven road surface through the vibration isolation of the airbag, thus improving the service life of the chassis and body electrical system.

4. Facilitate dumping transportation, effectively improve the transportation efficiency
When the tractor equipped with air suspension in the dumping transportation, can be adjusted through the height of the airbag to quickly realize the off-hanging, pick hanging, improve the efficiency of transportation.

GUOMAT Double Convoluted Rubber Air Spring

GUOMAT NO.	OEM NO.	Gas Hole	Rubber Bellow(mm)	The Stroke(mm)
2B4060	FD 40-10	G1/8	125	145
2B7070	W01-095-0111	G1/4	146	162
2B8X4	W01-358-7325	M12X1.5	189	177
2B5020	FD 120-17	G3/4	215	75-230
2B5235	W01-M58-7894	ZG1/2	224	210
2B6926	W01-358-6926	1/4NPTF	224	75-260
2B6910	W01-358-6910	1/4NPTF	224	75-260
2B6927	FD 200-25 453	1/4NPT	262	81-325
2B6943	FD 200-25 426	1/4NPTF	262	79-325
2B6946	FD 200-25 463	1/4NPTF	262	95-325
2B7679	W01-M58-7679	1/4NPTF	262	240
2B6948	W01-358-6948	1/4NPTF	232.5	235
2B6951	W01-358-6951	1/4NPTF	232.5	240
2B6891	FD 200-19	M14X1.5	232.5	232
2B12X2	FD 412-18	G1/2	300	186
2B7400	FD 330-22 313	G1/4	325	81-305
2B7405	W01-358-7405		325	81-305
2B7406	W01-358-7406	1/4NPT	325	104-305
2B7550	W01-358-7550		343	104-363
2B7555	FD 331-26 480		343	104-363
2B53022	W01-358-7136	Rc1 1/4	385	90-300
2B53035	FD530-35 530	3/4NPT	406	104-391
