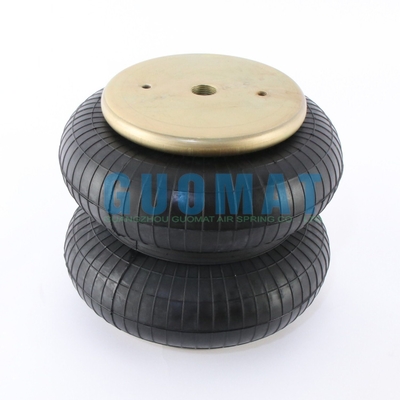

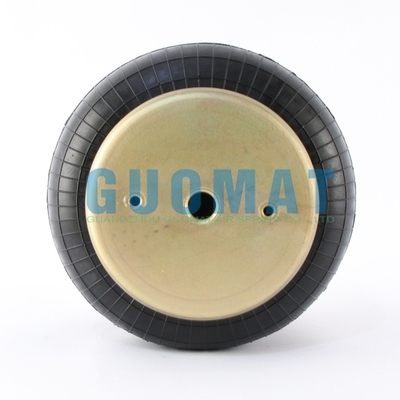

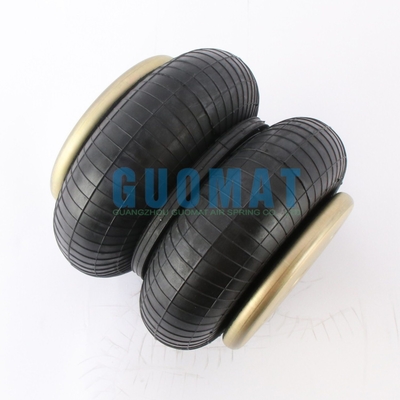

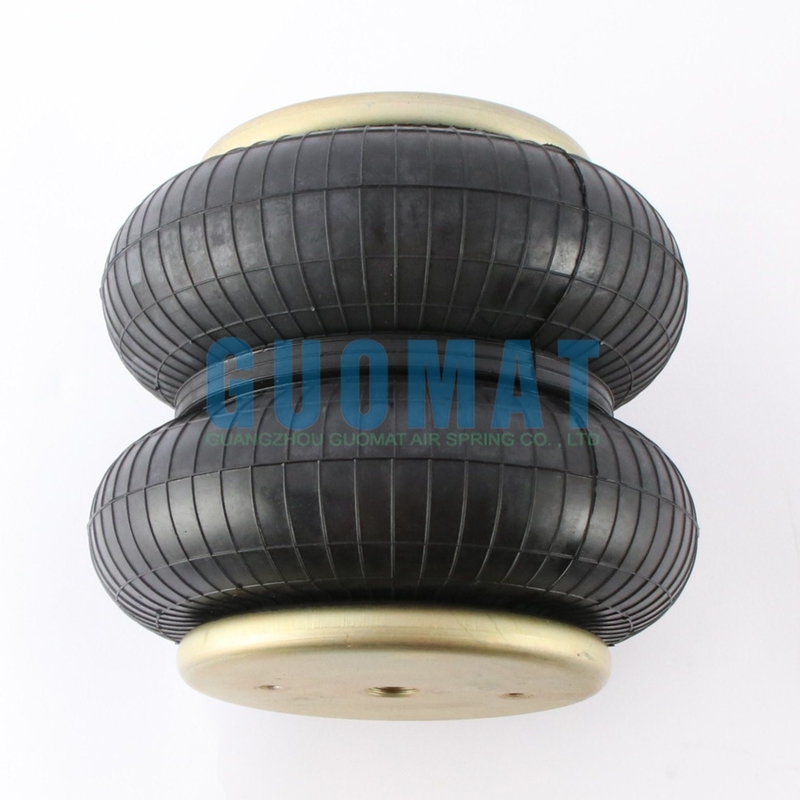

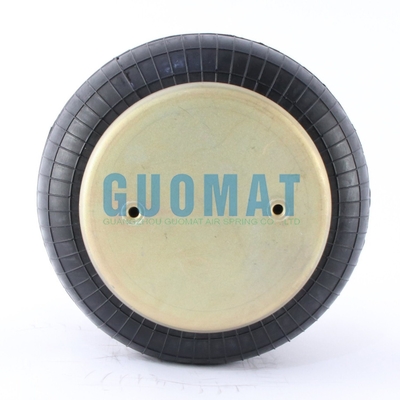

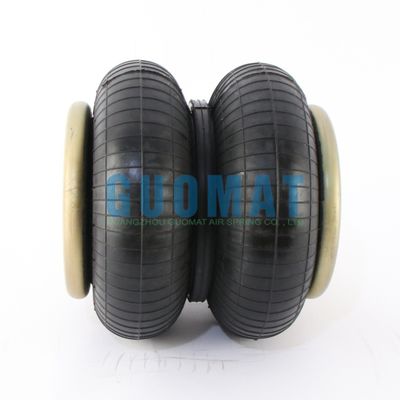

Firestone Double Convoluted Air Spring W01-358-7325 Air Actuator Air Lift Suspension

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7325

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NumbW01-358-7325er:	2B7325	Spring Material:	Rubber And Steel
Condition:	Brand New	Trademark:	GUOMAT
Application:	Industrial Machine	Operation:	Gas-Filled
Compressed Height:	2.8 Inches	Maximum Height:	10 Inches
Highlight:	Double Convoluted Air Spring W01-358-7325 , Firestone Double Convoluted Air Spring

Firestone Double Convoluted Air Spring W01-358-7325 Air Actuator Air Lift Suspension

Product Details

Bottom Plate Alignment	Parallel
Bottom Plate Center To Center Diameter	2.75 Inches
Bottom Plate Diameter	5.31 Inches
Bottom Plate Hole Quantity	2
Bottom Plate Type	Steel
Top Plate Alignment	Parallel
Top Plate Center To Center Diameter	2.75 Inches
Top Plate Diameter	5.31 Inches
Top Plate Hole Quantity	3
Top Plate Type	Steel
Bellow Maximum Diameter	8.6 Inches
Expanded Height	10 Inches
Compressed Height	2.8 Inches
Spring Type	Double Convoluted
Air Inlet	1/4 NPTF
Nut/Blind Nuts Type	2×3/8-16UNC

OEM Number

Firestone Air Spring

W01-358-7325, W01 358 7325, W013587325

WO1-358-7325, WO1 358 7325, WO13587325

Contitech Air Spring

FD 120-20 509, FD120-20 509, FD120 20 509, FD12020 509

Goodyear Air Spring

2B8-550, 2B8 550, 2B8550, 2B8-153, 2B8 153, 2B 8-153

579-92-3-530, 579 92 3 530, 579923530

Triangle Air Spring

6392, 4509

American Carrier Air Spring

8003-006, 8003 006

Mac-k Truck Air Spring

227QS-32, 227QS 32, 227QS32, 57QK1113

E.R.F Air Spring

1398567

Sauer Air Spring

P10-754, P10 754, P10754

SAF Holland Air Spring

57007325

Ridewell Air Spring

1003587325C

Watson&Chalin Air Spring

AS-0030, AS0030, AS 0030

Hendrickson Air Spring

S-14395, S 14395, S14395, NA1821, NA 1821

Terberg Air Spring

21065660

Firestone Style 26 Other OEM Numbers

Style 26 Two Ply ellows	Blind nuts, 1/4 NPT	W01-358-7325, W01 358 7325, W013587325 WO1-358-7325, WO1 358 7325, WO13587325
	Blind nuts, 3/4 NPT	W01-358-7327, W01 358 7327, W013587327 WO1-358-7327, WO1 358 7327, WO13587327
	Countersunk steel bead rings, 1^3/4 bolts, nuts, washers	W01-358-7333, W01 358 7333, W013587333 WO1-358-7333, WO1 358 7333, WO13587333
	Rubber bellows only	W01-358-0142, W01 358 0142, W013580142 WO1-358-0142, WO1 358 0142, WO13580142

Product Applications

Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press
