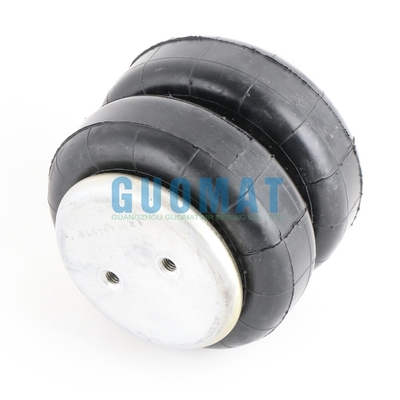

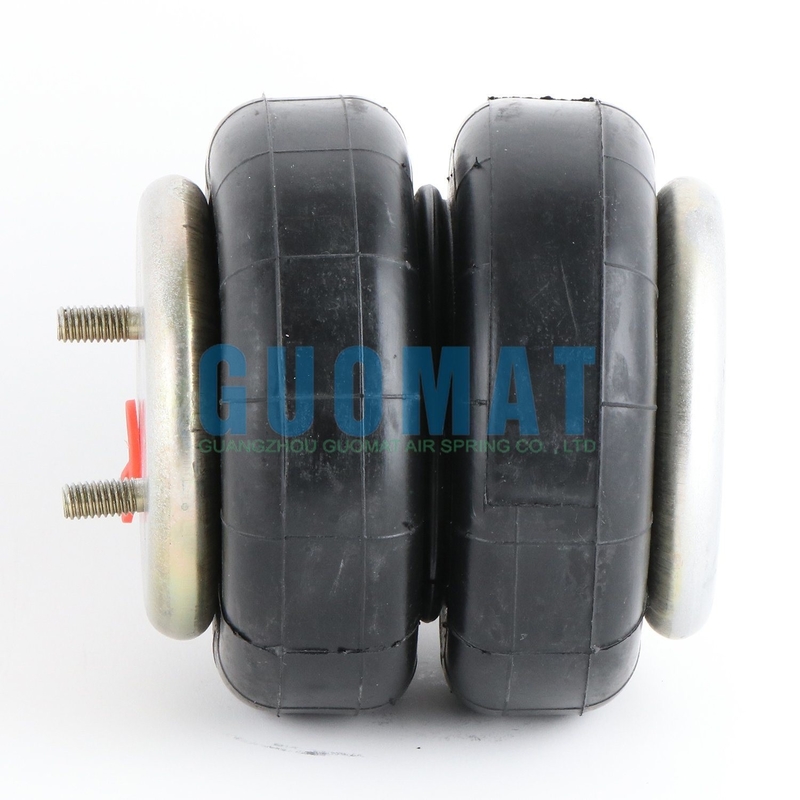

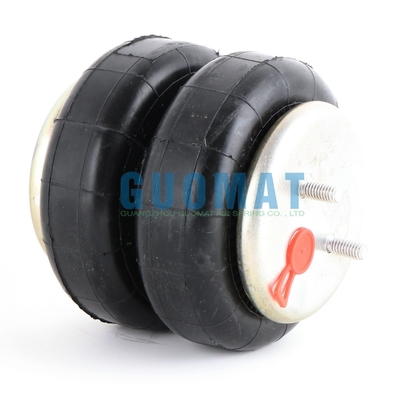

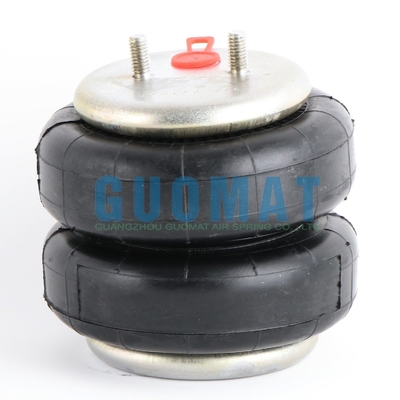

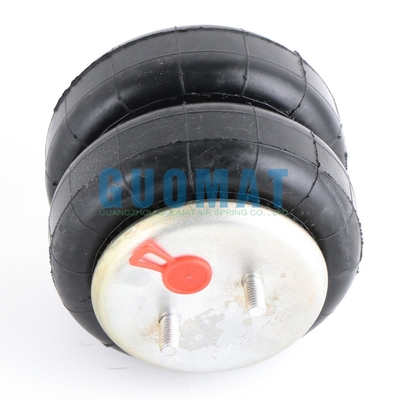

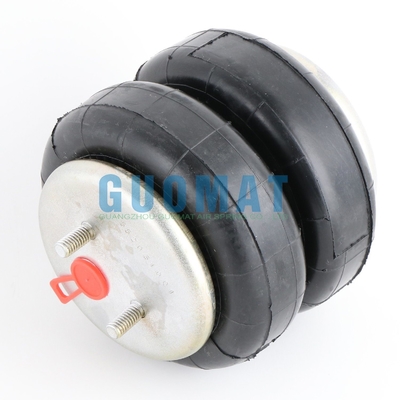

Industrial Air Bellow 255-1.5 Air Shock Absorber Double Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B5204

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B5204	Structure:	Double Convoluted
Quality:	100% Tested	Brand Name:	GUOMAT
Warranty:	12 Months	Air Hole:	3/8 NPT
Bellows Max. Dia.:	165 MM	Total Stroke:	110 MM
Highlight:	Industrial Double Convoluted Air Spring , 165MM Double Convoluted Air Spring

Industrial Air Bellow 255-1.5 Air Shock Absorber Double Convoluted Air Spring

Product Introduction

GUOMAT Air springs are extremely durable, precisely engineered, and cost-effective for a variety of actuation and vibration isolation applications. With their proven design, fabric-reinforced neoprene or natural rubber flex member construction, and corrosion-resistant end retainers, air springs offer superior quality and performance. As isolators, air springs effectively reduce the harmful effects of vibration. They can simultaneously isolate vibration and adjust load height, allowing for consistent vibration isolation at varying loads.

Product Specification

Cover Plate
Top Cover Plate Diameter	111 mm
Bottom Cover Plate Diameter	111 mm
Gas Hole/Gas Fitting/Air Hole/Air Inlet
Gas Hole	3/8NPT
Nut/Blind Nuts
Top Cover Plate Screw (Nut) Tooth	2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate	44.5 mm
Bottom Cover Plate Screw (Nut) Tooth	2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate	44.5 mm
Rubber Bellows
Rubber Bellows MAX Diameter	165 mm
The Stroke	Min 65mm-Max 175mm

Product Core Competitiveness

1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.

2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.

3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.

4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.

FAQ

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
