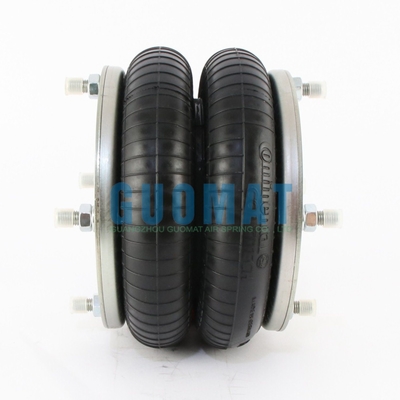

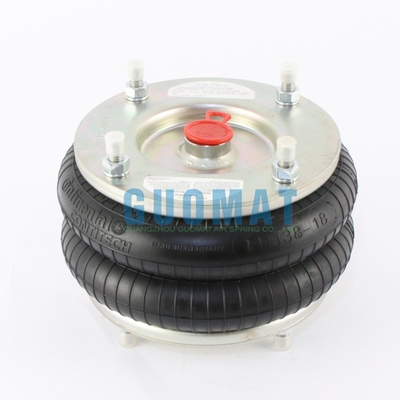

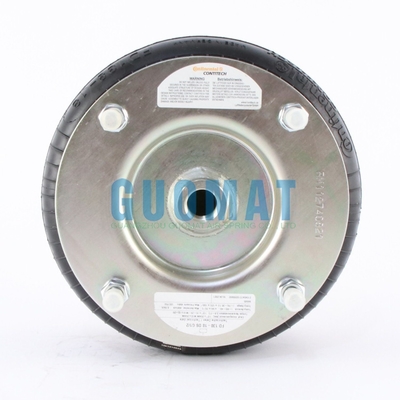

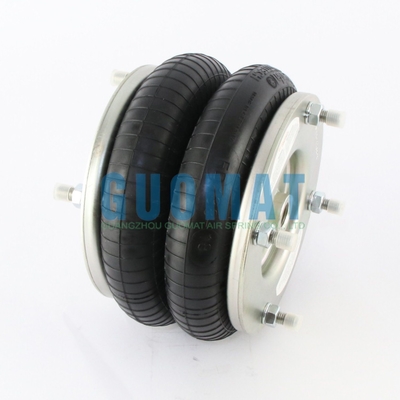

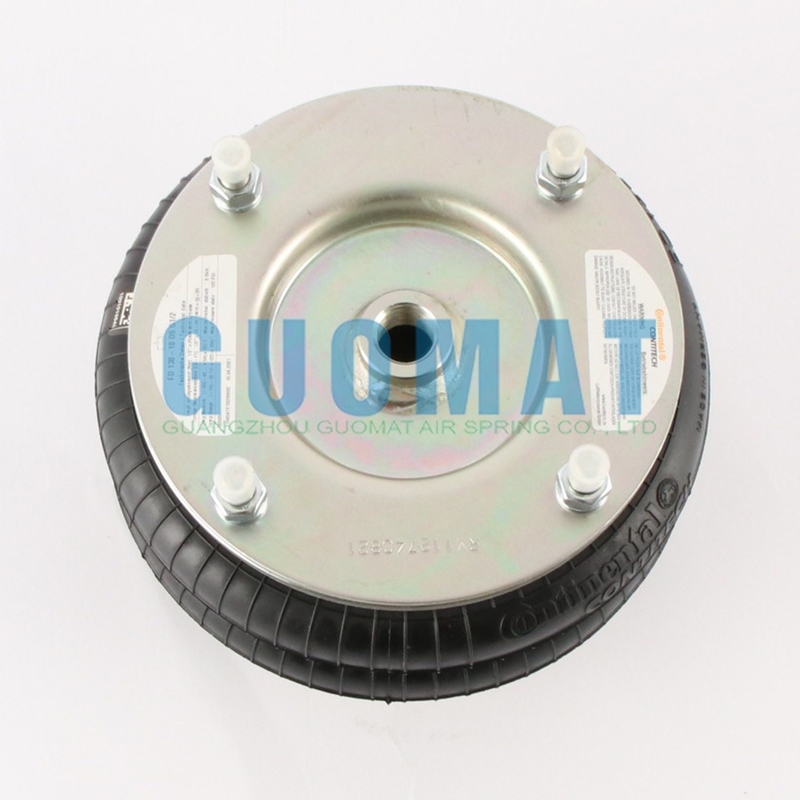

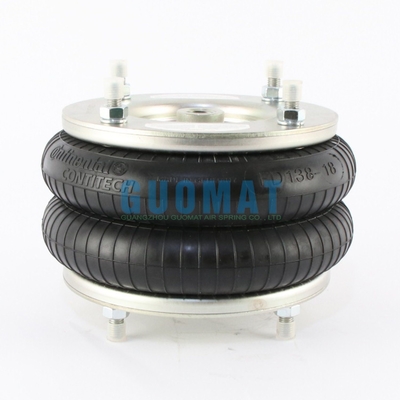

Industrial Air Spring FD 138-18 DS Contitech Double Convoluted Air Suspension

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B8×2T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product No.:	2B8×2T	Bellows Type:	Double Convoluted
Condition:	Brand New	OEM Number:	Contitech FD 138-18
Brand Name:	GUOMAT	Operation:	Gas-Filled
Air Inlet:	G 1/2	Total Stroke:	175 MM
Highlight:	Contitech Industrial Air Spring , Industrial Air Spring Double Convoluted

Industrial Air Spring FD 138-18 DS Contitech Double Convoluted Air Suspension

GUOMAT 2B8×2T Air Spring Information

Cover Plate
Top Cover Plate Diameter: Ø184mm

Bottom Cover Plate Diameter: Ø184mm

Gas Hole/Air Fitting
Gas Hole: G1/2

Screw/Blind Nut
The Screw of the Top Cover Plate: 4XM10

The Screw of the Bottom Cover Plate: 4XM10

The Screw Height: 25mm

The Distance Between the Screws of the Top Cover Plate: Ø155.5mm

The Distance Between the Screws of the Botttom Cover Plate: Ø155.5mm

Rubber Bellow
The Rubber Bellow Diameter: Ø230mm

The Max. Height: 250mm

The Min.Height: 75mm

Cross References

Airkraft Order No.: 113060

Airkraft Style: 2B-200

Airtech No.: 140534

Airtech Ref.: A2 200/K01

Contitech: FD 138-18 1/2 M10

ContiTech Order No.: 66505

Dunlop FR: SP1490

Dunlop FR Bellows: 8″ x 2

Dunlop UK (Pneuride): PNP 30550 01 12

Dunlop UK (Pneuride) Bellows: 8″ x 2

Firetone No.: W01-R58-4055

Firestone Bellows No.: 8×2

Goodyear: 2B8-2150

Goodyear Flex No.: 578-92-3-2150

Norgren: M/31082

Oria: 8 x 2

Parker: 9109011

Parker Type: 8 x 2

Pneumatis: DB0828

Pneumatis Bellows: 8″ x 2

Prime-Ride New: 2B8-2150

Prime-Ride New Flex No.: 578-92-3-2150

Sopra: DB-0828

Sopra Type: 8″ x 2

Springride: 2B8-2150

Springride Flex No.: 8″x2

Springride Flex: 578-92-3-2150

Trelleborg Rubena: 8″ x 2

Weforma: WBZ-G 350

What Are The Advantages of Our Shock Absorbers

Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

Air Spring Installation

1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
