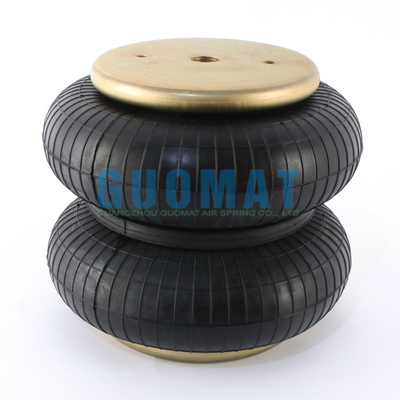

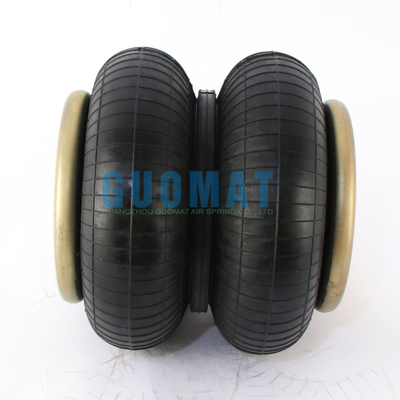

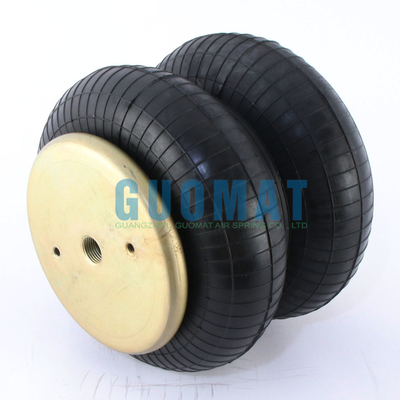

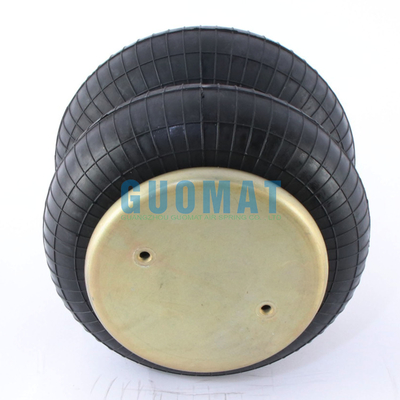

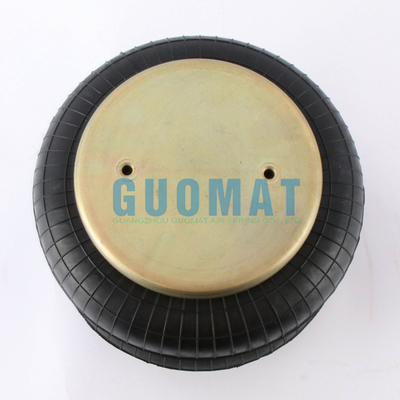

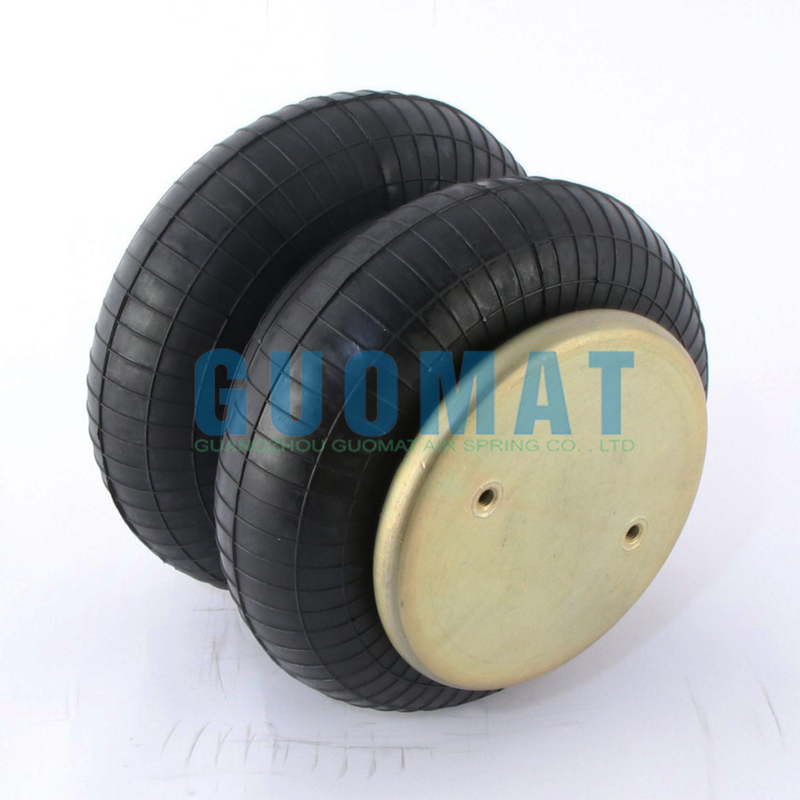

Firestone Pneumatic Bellow W01-358-7025 Double Convoluted Air Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7025

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B7025	Bellows Structure:	Double Convoluted
Function:	Reduce Shock	Condition:	Brand New
Brand Name:	GUOMAT	Operation:	Gas-Filled
Total Stroke:	4 Inches	Air Hole:	1/4 NPT
Highlight:	Double Convoluted Air Shock Absorber , W01-358-7025 Double Convoluted Air Shock Absorber

Firestone Pneumatic Bellow W01-358-7025 Double Convoluted Air Shock Absorber

Product Specifications

Nut/Blind nuts	Nut length: #
	Number of screws on the top cover: 3
	Number of bottom cover screws: 2
	Top cover plate screw (nut) tooth: 3/8-16UNC
	Top cover screw center distance: 1.75 Inches
	Screw (nut) teeth of the bottom cover plate: 3/8-16UNC
	Center distance of bottom cover plate screw: 1.75 Inches
Air hole/air inlet/air connector	Air hole/air inlet: 1/4 NPT
Cover	Top cover diameter: 4.5 Inches
Cover	Diameter of bottom cover: 4.5 Inches
Rubber bellows	Natural diameter of rubber bellows: 6.4 Inches
	Buffer block/buffer block
	Unbuffered block
	Waist ring/waist ring
	Strap ring: no strap ring

Style 25 Fire-stone Airstroke

W01-358-7025	Blind nuts, 1/4 NPT
W01-358-7047	Blind nuts, 3/4 NPT
W01-358-7035	Blind nuts, 1/4 NPT both ends
W01-606-7025	3/4NPT bothends(no blind nuts)
W01-358-0030	Socket head aluminum bead rings(bolts,nuts,washers not included,use cap screws)
W01-358-7030	3/4 NPT(only)upper plate, blind nuts lower plate
W01-358-0319	Rubber Bellows only

GUOMAT Air Spring Information

Pneumatic actuators are specifically engineered for machines, devices, and vehicles where the elimination of vibrations and shocks is critical. They find application in various scenarios, including the suspension of seats, bus axles, trucks, trolley-buses, tractors, trains, and trams.
Air springs are utilized to resiliently mount machines and devices that generate shocks and vibrations, which are transmitted through their foundation to the surrounding environment. Examples include textile looms, conveyors, impact hammers, and forging presses. These springs are also ideal for isolating laboratory instruments from vibrations. Additionally, they are employed in suspending truck trailers and caravans. They are also commonly used in pneumatic lifts, such as those found in car repair shops. Operating as a single linear air motor is another frequent application.
The benefits of using pneumatic actuators and air springs include vehicle and cargo protection, reduced tire wear, lower fuel consumption, minimal maintenance costs, and an extended service life.
It is important to note that the rubber used in the bellows is not resistant to petroleum products such as oil, diesel, gasoline, and kerosene. In the event of contamination by any of these substances, it is recommended to rinse the affected area with warm water and wipe it dry.

Air Spring Main Data

10 sizes, diameters 70-660 mm (i.e. 2¾"-26")
Strokes from 65 to 430 mm
Single, double or triple convolutions
Angular misalignment: 15° max.
Axial misalignment: 10 mm max.
High thrust and frictionless movement
Maintenance free
