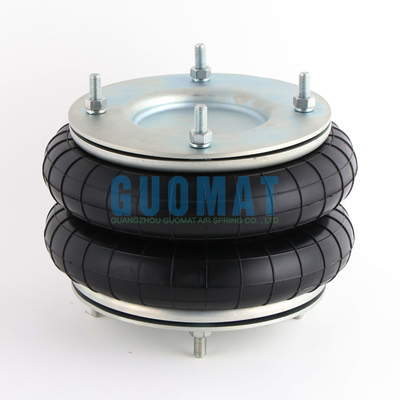

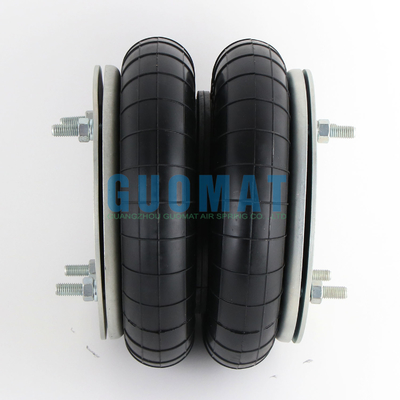

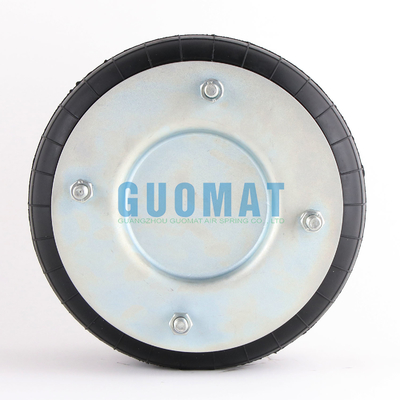

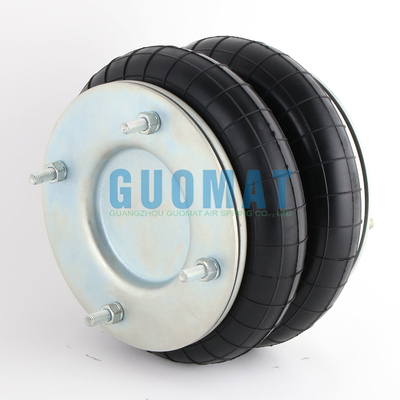

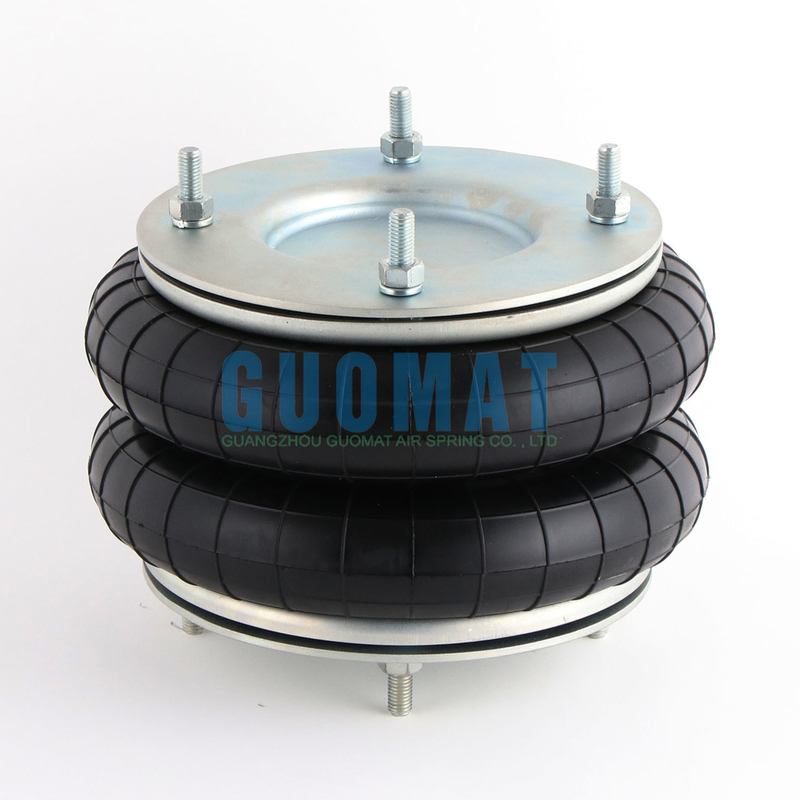

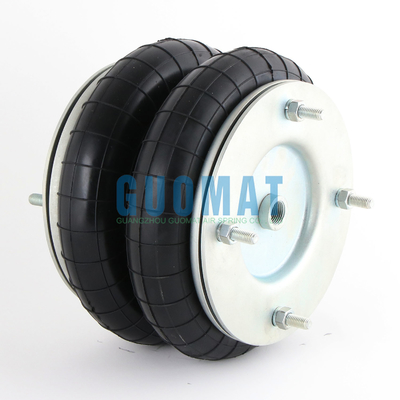

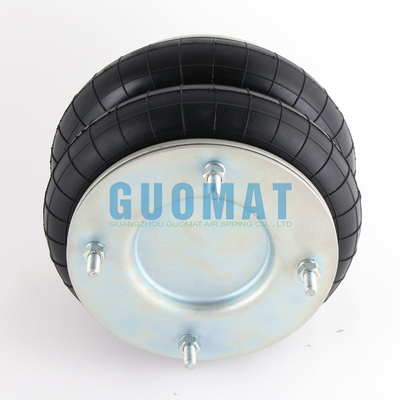

Industrial Air Spring W01-R58-4058 Firestone Air Suspension 1/2 BSP Air Inlet

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B10X2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B10X2	Spring Material:	Rubber And Aluminum
Bellows Type:	Double Cylinder	Condition:	Brand New
Dunlop:	SP1538	Trademark:	GUOMAT Air Spring
Warranty:	1 Year	Applications:	Industrial Machine
Highlight:	Industrial Air Spring W01-R58-4058 , Firestone Industrial Air Spring

Industrial Air Spring W01-R58-4058 Firestone Air Suspension 1/2 BSP Air Inlet

2B10×2 Technical Datas

Rubber Bellows Max. Width	254 mm
Screws Height	27 mm
Minimum Height	70 mm
Top/Bottom Cover Plate Diameter	210 mm
Air Hole/Air Inlet/Gas Hole/Gas Fitting	1/2 BSP
Nut/Blind Nuts	4×M10×1.5
Distance Betweeen Screws	181 mm

2B10×2 Refer Number

Firestone Air Spring	W01-R58-4058, W01 R58 4058, W01R584058 WO1-R58-4058, WO1 R58 4058, WO1R584058
Dunlop Air Spring	SP1538, SP 1538
Contitech Air Spring	FD 210-22 1/2 M10, FD210-22 1/2 M10, FD21022 1/2 M10 FD210 22 1/2 M10, FD 21022 1/2 M10, FD 210 22 1/2 M10
Norgren Air Spring	M 31102(10×2), M31102(10×2), M/31102(10×2)
Samro Air Spring	H2500189, H2500021
Airkraft Air Spring	2B-255 113100, 2B 255 113100, 2B255 113100
Granning Air Spring	15807

2B10×2 Advantages

Long service life
Maintenance-free
Highly operational safety
Frictionless
Lateral misalignment possible
Chemical resistance

GUOMAT Air Spring Applications

Pulp and paper industry
Lumber mills
Lift tables
Tooling and machining system
Energy production
Tooling robotics and automation
Component assembly
Automotive assembly
Medical equipment
Conveyor systems
Packaging
