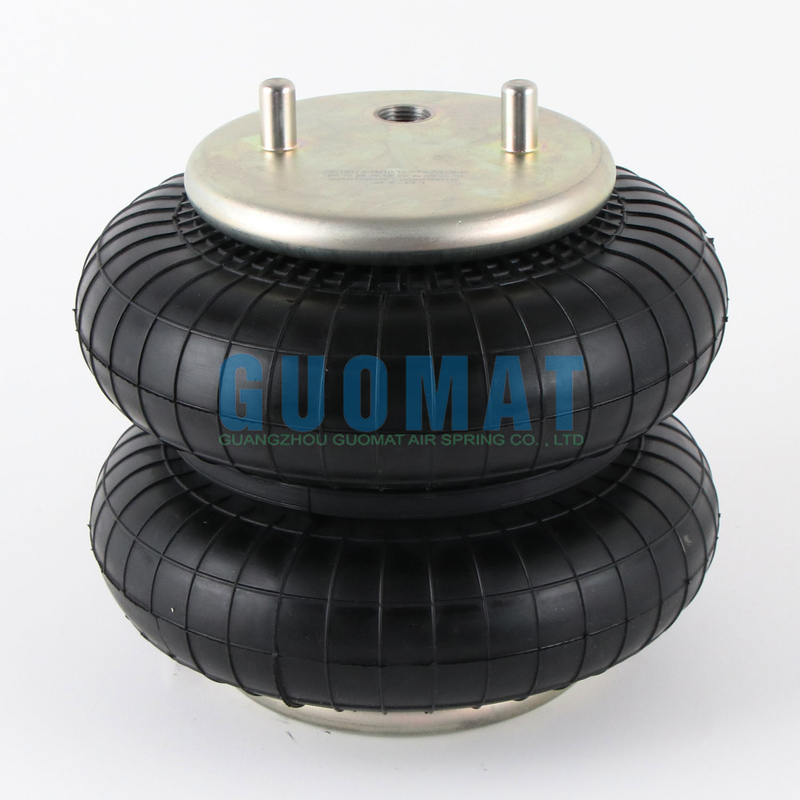

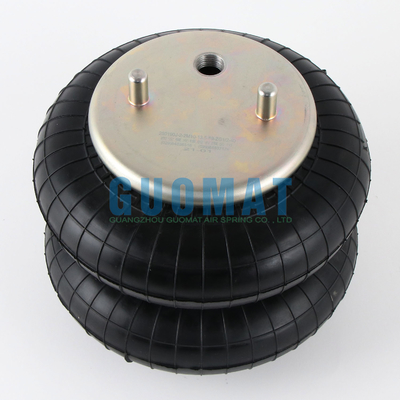

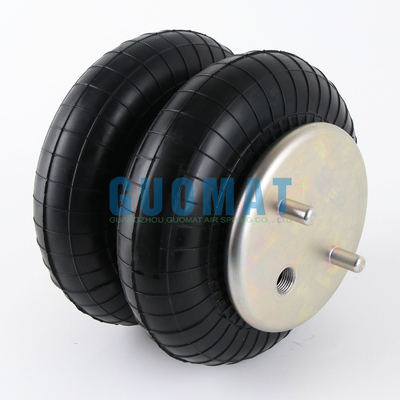

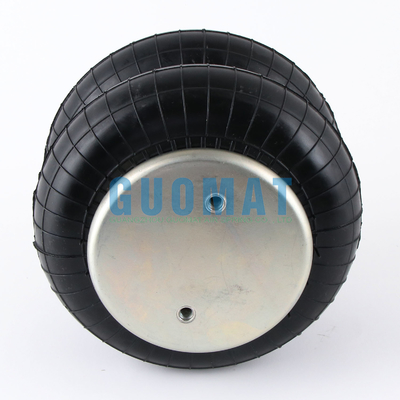

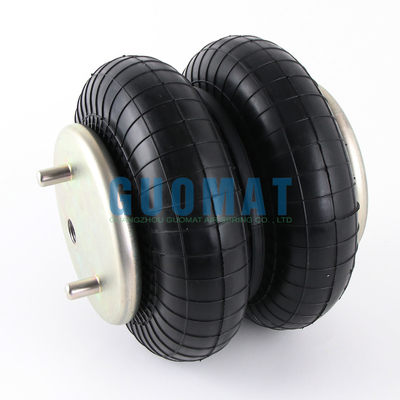

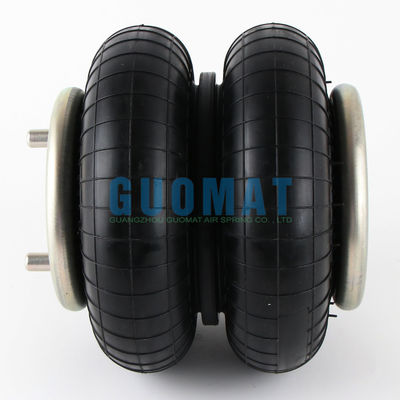

Double Convoluted Air Spring GUOMAT 250190-2 Air Shock Absorber For Punching Press

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	250190-2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	250190-2	Material:	Rubber And Steel
Condition:	Brand New	Brand Name:	GUOMAT
After-sales Service:	1 Year	Type:	Gas-Filled
Function:	Shock Absorption	Type Of Goods:	Air Spring/Air Bags/Air Ballons
Highlight:	250190-2 Double Convoluted Air Spring , Punching Press Double Convoluted Air Spring

Double Convoluted Air Spring GUOMAT 250190-2 Air Shock Absorber For Punching Press

Product Introduction

GUOMAT Air Bellows are designed for customer applications where conventional pneumatic actuators are either not powerful enough or too bulky, or where environmental conditions would be demanding in maintenance. The primary market sector is industrial and includes the paper, food, textile and building industries amongst others.
In the automotive sector bellows are supplied as part of ‘auxiliary air suspension’ or ‘air assist’ kits for motorhomes. For this application, the bellow works alongside the existing steel suspension to provide for improved stability and comfort, reduced body roll and levelling capability among other benefits.

Product Specification

Top Cover Plate Diameter	160 mm
Bottom Cover Plate Diameter	160 mm
Gas Hole / Air inlet	G1/4 / G3/4
Top Cover Plate Screw (Nut) Tooth	2XM10
Bottom Cover Plate Screw (Nut) Tooth	2XM8
Screw Center Distance of Top Cover Plate	89 mm
Screw Center Distance of Bottom Cover Plate	89 mm
Distance Between Air Hole and Screw	40 mm
Rubber Bellows MAX Diameter	263 mm
The Working Stroke	190 mm

GUOMAT Air Spring Characteristics

Features: Integrated casting process, strong airtight, leakproof, high surface density, burst resistance
Installation: Dimensions are the same as the original model, direct replacement without modification, easy to install
Quality: Using advanced technology improves product destruction, acid resistance, corrosion resistance, long service life
Design: Designed for comfortable suspension with high compression strength and excellent sound isolation to ensure driving comfort and safety

Applications

Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press

FAQ

Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
