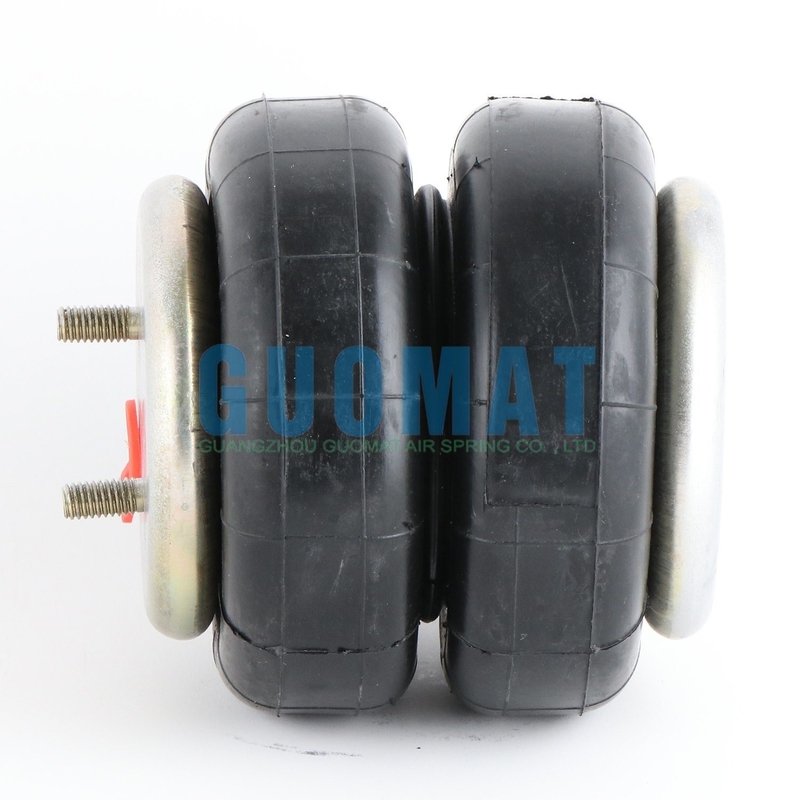

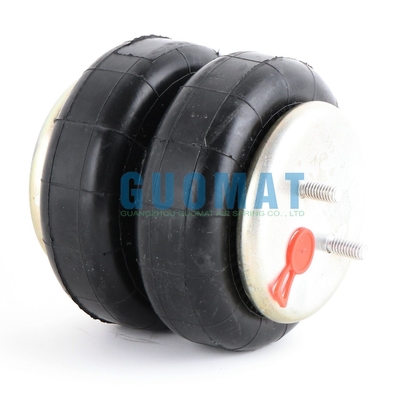

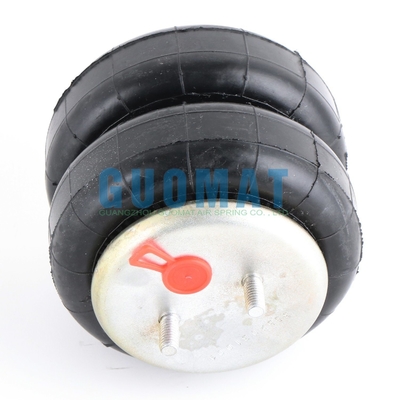

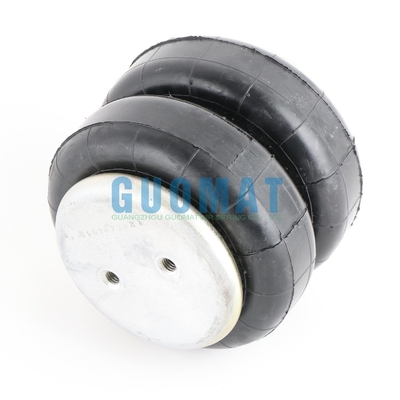

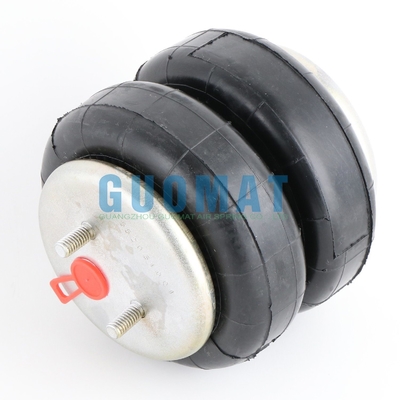

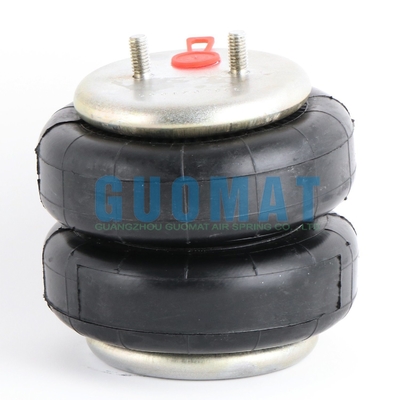

W01-M58-6105 Firestone Industrial Bellows Actuator 1/4 BSP Air Inlet

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6105

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6105	Spring Material:	Rubber And Steel
Structure:	Double Convoluted	OEM:	FD 70-13 1/4 M8
Trademark:	GUOMAT	GIGANT OEM NO.:	196027
Total Stroke:	127 MM	Compatibility:	Universal
Highlight:	Firestone Industrial Bellows Actuator , W01-M58-6105 Industrial Bellows Actuator

High Quality W01-M58-6105 Firestone Industrial Bellows Actuator 1/4 BSP Air Inlet

Product Description

At Air Springs, we take pride in providing high-quality air shocks that are designed to meet the needs of all car owners. Our air suspensions are designed with advanced technology and are engineered to provide superior performance in a wide range of applications. Our air shock absorbers are designed to provide superior load capacity and durability, while still providing a comfortable and safe ride. With our air spring assembly, you can rest assured that your vehicle will have a smoother and safer ride, no matter what the conditions are.

Product Specifications

Nut/Blind nuts
Nut length: #
Number of screws on the top cover: 3
Number of bottom cover screws: 2
Top cover plate screw (nut) tooth: M8
Top cover screw center distance: 44.5 MM
Screw (nut) teeth of the bottom cover plate: M8
Center distance of bottom cover plate screw: 44.5 MM
Air hole/air inlet/air connector
Air hole/air inlet: 1/4 BSP
Cover
Top cover diameter: 107 MM
Diameter of bottom cover: 107 MM
Rubber bellows
Natural diameter of rubber bellows: 150 MM
Buffer block/buffer block
Unbuffered block
Waist ring/waist ring
Strap ring: no strap ring

OEM Numbers

Firestone Air Suspension

W01-M58-6105, W01 M58 6105, W01M586105

WO1-M58-6105, WO1 M58 6105, WO1M586105

Contitech Air Suspension

FD 70-13 1/4 M8, FD70-13 1/4 M8, FD7013 1/4 M8

FD70 13 1/4 M8, FD 7013 1/4 M8, FD 70 13 1/4 M8

Gigant Air Suspension

196027, 700196027

Maintenance of The Air Springs, Vehicle Check-List

1. Check the air lines and devices of leakage and that they turns freely.
2. Check the bellows bearing for damage, correct fastening, deformation, sharp edges.
3. Check the shock absorbers for operation and impermeability as well as tightness and bearing.
4. Periodically, check nuts and bolts for proper torque. For specific recommendations see manufacturer's manual.
5. Check axle suspension, trailing arms and rods for wear.
6. Check height control valve to see that it is functioning properly. A properly maintained valve will save unneeded maintenance expense.
7. Routine inspection of all of the above according to manufacturer's instructions, will extend the life of your vehicle and reduce your overall maintenance expense.
