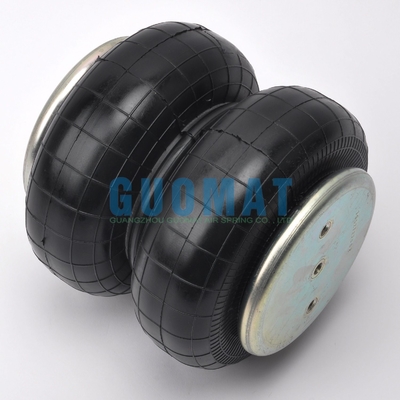

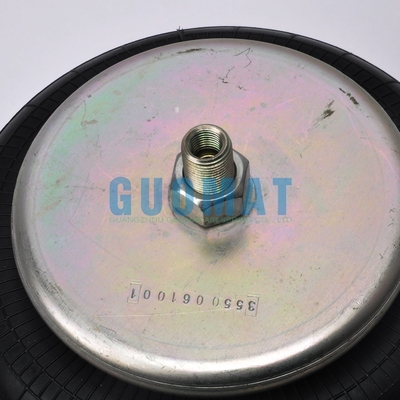

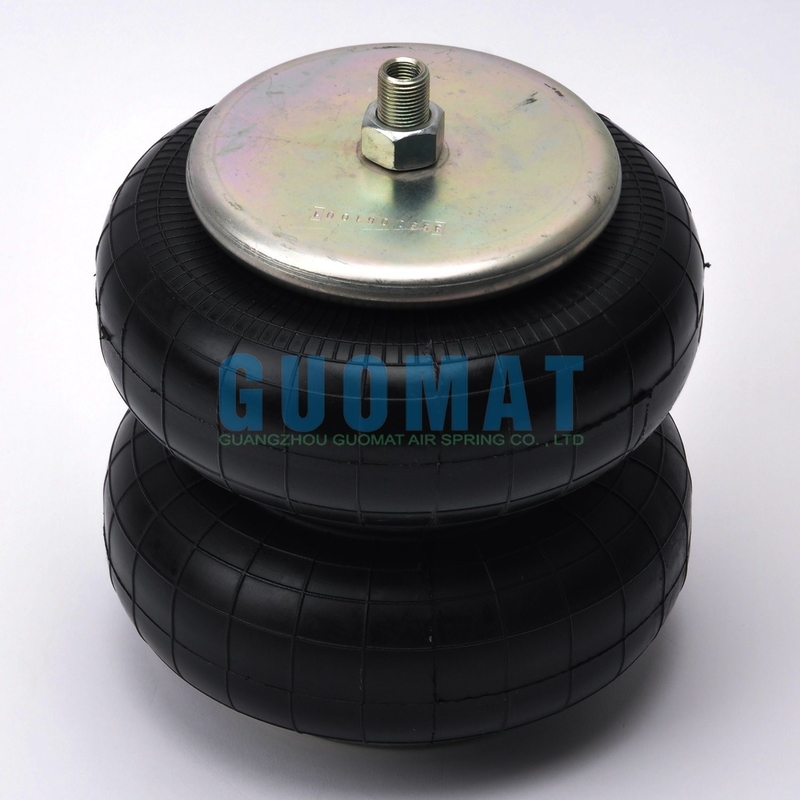

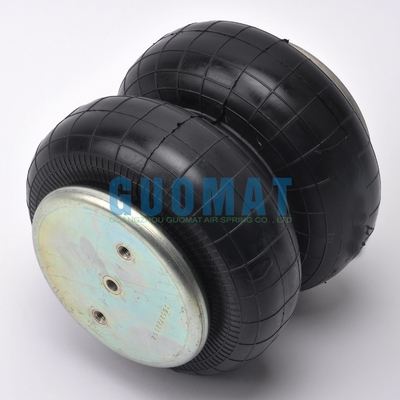

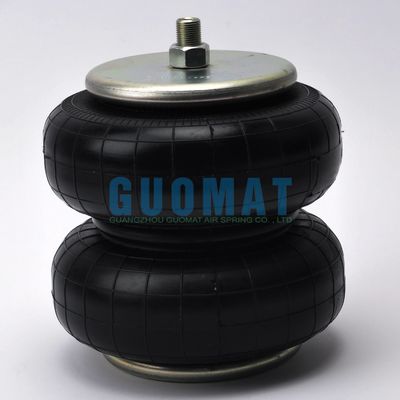

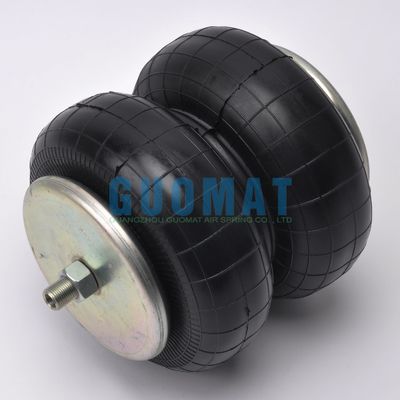

Goodyear Air Spring 2B9-218 Contitech FD 200-25 453 Double Convoluted Air Shocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6927

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6927	Structure:	Double Convoluted
Function:	Reduce Shock	OEM:	W01-358-6927
Trademark:	GUOMAT	After-sales Service:	1 Year
Minimum Height:	3 Inches	Maximum Height:	12.8 Inches
Highlight:	Goodyear Air Spring 2B9-218 , Goodyear Air Spring Double Convoluted

Goodyear Air Spring 2B9-218 Contitech FD 200-25 453 Double Convoluted Air Shocks

Product Information

Top/Bottom Cover Plate Width: 6.34 in.

Center to Center Distance: 3.5 in.

Screw Type: 2×3/8UNC

Minimum Height: 3 in.

Maximum Height: 12.8 in.

Rubber Bellow Max. Dia.: 10.24 in.

Space Required: 10.83 in.

Force F [Ibf]

Pressure p	[bar]	40	60	80	100	120
Height H [in.]	11.0	948	1470	2000	2550	3110
	10.0	1180	1780	2430	3060	3720
	9.0	1370	2070	2780	3510	4240
	8.0	1530	2280	3070	3850	4640
	7.0	1670	2490	3340	4200	5030
	6.0	1790	2680	3570	4470	5360
	5.0	1880	2800	3750	4700	5570
	4.0	1960	2910	3910	4900	5750

Manufacturer Part Number

Goodyear	2B9-218, 2B9218, 2B 9-218, 2B9 218, 2B 9218, 2B 9 218 578923206, 578923202
Firestone	W01-358-6927, W01 358 6927, W013586927 WO1-358-6927, WO1 358 6927, WO13586927
Contitech	FD 200-25 453, FD200-25 453, FD200 25 453 FD 20025 453, FD 200 25 453, FD20025 453, 161336
Triangle	6332, 4453
Reyco	12906-01, 1290601, 12906 01
Leland	Sc2072
SAF Holland	57006327
Tuthill Technology	1290601

Air Spring Operation

Due to their flexible construction the mounting of Air Bellows is less critical than with conventional pneumatic cylinders, which normally require rigid fixing and guidance and provide only one axis within a limit of 15° between faces. Additionally the axial location of the end plates may be off set by up to 10 mm.
When pressurised Air Bellows will follow the line of leased resistance. Accordingly care must be taken with the mounting geometry in angled applications.
When depressurised Air Bellows will fit in to surprisingly small spaces, especially useful for clamping or moving awkwardly
shaped or very heavy loads.
In operation it is recommended that the unit is not allowed to "bottom out" or achieve its maximum height. Various mechanical devices may be employed to achieve this.
