Lhf200212-2 Industrial Air Spring With Bottom And Top Cover Plate For Reduce Shock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	LHF200212-2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	LHF200212-2	Structure:	Double Convoluted
Car Make:	Universal	Function:	Shock Absorber
Quality:	100% Tested	Specification:	OEM Standard
Trademark:	GUOMAT	Type:	Gas-Filled
Highlight:	Lhf200212-2 Industrial Air Spring , Industrial Air Spring With Bottom

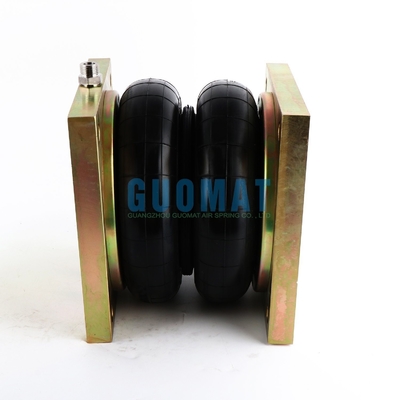

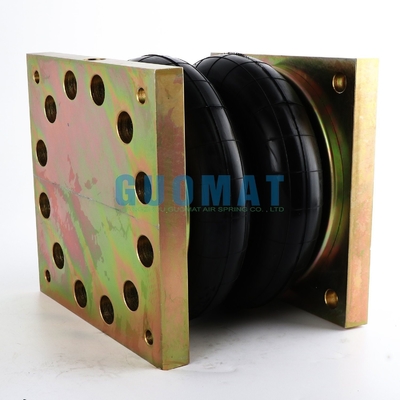

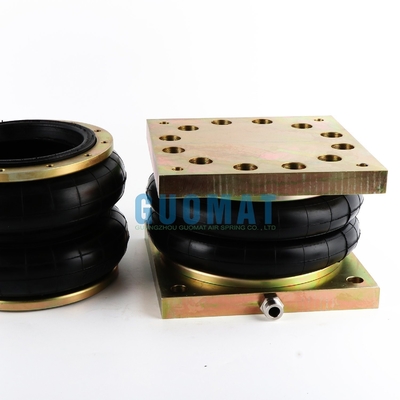

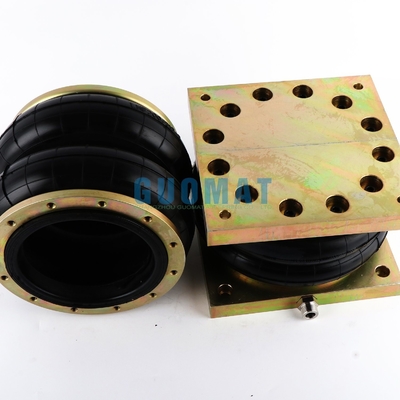

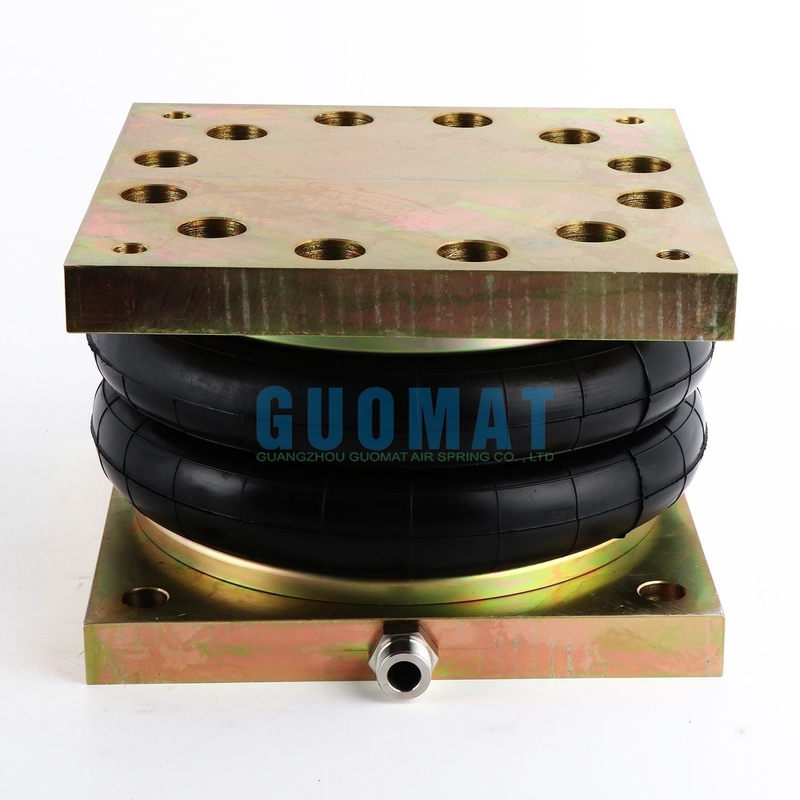

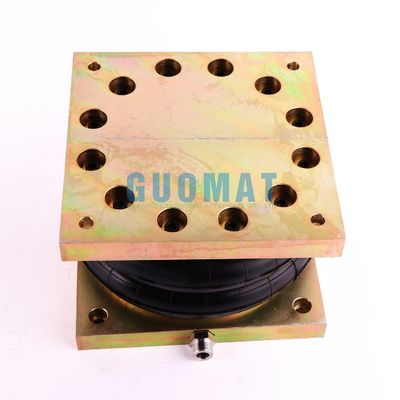

Lhf200212-2 Industrial Air Spring With Bottom And Top Cover Plate For Reduce Shock

Product Description

GUOMAT air springs are exceptionally robust, meticulously crafted, and highly cost-efficient, making them ideal for an extensive range of actuation and vibration damping applications. Featuring time-proven designs, these air springs incorporate fabric-reinforced Neoprene or Natural Rubber flex members and corrosion-resistant end retainers, ensuring superior quality and dependable performance across various industries. We provide a comprehensive selection of air spring types to address diverse actuation and isolation requirements. The portfolio includes Single, Double, and Triple Convoluted Bellows, Rolling Lobe, and Sleeve configurations, all available in multiple sizes. Additionally, these products are designed with end retainer styles tailored to seamlessly fit your specific installation needs.

Product Information

Design diameter	200mm
Maximum outer diameter	280mm
Front outer diameter	208mm
Design height	224mm
Stroke	90mm-250mm
Effective area	314.2cm²
Bearing capacity	1257KG-2199KG (0.4-0.7Mpa)

Refer Number

LHF200212-2
LHF 200212-2
LHF200/212-2
LHF 200/212-2

Double Convoluted Type Air Actuator We Can Offer

2B6-530	2B6-531
2B6-532	2B6-535
2B6-536	2B7-540
2B7-541	2B7-542
2B7-545	2B7-546
2B8-550	2B8-552
2B8-553	2B8-554
2B9-200	2B9-201
2B9-204	2B9-205
2B9-216	2B9-250
2B9-251	2B9-253
2B12-309	2B12-218
2B12-425	2B12-429
2B12-437	2B12-416
2B14-352	2B14-353
2B14-354	2B14-355
2B14-362	2B14-363
2B14-452	2B15-375
2B15-376	2B15-377
2B15-378	2B19-8433
2B22-8539

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
