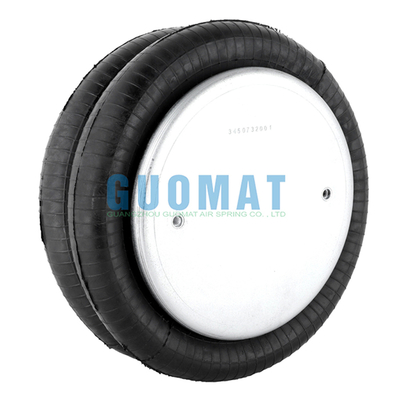

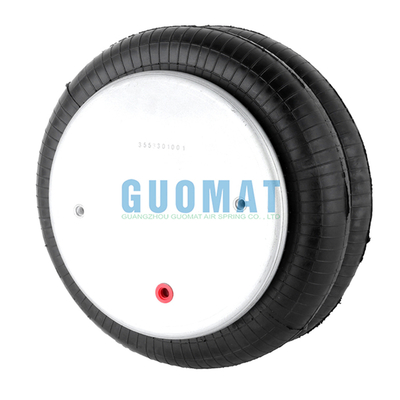

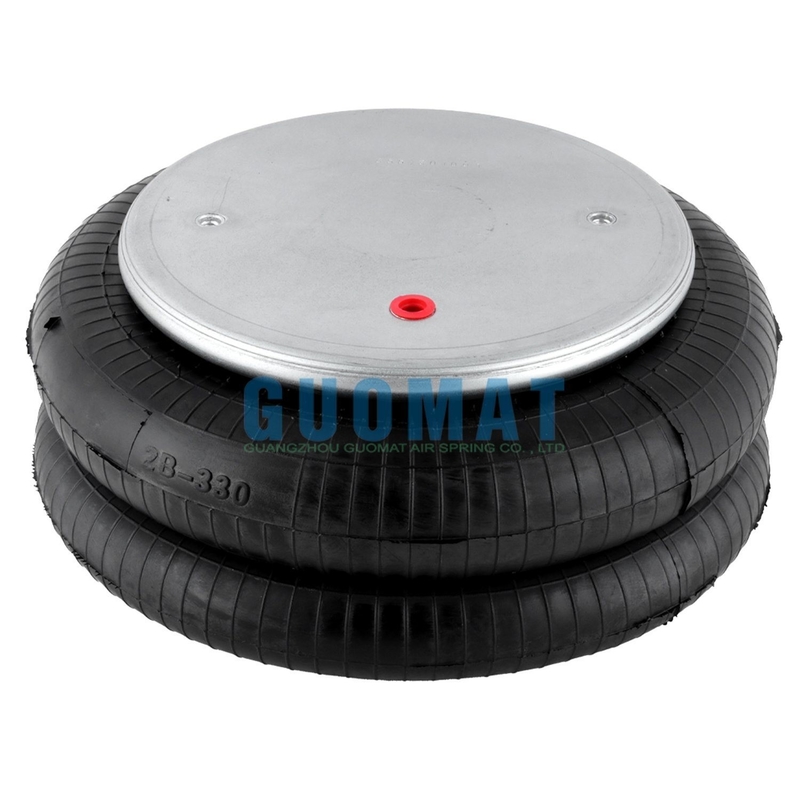

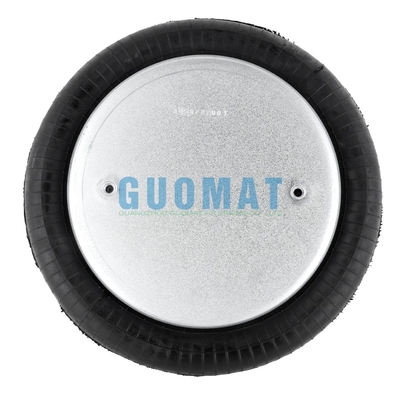

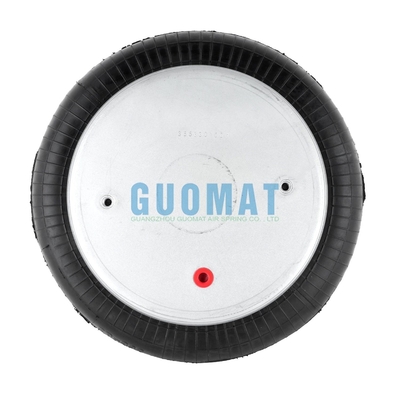

FD330-22 363 Contitech Air Shock Suspension Goodyear 2B12-425 High Performance

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6330

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6330	Bellows Structure:	Double Convoluted
OEM:	FD 330-22 363	Trademark:	GUOMAT
After-sales Service:	1 Year	Type:	Gas-Filled
Spring Type:	Air Spring / Air Suspension	Total Stroke:	224 MM
Highlight:	FD330-22 363 Contitech Air Shock , 2B12-425 Air Shock Suspension

FD330-22 363 Contitech Air Shock Suspension Goodyear 2B12-425 High Performance

Product Introduction

The crimped assembly represents a highly durable construction method designed to enhance the air actuator's structural stability and dependability. By improving its capacity to endure challenging operational conditions over extended periods, this design ensures long-lasting performance and resilience. The convoluted bellow, manufactured using premium-grade natural rubber, delivers outstanding dynamic functionality. Its superior flexibility and adaptability enable the actuator to cater to a wide range of industrial and commercial applications, offering exceptional performance across diverse operational environments.

Product Details

Cover Plate
Top Cover Plate Diameter: 231 mm
Screw Center Distance of Top Cover Plate: 157.5 mm
Bottom Cover Plate Diameter: 231 mm
Screw Center Distance of Bottom Cover Plate: 157.5 mm

Nuts/Blind Nuts
Top Cover Plate Screw (Nut) Tooth: 2×3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth: 2×3/8-16UNC

Gas Gole/Gas Fitting/Air Hole/Air Inlet
Air Inlet: 1/4 NPTF

Rubber Bellow
Rubber Bellow Max. Dia: 325 mm
Minimum Height: 81 mm
Maximum Height: 305 mm
Bellows Structure: Double Convoluted
Design Height: 160 mm

Product Technical Data

Force F[kN]

Pressure P	[bar]	3	4	5	6	7	8
Height H [mm]	300	9.8	13.1	16.7	20.3	24.0	27.7
	260	12.5	16.7	21.0	25.4	29.9	34.5
	220	14.6	19.4	24.4	29.4	34.5	39.6
	180	16.2	21.6	27.0	32.5	38.2	43.8
	140	17.6	23.4	29.3	35.2	41.3	47.2
	100	18.3	24.4	30.3	36.3	42.4	48.5

OEM Numbers

Fire stone	W01-358-7180	Fire stone Style	22
Contitech	FD 330-22 363	Goodyear	2B12-425
Goodyear	2B 12-425	Goodyear	578923309
Triangle	6316/4363	Airkraft	115061/3B-356
Vibracoustic	VSP2B22R7180	EI Ride	8030190
Leland	SC2075	Navistar	1685179C1
Hendrickson	1VA1816	Ridewell	1003587180C
SAF Holland	57007180	Watson&Chalinl	AS01541G/01881F
Peerless	0550 00001	-	-

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
