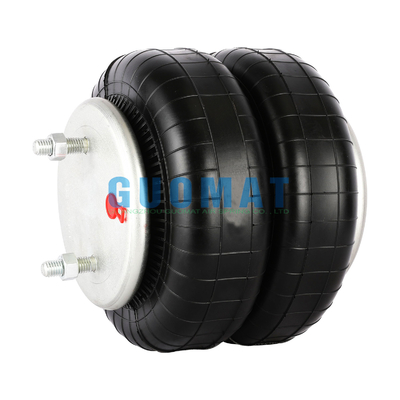

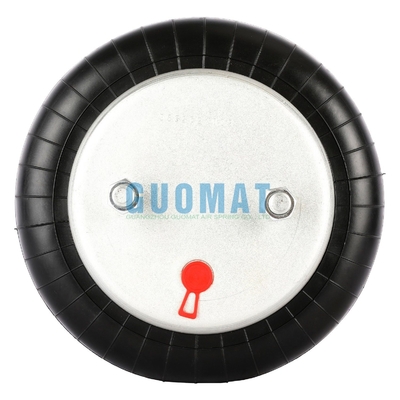

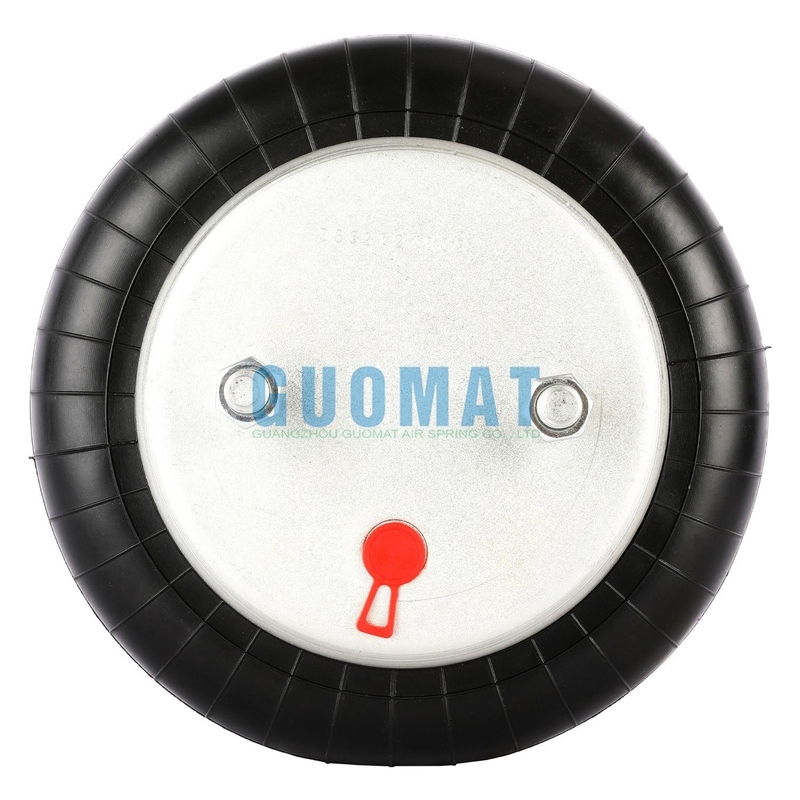

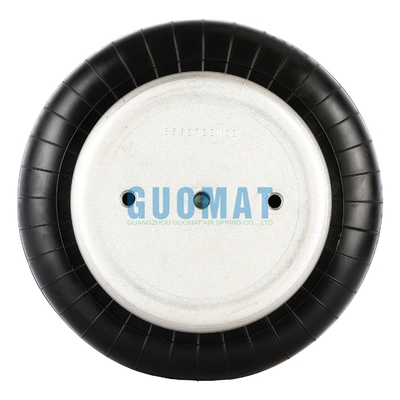

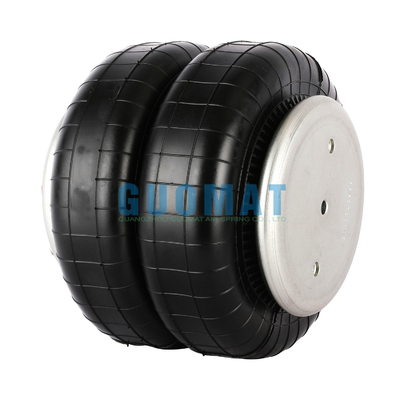

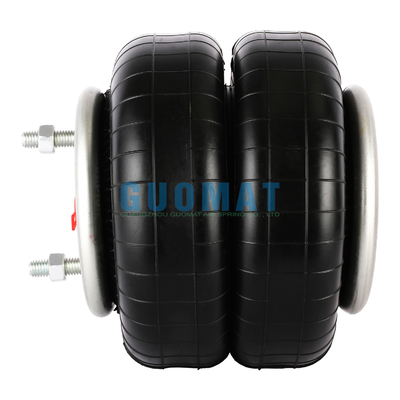

Goodyear 2B9-250 Air Suspension Spring For Watson Chalin as-0041

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6943

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6943	Structure:	Double Convoluted
Damping Force Direction:	Bidirectional	Function:	Reduce Shock
Watson&Chalin:	As-0041	Trademark:	GUOMAT
Minimum Height:	3.5 Inches	Maximum Height:	12.2 Inches
Highlight:	2B9-250 Air Suspension Spring , Goodyear 2B9-250 Air Suspension Spring

High Quality Goodyear 2B9-250 New Air Suspension Spring For Watson Chalin as-0041

Product Details

Cover Plate	Top Cover Plate Diameter: 6.40 In.
	Screw Center Distance of Top Cover Plate: 3.50 In.
	Bottom Cover Plate Diameter: 6.40 In.
	Screw Center Distance of Bottom Cover Plate: 3.50 In.
Nut/Blind Nuts	Top Cover Plate Screw(Nut) Tooth: 1/2-13 Bolt
Nut/Blind Nuts	Bottom Cover Plate Screw(Nut) Tooth: 1/2-13 Bolt
Gas Hole/Air Inlet	Air Hole: 1/4 NPTF
Rubber Bellow	Rubber Bellow Natural Dia.: #
	Minimum Height: 3.50 In.
	Maximum Height: 12.2 In.

Manufacturer Part Number

Fire stone: W01-358-6943
Contitech: FD 200-25 426
: 161332
Goodyear: 2B9-250
: 578923206
Triangle: 6332/4426
Watson&Chalin: AS-0041
Neway/SAF: 90557237
V-Steer II (Lift Bag)
Van Raden
Ridewell: 1003586943C
Tuthill: 6352

We Can Supply Goodyear Other Type Air Springs

Double Convoluted Air Spring
2B6-530	2B6-531
2B6-532	2B6-535
2B6-536	2B7-540
2B7-541	2B7-542
2B7-545	2B7-546
2B8-550	2B8-552
2B8-553	2B8-554
2B9-200	2B9-201
2B9-204	2B9-205
2B9-216	2B9-250
2B9-251	2B9-253
2B12-309	2B12-218
2B12-425	2B12-429
2B12-437	2B12-416
2B14-352	2B14-353
2B14-354	2B14-355
2B14-362	2B14-363
2B14-452	2B15-375
2B15-376	2B15-377
2B15-378	2B19-8433
2B22-8539

GUOMAT Air Spring Advantages

Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as

Flexibility (no angle or alignment problem)
Compactness
Power / price ratio
No maintenance or lubrication required
Durability
Reliability
Resistance to aggressive or hot conditions

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
