GUOMAT Ais Shock Suspension 7X3 Triple Convoluted Type Air Spring For Military Vehicles

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B7X3

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B7X3	N.W.:	3.5 Kg
Plate Diameter:	132 Mm	Air Inlet:	1/2-14NPT
Top Plate Hole/Stud:	2X3/8-16unc	Top Plate Dia:	132 Mm
Warranty:	One Year	Sample:	Available
Highlight:	Triple Convoluted Type Air Spring , Suspension 7X3 Air Spring

GUOMAT Ais Shock Suspension 7X3 Triple Convoluted Type For Military Vehicles

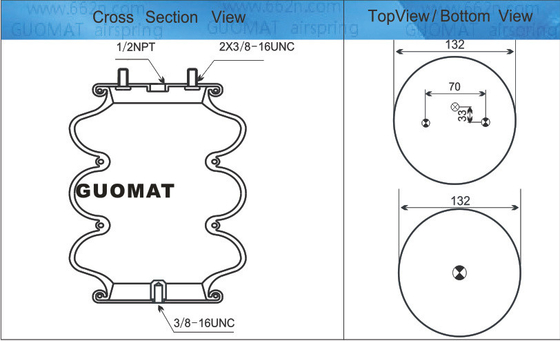

GUOMAT 2B7X3 Data

Nut/ Blind Nut
Top cover screw (nut) teeth	2 x 3 / 8-16UNC
Top cover screw center distance	69 mm
Bottom cover screw (nut) teeth	1 X 3 / 8-16UNC
Air hole / air inlet / air connector
Air vent / air inlet	3 / 8-18 NPTF
Screw center distance between air vent and nut	33 mm
Cover Plate
Top cover diameter (width)	130 mm / 5.31 inches
Bottom cover diameter (width)	130 mm / 5.31 inches
Rubber bellows
Rubber bellows MAX diameter	203 mm
Working stroke	MIN 117 mm to MAX 460 mm
Maximum height	460 mm
Minimum height (compression height)	117 mm
Stroke height	343 mm

We Porvide Other Triple Convoluted Type Air Actuator

3B12-304	3B12-305	FT 330-29 CI	SP2910
3B14-351	3B14-353	FT 430-32 CI	SP2895
3B14-354	3B15-375	FT 530-32 CI	SP2923
3B15-376	3B15-377	FT 530-35 CI	SP2861
3B15-378		FT 960-34 CI	SP2863
		FT 1330-35 CI	SP1539
			SP1542
			SP1558
			SP2141

Product Applications

Pulp and paper industry
Lumber mills
Lift tables
Tooling and machining system
Energy production
Tooling robotics and automation
Component assembly
Automotive assembly
Medical equipment
Conveyor systems
Packing

FAQ

Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

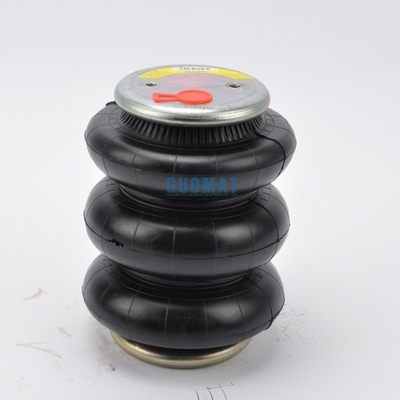

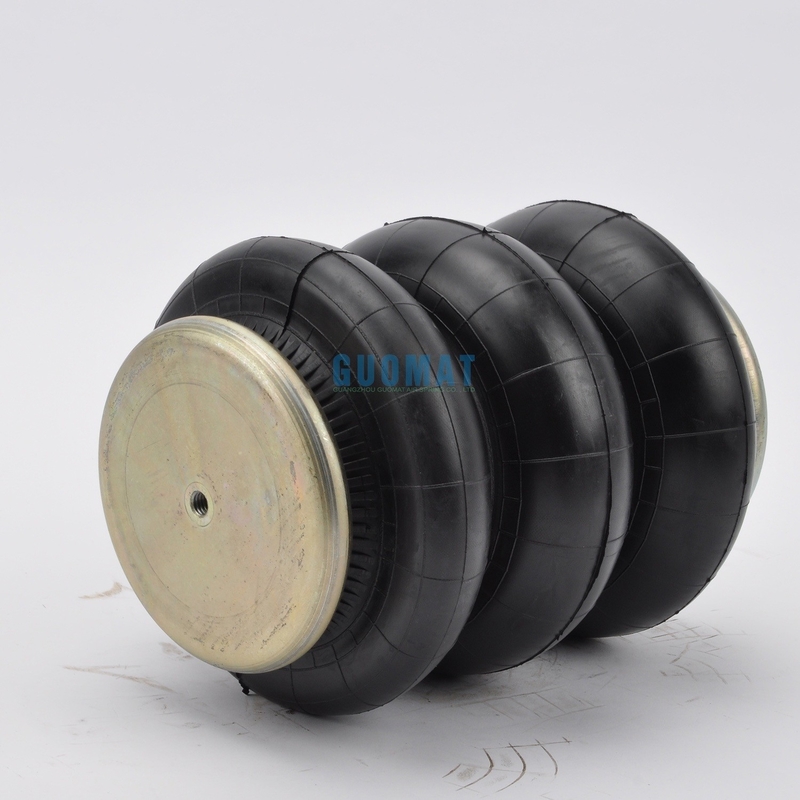

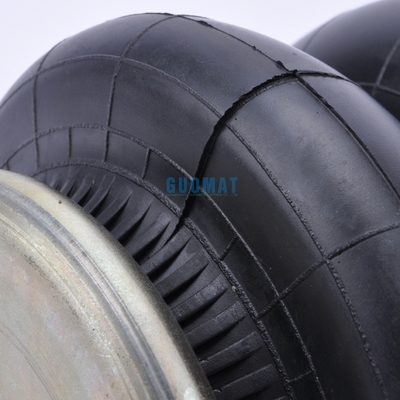

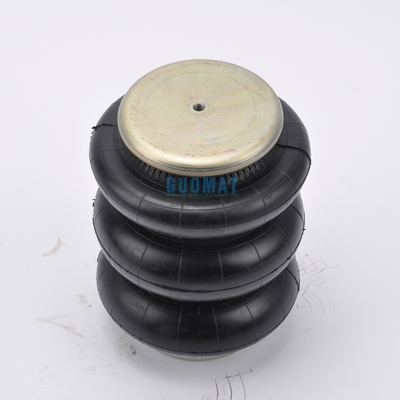

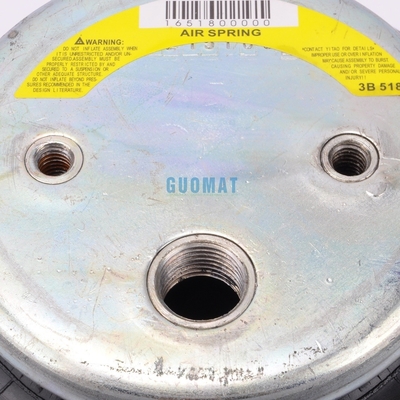

Detailed Pictures

GUOMAT Ais Shock Suspension 7X3 Triple Convoluted Type Air Spring For Military Vehicles 0
