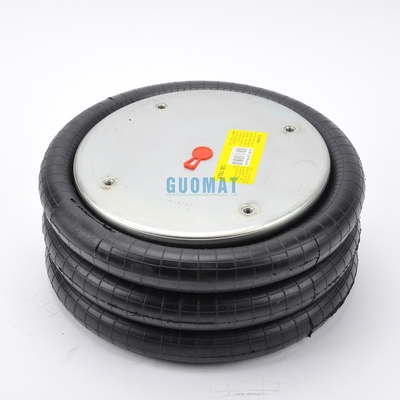

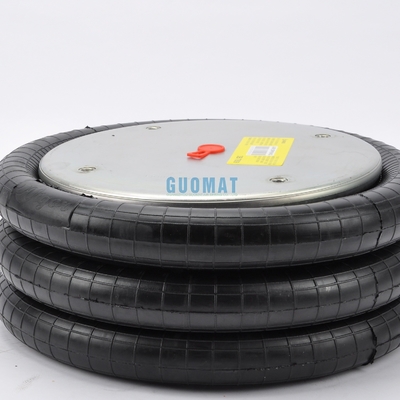

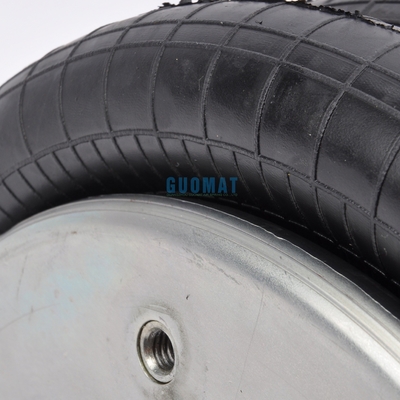

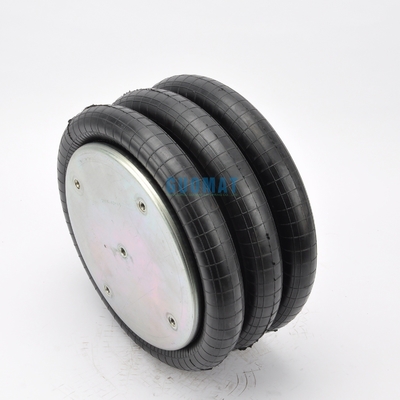

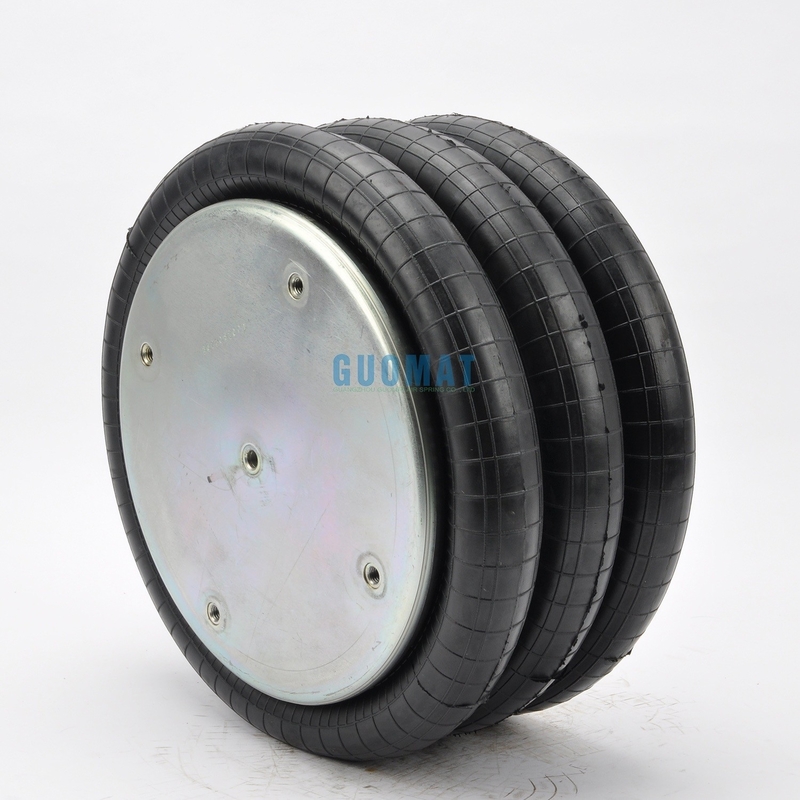

Firestone Air Springs W013587808 Style NO. 313 Triangle 6319 / 4336 Air Bag Suspension

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B7809

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD69.9-79.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000 PCS/Week

Contact Now

Detailed Product Description

Type:	Suspension Air Spring	Bumper:	With
Air Inlet:	1/4-18NPT In Middle	Top Plate Hole/Stud:	4X3/8-16unc
Bottom Plate Hole/Stud:	4X3/8-16unc	Top Plate Dia:	289 Mm
Material:	Rubber And Iron	OEM:	Yes
Highlight:	Firestone Air Springs W013587808 , Triangle Firestone Air Springs

Firestone Air Springs W013587808 Style NO. 313 Triangle 6319 / 4336 Air Bag Suspension

OEM Original Equipment Manufacturer:

Product Specs for Firestone Air Spring W013587808

Technical Specs: Firestone Air Spring W01-358-7808
Compressed Height: 4.00
Top Plate Number:3131 or 3134
Top Plate Width:11.31
Piston Number:3130
Piston Width:11.31
Firestone Air Spring Bellows Number:313
Goodyear Part Number:3B14-354 /3B14 354
Goodyear Bellows Number:578-93-3-350 /578 93 3 350 / 578933350
Triangle Part Number:4336
Triangle Bellows Number:6319
Ridewell Number:1003587808C
EZ Ride Number8030170
Note:PEERLESS 0550-00030
UPC767555005538
MPNW013587808

Technical Parameters of 3B7808

Top Cover Plate Diameter 289 mm

Bottom Cover Plate Diameter 289 mm

Screw Center Distance 158.8 mm

Distance Gas Hole Between Nut 79.4 mm

Gas Hole 1/4NPTF in the middle of the Top Cover Plate

Screw (Nut) Tooth 2pcsX3/8-16UNC

Rubber Bellows Natural diameter 356 mm

Rubber Bellows Natural height 282 mm

Contitech FT 530-32 336

Firestone Air SpringStyle 313
Firestone Air Spring No. W01-358-7808
FleetPride AS7808
Goodyear 3B14-354
Goodyear Flex No. 578933350
Taurus 6319
Triangle AS-4336
TRP AS78080
Automann SP3B32R-7808

The usal kinds of Double Convolution Air Springs

Triple Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO.	Contitech NO.	Min. Design height	Installation Space Required	Max. Stroke
3B33029	FT 330-29	110	345	320
3B43032	FT 430-32	115	355	315
3B53032	FT 530-32	110	410	325
3B53035	FT 530-35	115	430	395
3B96034	FT 960-34	120	510	335
3B133035	FT 1330-35	120	570	350

Air Spring Installation

Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
