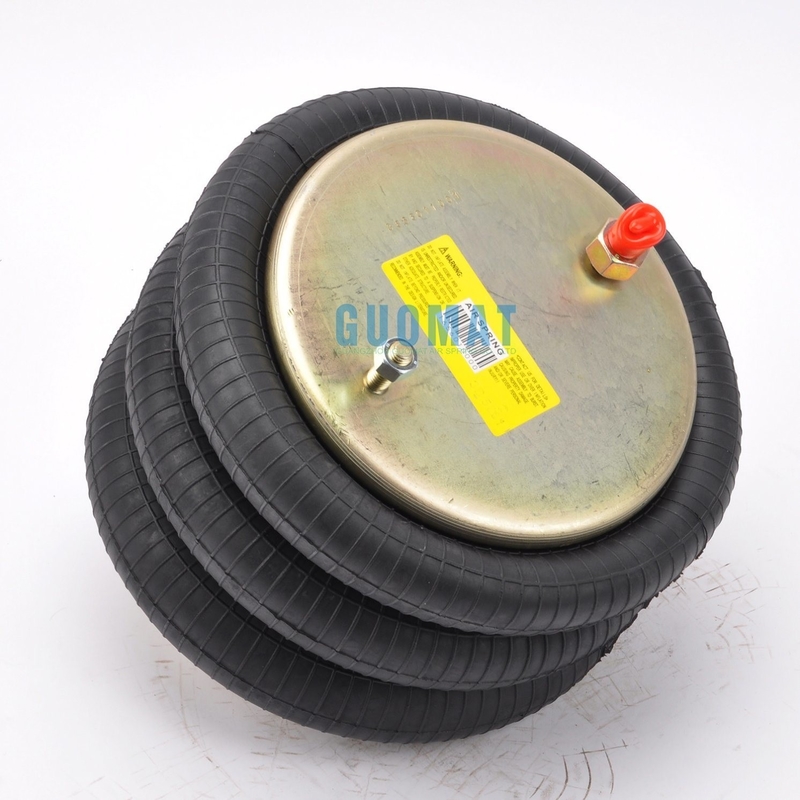

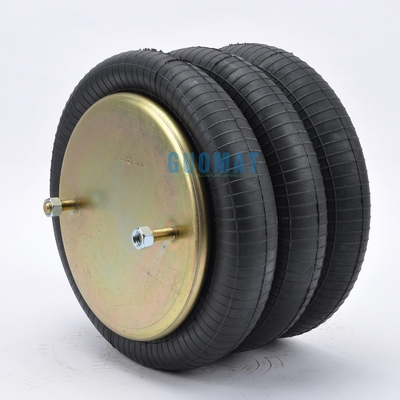

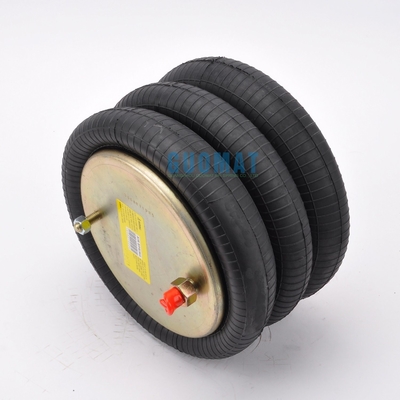

Contitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine Isolation

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B12-335

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3B12-335	Structure:	Triple Cylinder
Max Diameter:	330mm	Brand:	GUOMAT
Warranty:	1 Year	Type:	Gas-Filled
Material:	Rubber And Steel	OEM Number:	W01-358-7996
Highlight:	Contitech Air Bellows , Contitech Air Bellows FT 330-29 520 , Contitech Air Bellows For Machine Isolation

Contitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine Isolation

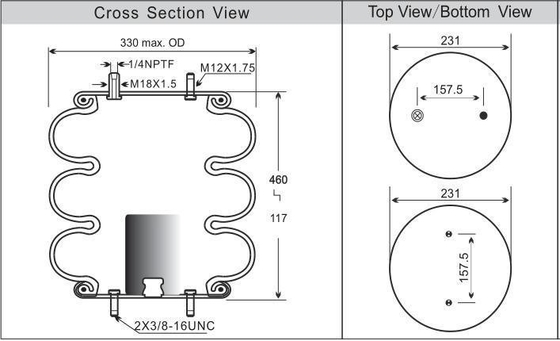

Product Details

Bottom Plate Alignment	Parallel
Bottom Plate Center To Center Diameter	157.5 mm
Bottom Plate Diameter	231 mm
Bottom Plate Hole Quantity	1
Bottom Plate Type	Steel
Top Plate Alignment	Parallel
Top Plate Center To Center Diameter	157.5 mm
Top Plate Diameter	231 mm
Top Plate Hole Quantity	2
Top Plate Type	Steel
Bellow Maximum Diameter	330 mm
Expanded Height	460 mm
Compressed Height	117 mm
Bellows Structure	Triple Convoluted
Nut/Blind Nuts Type	3/8-16UNC
Air Inlet	1/4 NPTF

Goodyear Triple Bellow Air Spring

Contitech

FT 330-29 520, FT330-29 520, FT33029 520

FT330 29 520, FT 33029 520, FT 330 29 520

Firestone

W01-358-7996, W01 358 7996, W013587996

WO1-358-7996, WO1 358 7996, WO13587996

W01-358-7938, W01 358 7938, W013587938

WO1-358-7938, WO1 358 7938, WO13587938

Goodyear

3B12-335, 3B 12-335, 3B12335

3B12 335, 3B 12335, 3B 12 335, 578933100

Triangle

6334, 4520

Granning/Tuthill

The Structure of GUOAMT Air Spring

1. Is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2. Assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3. According to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4. The load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.

Triple Convoluted Air Actuator OEM Number

3B12-304	3B12-305	FT 330-29 CI	SP2910
3B14-351	3B14-353	FT 430-32 CI	SP2895
3B14-354	3B15-375	FT 530-32 CI	SP2923
3B15-376	3B15-377	FT 530-35 CI	SP2861
3B15-378		FT 960-34 CI	SP2863
		FT 1330-35 CI	SP1539
			SP1542
			SP1558
			SP2141
