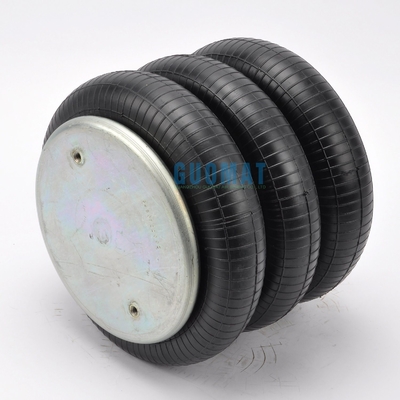

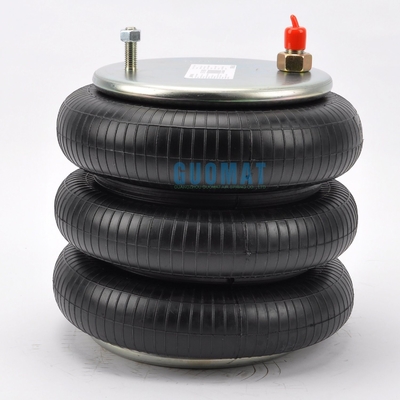

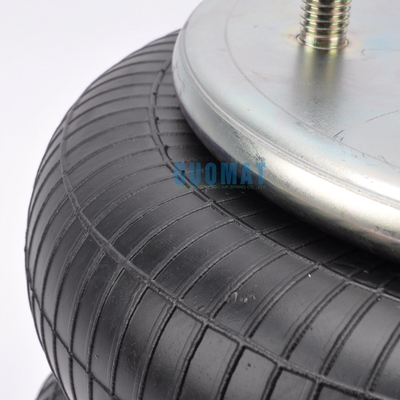

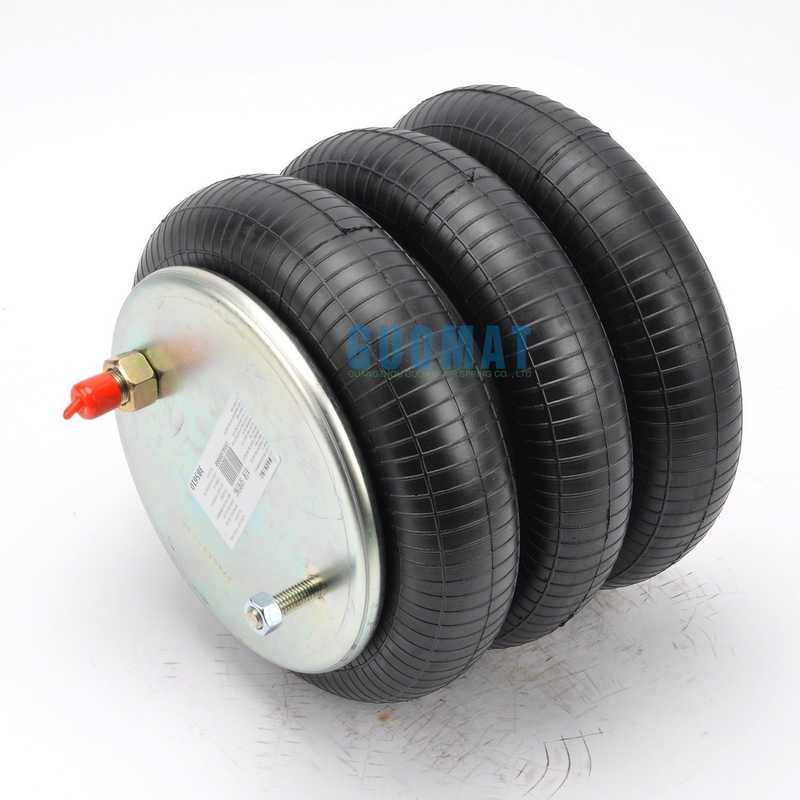

Goodyear Industrial Triple Convoluted Air Spring 3B12-301 1/4NPT Air Inlet W01-358-8010

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B8010

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD69.9-79.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Firestone No.:	W01-358-8010	Structure:	Triple Convoluted
Brand:	Guomat Or Neutral	Air Inlet:	1/4nptf
Max Diameter:	330mm	Plate Diameter:	231mm
Pressure Ability:	0.2-0.8 M PA	Other Name:	Suspension Air Spring
Highlight:	Industrial Triple Convoluted Air Spring , 3B12-301 Triple Convoluted Air Spring

Goodyear Industrial Triple Convoluted Air Spring 3B12-301 1/4NPT Air Inlet W01-358-8010

Quack Detail
Airmount / Airstroke Actuator W01-358-8010,W013588010,B/N,1/4 NPT(OFFSET),R.B.&SUPPORT PADS,38D Style air Spring,Type 3 Bead Plate,(2)3/8-16Blind Nuts On 157.5mm,Rubber Bumper.

Manufacturer: GUOMAT Industrial Products
Manufacturer: 2B8010

Material: Rubber+Steel

Warranty: 12 Months

Crossovers
Triangle Spring:4432
Triangle Spring:4498
Firestone:8010

Firestone: W01-358-8010

Firestone: W01 358 8010

Firestone: W013588010

Goodyear: 3B12-301

Goodyear: 3B 12-301

Goodyear: 578933100

Goodyear: 578 93 3 100

Goodyear: 578-93-3-100
Contitech:34563
Ridewell:1003588010C
UCF/Impex:AB-3B12-301
T.W.Distribution:AB8010
Dallas Spring:AS8010
Midland/Haldex:CS312301
Euclid/Meritor Aftermarket:E-FS8010
Euclid/Meritor Aftermarket:FS8010
Contitech:FT330-29432

Contitech: FT 330-29 432
Ridewell:S5844C
Leland:SC2119

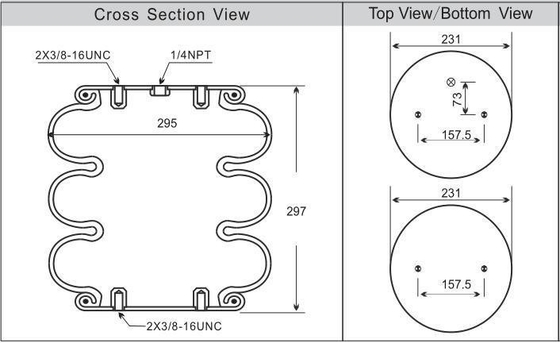

3B12-301 Goodyear Technical Data
☆Cover Plate
Top Cover Plate Diameter:231mm
Bottom Cover Plate Diameter:231mm

☆Rubber Bellows
Rubber Bellows Natural Diameter:295mm
The Working Stoke:297mm

☆Nut/Blind Nut
Top Cover Plate Screw (Nut)Tooth:2X3/8-16UNC
Bottom Cover Plate Screw(Nut)Tooth:2X3/8-16UNC

☆Gas Hole /Air Inlet/Air Fitting
Gas Hole/Air Inlet:1/4NPT
Screw Center Distance Between Gas Hole And Nut:73mm

☆Bumper Block/Buffer Block
With Bumper Block

☆Girdle Hooo/Girdle Ring
With Girdle Hoop:One Pieces of Girdle Hoop

Bellows Stype Air Spring

The bellows air springs have one, two, or three convolutions in the flexible member. This triple convoluted air bag is typically found on lift springs or axles for trucks and trailers, as an air ride spring, and also as an actuator or insulator on industrial and commercial applications. The specifications will vary on your 3B12-301, but triple convoluted Goodyear bags are found in crimped design as well as sleeve type bellows. They will offer similar characteristics and functionality but the sleeve type has the end retainers permanently attached by pinching the flexmember between the end retainers and external crimp rings.

Our Advantages

1	GUOMAT air springs can reduce your costs and increase your profits.
2	Service life is at least twice and up to four times that of steel springs
3	Requires little or no maintenance
4	Extend tire and brake pad life
5	Dramatically reduces damage and maintenance to other vehicle components including electrical, air conditioning, cab supports, exhaust, chassis, seals, wiring and driveline
6	Lets you drag anything; eliminates expensive short runs
7	Reduce driver discomfort and dangerous fatigue; improve driver safety, productivity and loyalty
8	Allows perfect load balancing between axes; allowing you to run within the legal maximum
9	Provides a smoother ride for your payload, reducing costly insurance claims and over-packaging costs
10	All air spring assemblies are 100% pressure tested before leaving the factory.
11	1 year warranty.
