Product Overview

Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.

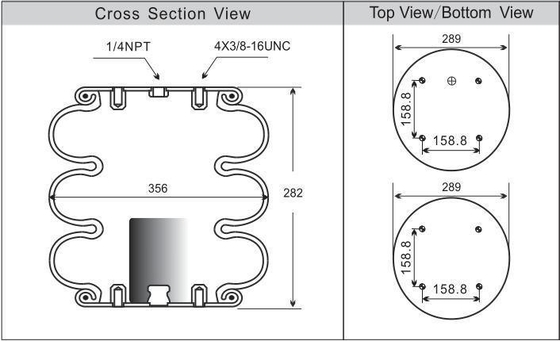

Air Spring Technical Data

♦Cover Plate

Top Cover Plate Diameter:289mm

Bottom Cover Plate Diameter: 289 mm

♦Gas Hole/Air Inlet/Air Fitting

Gas Hole/Air Inlet:1/4NPT

♦Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth :4X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth :4X3/8-16UNC

Screw Center Distance of Top Cover Plate : 158.8 mm

Screw Center Distance of Bottom Cover Plate : 158.8 mm

♦Rubber Bellows

Rubber Bellows MAX Diameter: 356 mm

The Working Stroke : 282mm

Cross References

Product  Applications

• Scissor lift
• Hopper vibration and damping
• Mechanical handling stop
• Quick lock device
• Reel tensioning
• Machine isolation
• Direct force
• Impact absorbtion
• Roller tensioning
• Platform lift
• Short stroke mechanical linkage
• Hot foll stamping press

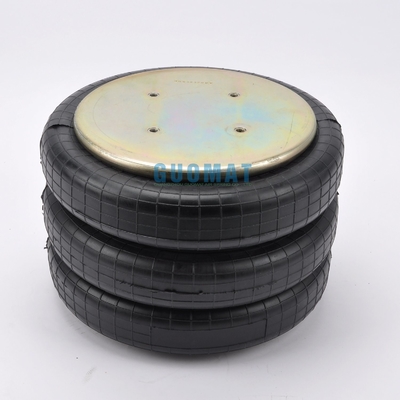

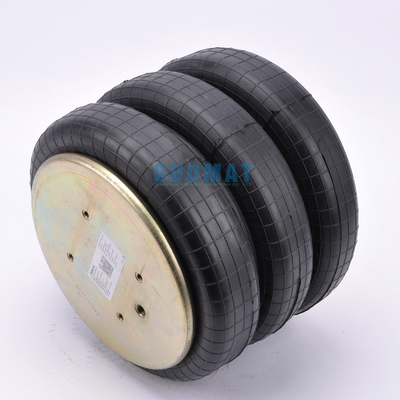

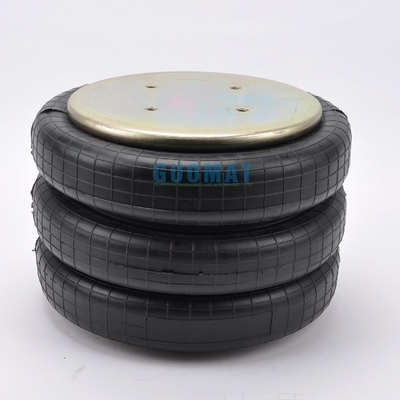

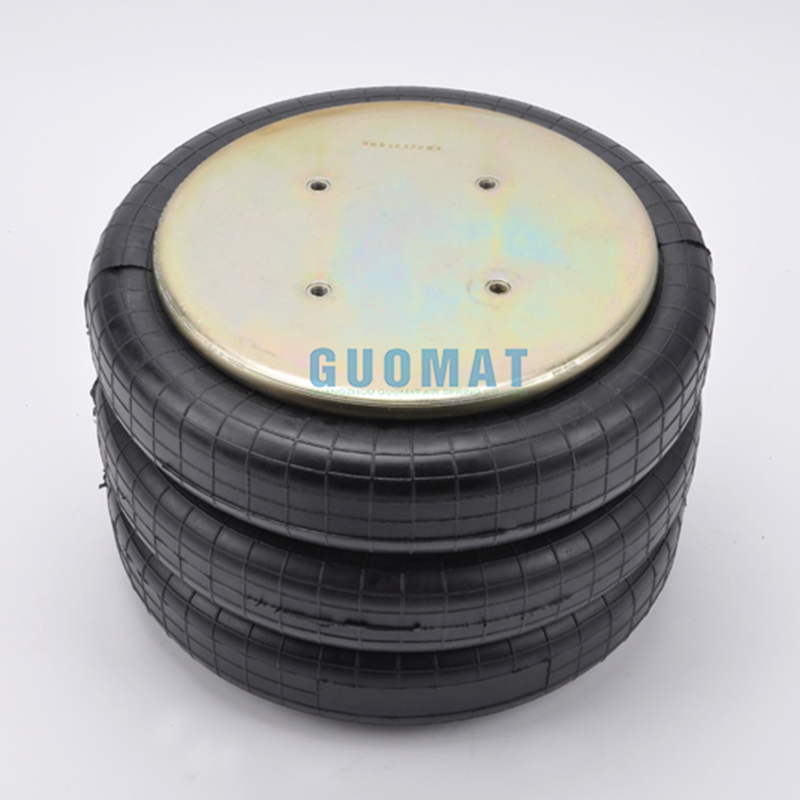

Product Pictures
