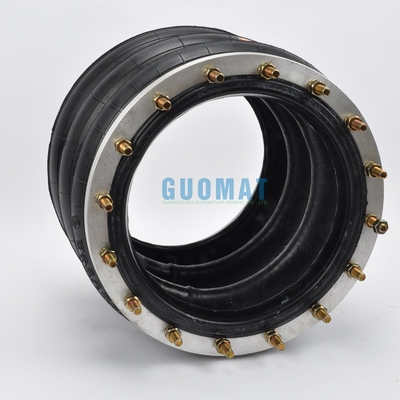

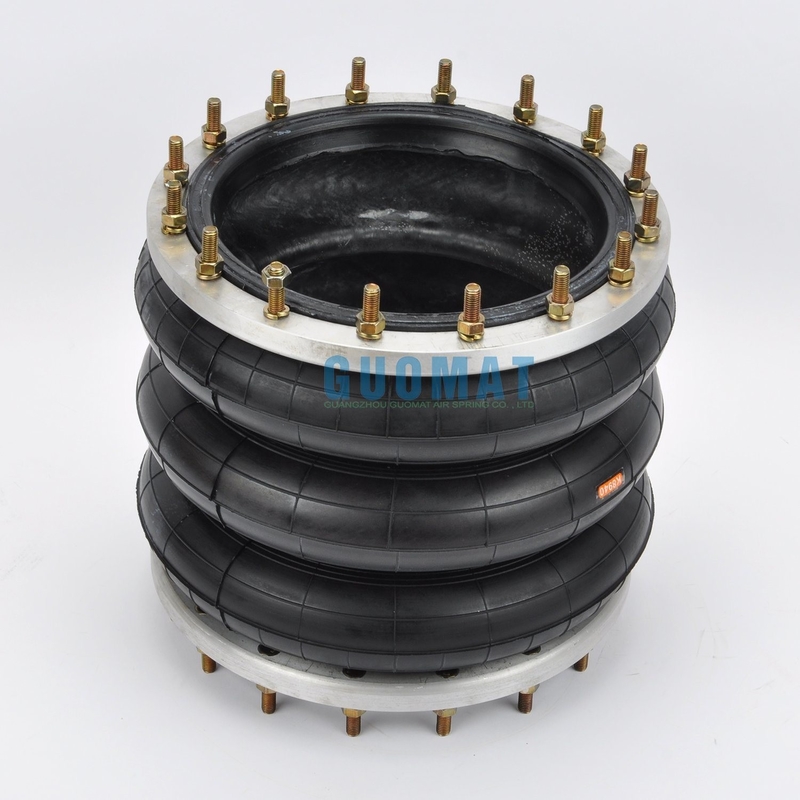

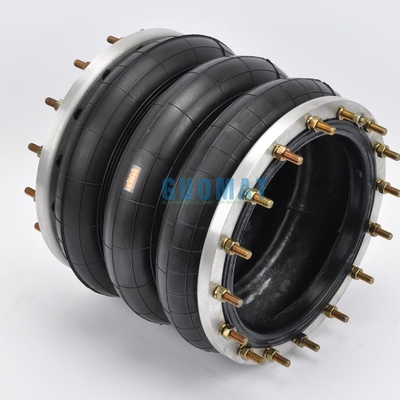

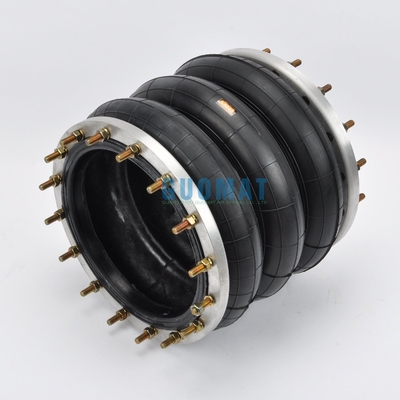

Excellent Materials 360306H-3 Industrial Air Spring With Flange Connection

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	360306H-3

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product NO.:	360306H-3	Bellows Structure:	Triple Convoluted
Air Inlet:	1/4 NPT	Max Diameter:	295mm
Trademark:	GUOMAT	Function:	Reduce Shock
Place Of Origin:	Guangzhou, China	Sample:	Available
Highlight:	360306H-3 Industrial Air Spring , Industrial Air Spring With Flange Connection

Excellent Materials 360306H-3 Industrial Air Spring With Flange Connection

Product Description

GUOMAT rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.

360306H-3 Technical Data

Spring Cover Plate
Top And Bottom Cover Plate Diameter	347mm
Spring Rubber Bellows
Max Rubber Bellow Diameter	380mm
The Natural Height	306mm
Bellows Type	Triple Bellows
Maximum Height	360mm
Minimum Height	122mm
Stroke Heigh	238mm
Spring Screw Or Bolt
Top Cover Plate Bolt	M10
Nut Quantity	16 pcs
Bottom Cover Plate Bolt	M10
Nut Quantity	16 pcs

GUOMAT H-Type Air Spring

Product Number	Maximum outer diameter of flange	Bolt center distance	Number of bolts	Effective length of bolt
580214H-2	568mm	530mm	24	33mm
630262H-2	610mm	560mm	30	33mm
680262H-2	642mm	605mm	32	33mm
200206H-2	180mm	152mm	8	26mm
250260H-2	183mm	145mm	8	26mm
255230H-2	213mm	175mm	8	26mm
255322H-2	203mm	175mm	8	26mm
310306H-2	300mm	263mm	12	26mm
330306H-2	322mm	284mm	14	26mm
360306H-2	347mm	309mm	16	33mm
380316H-2	358mm	320mm	16	33mm
400312H-2	396mm	358mm	18	33mm
430370H-2	398mm	360mm	18	33mm
480312H-2	476mm	438mm	20	33mm
520312H-2	508mm	470mm	24	33mm
580306H-2	568mm	530mm	24	33mm
630376H-2	610mm	560mm	30	33mm
680376H-2	642mm	605mm	32	33mm
