3B7994 Triple Industrial Air Spring Firestone W01-358-7994 Contitech FT 330-29

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B7994

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3B7994	Bellows Structure:	Triple Cylinder
Damping Force Direction:	Bidirectional	Trademark:	GUOMAT
After-sales Service:	12 Months	Type:	Gas-Filled
The Working Stroke:	13.10 Inches	Max. Diameter:	12.80 Inches
Highlight:	FT 330-29 Industrial Air Spring , 3B7994 Industrial Air Spring

3B7994 Triple Industrial Air Spring Firestone W01-358-7994 Contitech FT 330-29

3B7944 Air Spring Details

Minimum Height	4.90 in.
Maximum Height	18.90 in.
Full Stroke	13.10 in.
Rubber Bellow Max. Dia.	12.80 in.
Top Plate Width	9.00 in.
Screw Type of Top Cover Plate	1×3/8-16UNC
Bottom Plate Width	9.00 in.
Screw Type of Bottom Cover Plate	2×3/8-16UNC
Center to Center Distance	5.50 in.

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	380	8.8	11.9	15.1	18.4	21.7	25.1	23.6
	340	10.7	14.4	18.2	22.0	25.9	29.8	21.6
	300	12.3	16.5	20.8	25.1	29.5	33.7	19.2
	260	13.7	18.2	22.9	27.6	32.3	36.9	16.6
	220	14.8	19.5	24.6	29.6	34.6	39.5	13.8
	180	15.9	21.1	26.5	31.8	37.2	42.4	10.7
	140	17.0	22.4	28.1	33.6	39.1	44.7	7.5

Product Part Number

Contitech Number	FT 330-29 546
Contitech Number	FT 330 29 546
Contitech Number	FT330-29 546
Contitech Number	FT330 29 546
Contitech Number	FT33029546
Contitech Number	64572
Firestone Number	W01-358-7994
Firestone Number	W01 358 7994
Firestone Number	W013587994
Goodyear Number	3B12-328
Goodyear Number	3B12 328
Goodyear Number	3B12328
Triangle Number	4546
Triangle Number	6364
Watson&chalin Number	AS-0019-F
Watson&chalin Number	AS 0019 F
Watson&chalin Number	AS0019F
Euolid/meritor After market Number	E-FS7994
Euolid/meritor After market Number	E FS7994
Euolid/meritor After market Number	EFS7994

Air Spring Function

The air spring has nonlinear characteristics, and its stiffness changes with the load, so its natural frequency remains almost unchanged under any load, so the spring device has almost constant characteristics.

1.it has good high-frequency vibration absorption and sound insulation performance

2.it can simultaneously Withstand axial and radial loads.

3.Different bearing capacities can be obtained by adjusting the internal pressure.

Therefore, it can meet the needs of various loads.

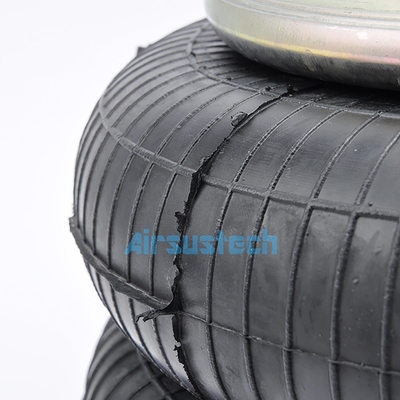

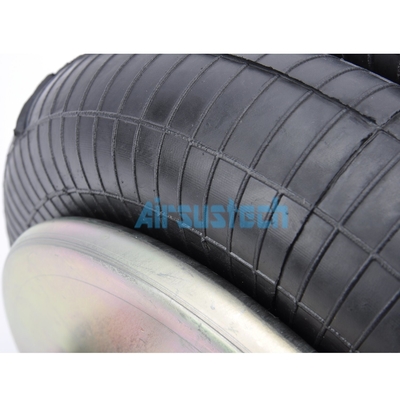

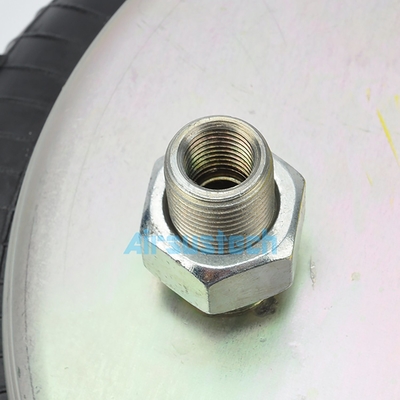

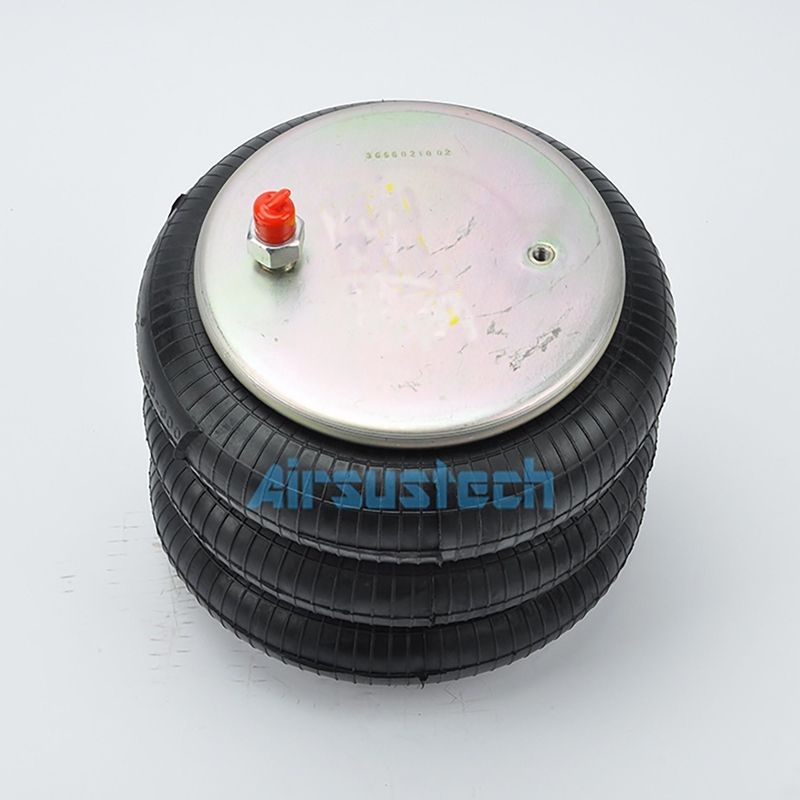

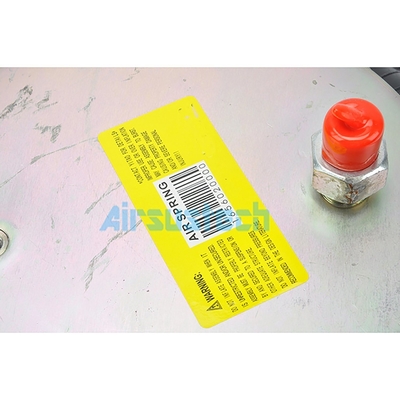

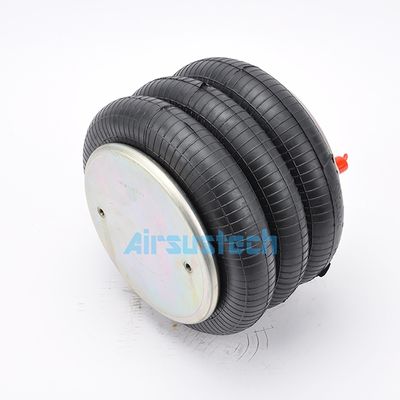

3B7994 Real Pictures

3B7994 Triple Industrial Air Spring Firestone W01-358-7994 Contitech FT 330-29 1
