W01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 Inches

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B8006

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3B8006	Structure:	Triple Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
Trademark:	GUOMAT	OEM NO.:	Load Guard SC2132
Air Inlet:	1/4NPTF	Sample:	Available \| Customized Request
Highlight:	Pneumatic Bellow Firestone Air Spring , W01-358-8006 Firestone Air Spring

W01-358-8006 Pneumatic Bellow by Firestone Air Spring Full Stroke 13.2 Inches

Detailed Technical Parameters: 3B8006

The top/bottom cover plate screw: 2×M10×1.5

The screw center distance of the Top cover plate: 157.5mm

The screw center distance of the bottom cover plate: 157.5 mm

Screw And Gas Hole Distance of Top Cover Plate:73mm

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 295mm

The Working Stroke: 297mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two belt loop

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	380	8.8	11.9	15.1	18.4	21.7	25.1	23.6
	340	10.7	14.4	18.2	22.0	25.9	29.8	21.6
	300	12.3	16.5	20.8	25.1	29.5	33.7	19.2
	260	13.7	18.2	22.9	27.6	32.3	36.9	16.6
	220	14.8	19.5	24.6	29.6	34.6	39.5	13.8
	180	15.9	21.1	26.5	31.8	37.2	42.4	10.7
	140	17.0	22.4	28.1	33.6	39.1	44.7	7.5

Refer Number

FIRE STONE: W01 358 8006	GOODYEAR: 3B12-301
FIRE STONE : W01-358-8006	GOODYEAR: 3B12 301
FIRE STONE : W013588006	GOODYEAR: 3B12301
CONTITECH FT: 330 29 430	Goodyear: 578 93 3 100
CONTITECH FT: 33029430	Goodyear: 578933100
CONTITECH FT: 330-29 430	Goodyear: 578-93-3-100
FIRE STONE: FLEX 38R/38D	WEFORMA WBD 500-E2
BO SCH: 822419081	WEFORMA WBD 500 E2

GUOMAT Air Spring Advantages

Compared with spring, air spring shock absorbers have the following advantages

Excellent shock absorption
Stable shock absorption
Precise height control
Wide range of sizes
Extend equipment life
Effectively reduce noise
Air spring shock absorbers are widely used

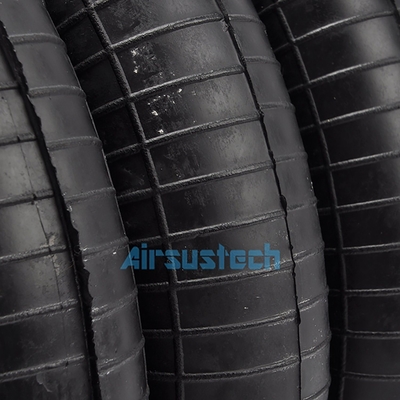

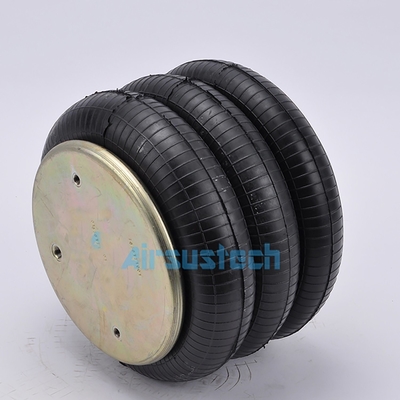

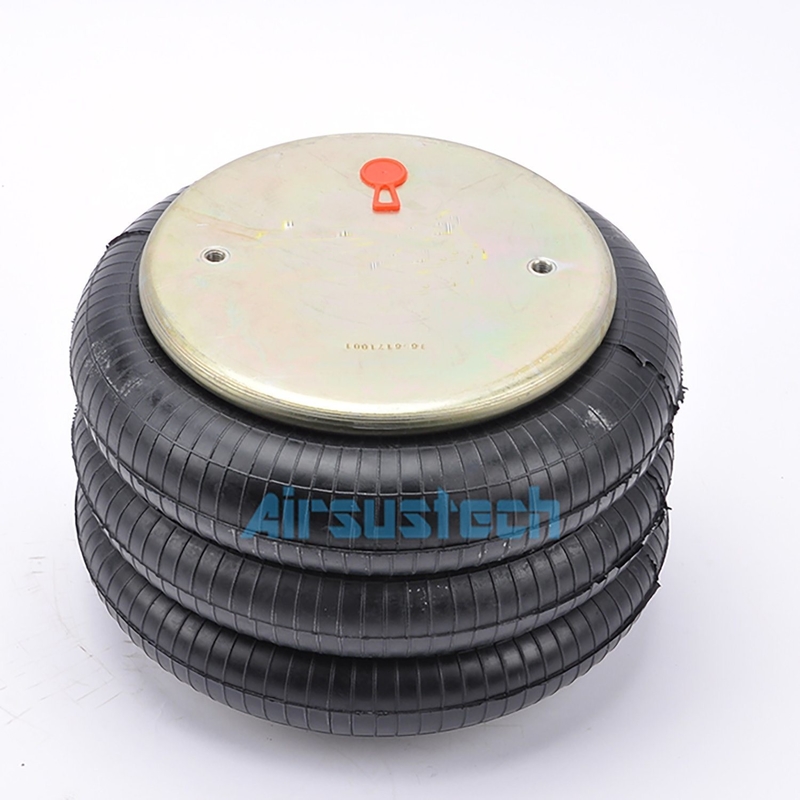

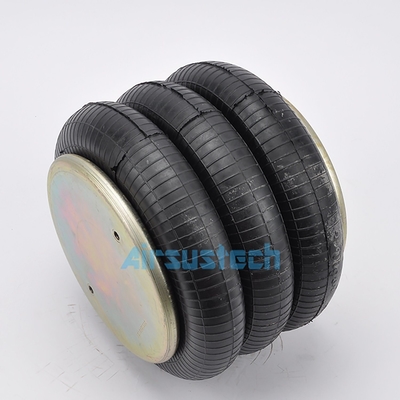

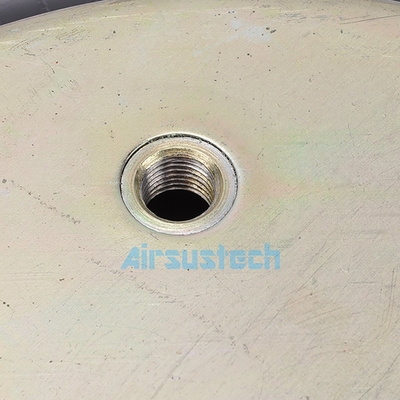

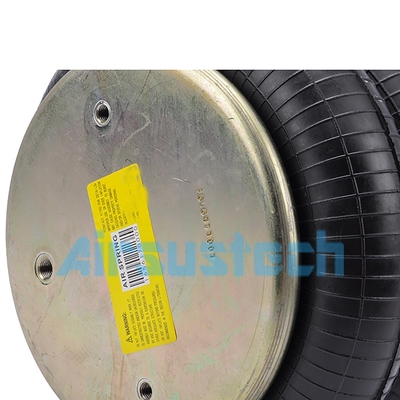

The Related Picture of 3B8006

W01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 Inches 1
