Guomat F-300-3 Industrial Air Spring Cross Yokohama S-300-3r Air Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-300-3

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product NO.:	F-300-3	Quality:	100 % Tested
Fuction:	Reduce Shock	Key Word:	Yokohama S-300-3r
Brand:	GUOMAT	Static Height:	152 MM
Minimum Height:	82 MM	Maximum Height:	242 MM
Highlight:	Guomat F-300-3 Industrial Air Spring , Yokohama S-300-3r Industrial Air Spring

Guomat F-300-3 Industrial Air Spring Cross Yokohama S-300-3r Air Rubber Bellow

F-300-3 Specifications

Model Size	Height H(mm)			Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Standard height, approximate value at 0.49MPA internal pressure					Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
Model Size	Design Height	Max. Height	Min Height	Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
S-300-4R	206	326	111	±80	360	710	15.5	34.7	324	1.5	0.88	3.9-4.9
S-300-3R	152	242	82	±60	360	710	11.2	34.7	490	1.9	0.88	3.9-4.9
S-300-2R	98	158	53	±40	360	710	7.4	34.7	745	2.3	0.88	3.9-4.9
S-300-1R	72	117	40	±30	400	710	5.6	34.7	1108	2.8	0.69	2.9-3.9

OEM Number

AIRSUSTECH Part No.: F-300-3

YOKOHAMA S-300-3R

YOKOHAMA S 300 3R

YOKOHAMA S3003R

Other Types

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R

Storage Precautions

1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius

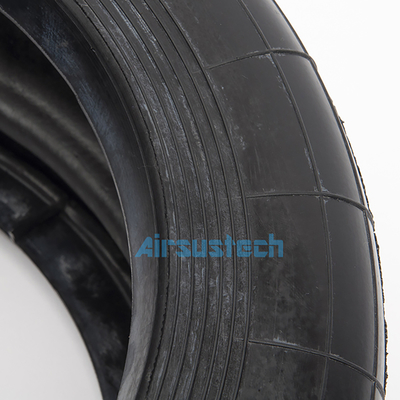

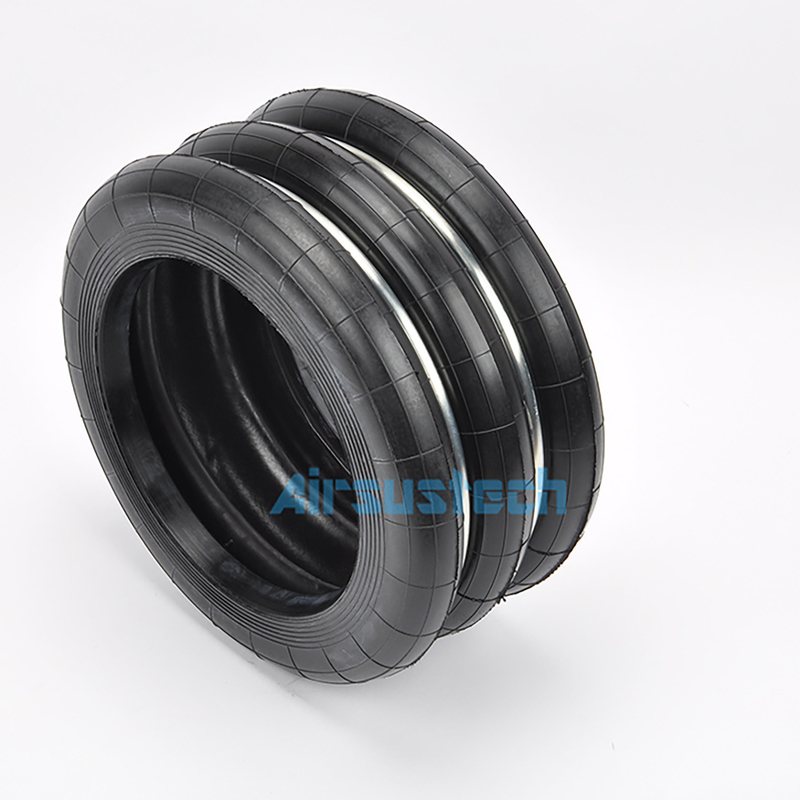

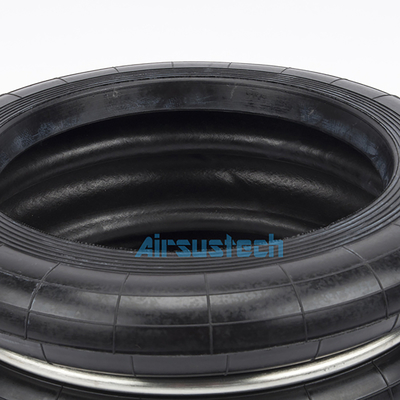

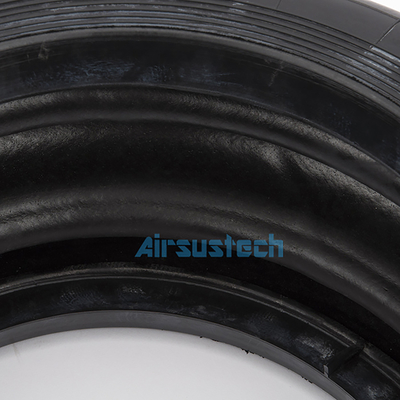

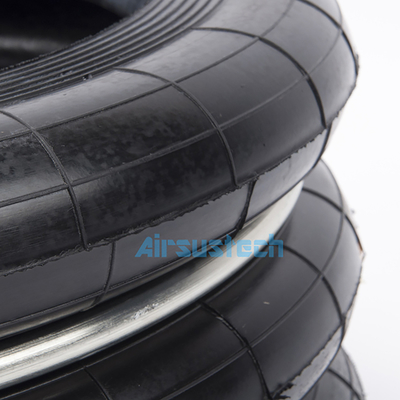

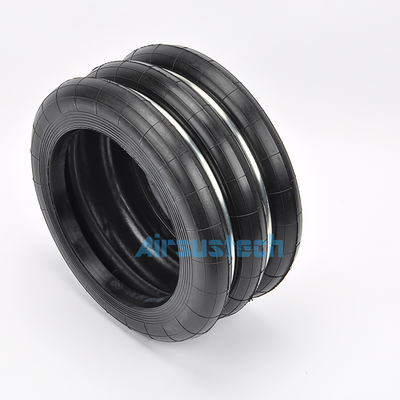

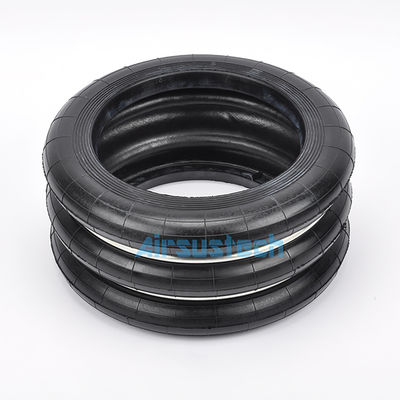

The Related Picture of F-300-3

Guomat F-300-3 Industrial Air Spring Cross Yokohama S-300-3r Air Rubber Bellow 0
