Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B7330

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B7330	Spring Material:	Rubber And Steel
Structure:	Triple Convoluted	Brand:	GUOMAT
Quality:	100 % Tested	Fuction:	Reduce Shock
Warranty:	12 Months	Air Hole:	G 3/8
Highlight:	3B7330 Industrial Air Spring , Triple Convoluted Industrial Air Spring , Guomat 3B7330 Industrial Air Spring

Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension

Product Introduction

Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.

3B7330 Technical Parameters

Nut/blind nut

Top plate screw (nut) teeth: 2X3/8-16UNC
Bottom cover plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the cover plate: 157.5mm

Air hole/air inlet/air fittings

G3/8
The distance betweem the air hole/air inlet/air fittings and the screw: 73mm

Rubber Bellows

Rubber bellows stroke: 297mm
Rubber bellows diameter: 295mm

Plate diameter

Top plate diameter (width): 231 mm
Bottom cover plate diameter: 231 mm

Bumper block/bumper block

Without

Belt loop/Belt loop/Girdle hoop

With two pieces of belt loop/girdle hoop

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	380	8.8	11.9	15.1	18.4	21.7	25.1	23.6
	340	10.7	14.4	18.2	22.0	25.9	29.8	21.6
	300	12.3	16.5	20.8	25.1	29.5	33.7	19.2
	260	13.7	18.2	22.9	27.6	32.3	36.9	16.6
	220	14.8	19.5	24.6	29.6	34.6	39.5	13.8
	180	15.9	21.1	26.5	31.8	37.2	42.4	10.7
	140	17.0	22.4	28.1	33.6	39.1	44.7	7.5

GUOMAT Air Spring Advantages

Compared with spring, air spring shock absorbers have the following advantages:

Excellent shock absorption
Stable shock absorption
Precise height control
Wide range of sizes
Extend equipment life
Effectively reduce noise
Air spring shock absorbers are widely used

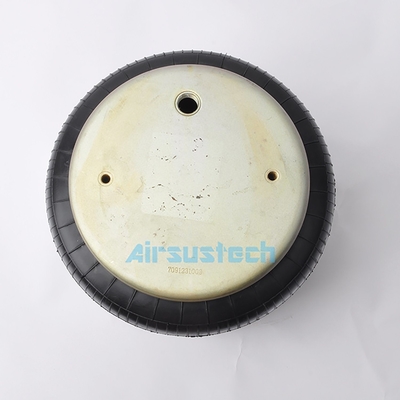

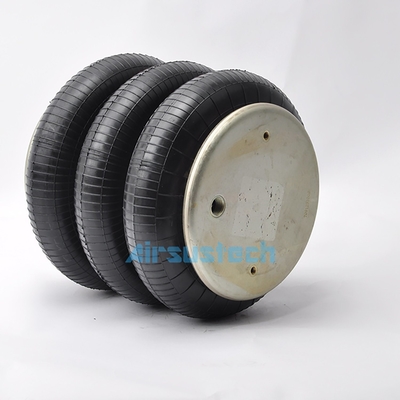

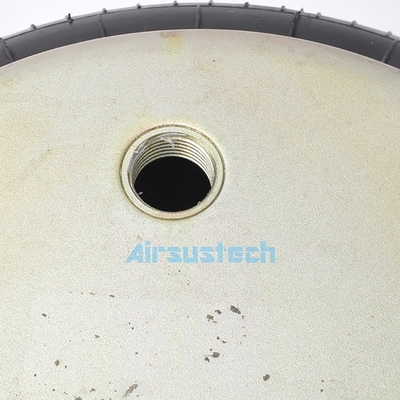

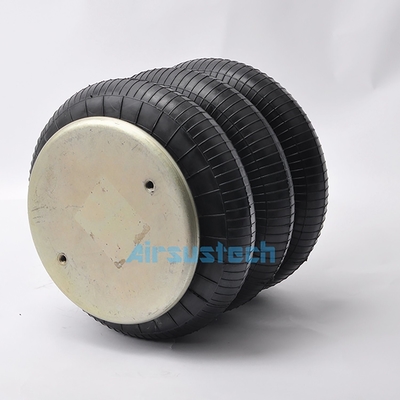

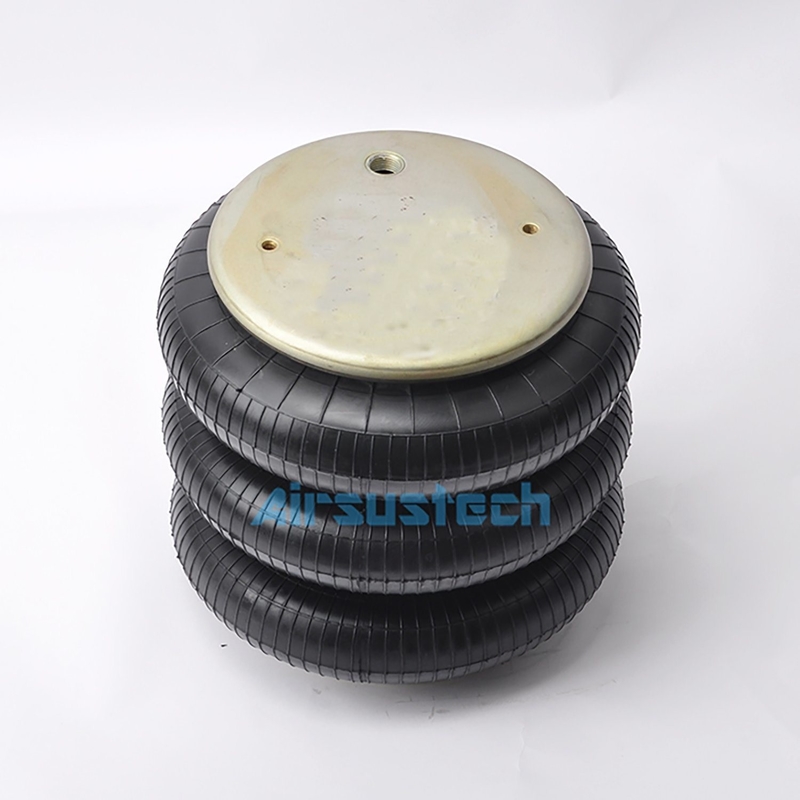

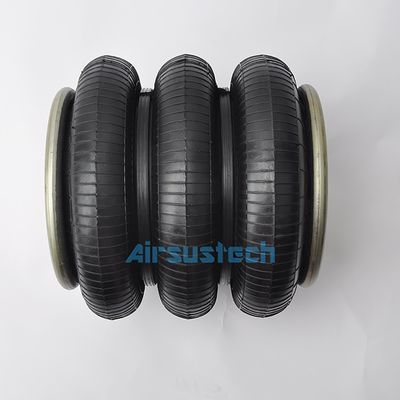

The Related Picture of 3B7330

Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Industrial Air Spring Guomat 3B7330 Triple Convoluted Air Shock Suspension 2

Factory Workshop
