FT816-40 DS Contitech Rubber Air Bellows G1/2 Air Fitting Industrial Air Spring

Product Details:

Place of Origin:	Germany
Brand Name:	Contitech
Certification:	ISO/TS16949:2009
Model Number:	FT816-40

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

ContiTech NO.:	FT 816-40 DS	Spring Material:	Rubber
Type:	Triple Convoluted	Function:	Reduce Shock
Color:	Black	Package:	Cartons
Specification:	242424	Position:	Industrial Machine
Highlight:	Rubber Industrial Air Spring , FT816-40 DS Industrial Air Spring

FT816-40 DS Contitech Rubber Air Bellows G1/2 Air Fitting Industrial Air Spring

Product Details

Item Name	Air Spring,Air Shock Absorber
Part Number	FT 816-40
Material	Rubber and Steel
Warranty	1 Year
Spring Type	Gas Filled
Function	Reduce Shock
Package	Carton
Payment Terms	FOB,EXW,CNF,CIF
Shipment	By sea,By air, By express

OEM Reference Number

Manufacturer	Part Number
Parker	9109177
Norgren	M/31163
Norgren	M31163
Norgren	M 31163
Contitech	FT816-40
Contitech	FT 816-40
Contitech	FT816-40 DS
Contitech	FT 816-40 DS
Contitech	FT816-40 DS G1/2
Contitech	FT 816-40 DS G1/2
Firestone	W01R584068
Firestone	W01 R58 4068
Firestone	W01-R58-4068
Dunlop	SP2141
Dunlop	SP 2141
Dunlop	16X3 ; 16''x3

Triple Convolution Air Actuator Technical Data

The maximum height of this component is 550mm and the minimum height is 120mm. The maximum natural outer diameter is 430mm, and the suitable installation space is 455mm. The diameter of the upper cover is 310mm, G1/2 air hole, there are four screws, the screw specification is M10, and the center distance between the screws is 282.5mm. The diameter of the bottom cover is 310mm, there are four screws, the screw specification is M10, and the center distance between the screws is 282.5mm.

How Flange Air Springs Reduce Vibration
Flange air springs reduce vibration by using the elasticity of air to absorb and damp vibration energy, thereby reducing the transmission of vibration to other parts of the machine. This helps protect machine parts, reduce noise, and improve machine stability and performance.

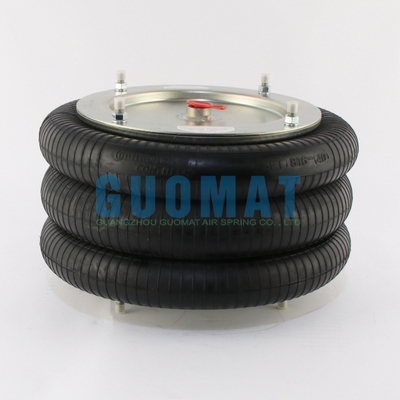

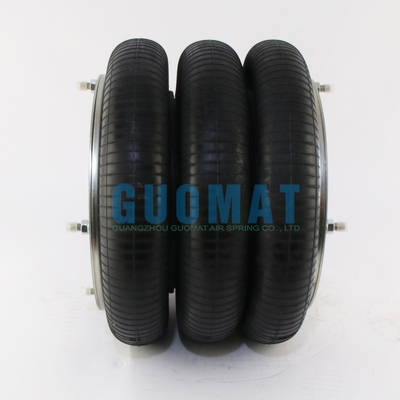

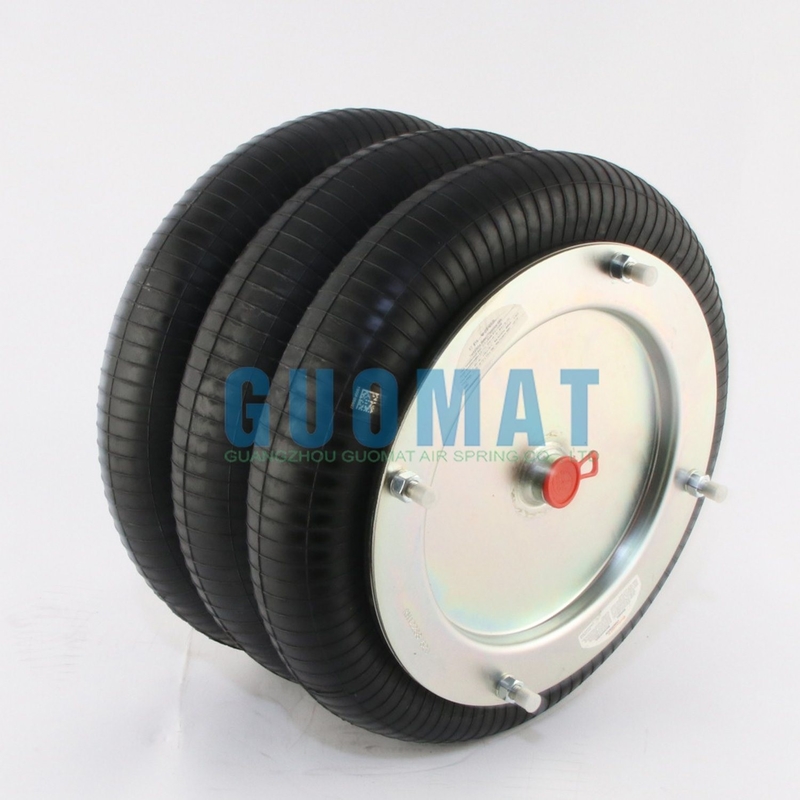

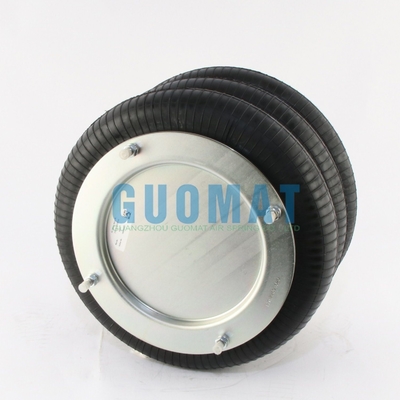

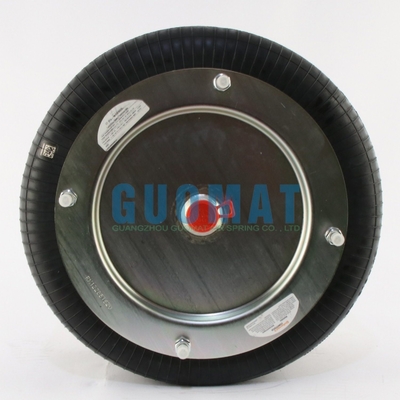

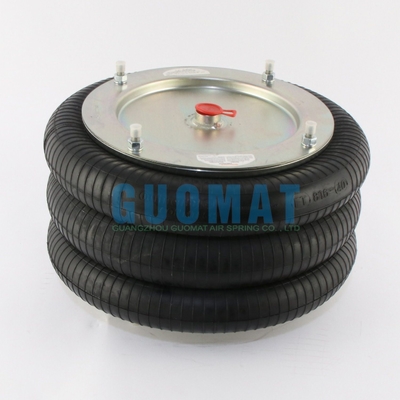

Product Images
