W01-358-7304 Firestone Aluminum Plate Air Spring Isolator With Flange Ring

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B7304

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Structure:	Triple Convoluted	Quality:	100% Tested
Cover Plate:	Aluminum Plate	Warranty:	1 Year
Position:	Industrial Machine	Firestone:	W01-358-7304
Color:	Black	Type:	Flange Air Spring
Highlight:	W01-358-7304 Air Spring Isolator , Air Spring Isolator With Flange Ring

W01-358-7304 Firestone Aluminum Plate Air Spring Isolator With Flange Ring

Product Details

Product Name	Industrial Air Spring
Model No.	3B7304
Brand	GUOMAT
Warranty	1 Year
Material	Rubber+Steel
With Flange	Yes
Firestone	W01-358-7304
Firestone	W013587304
Firestone	W01 358 7304
Firestone	WO13587304
Firestone	WO1 358 7304
Firestone	WO1-358-7304

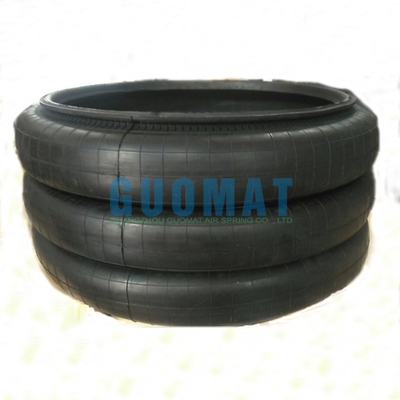

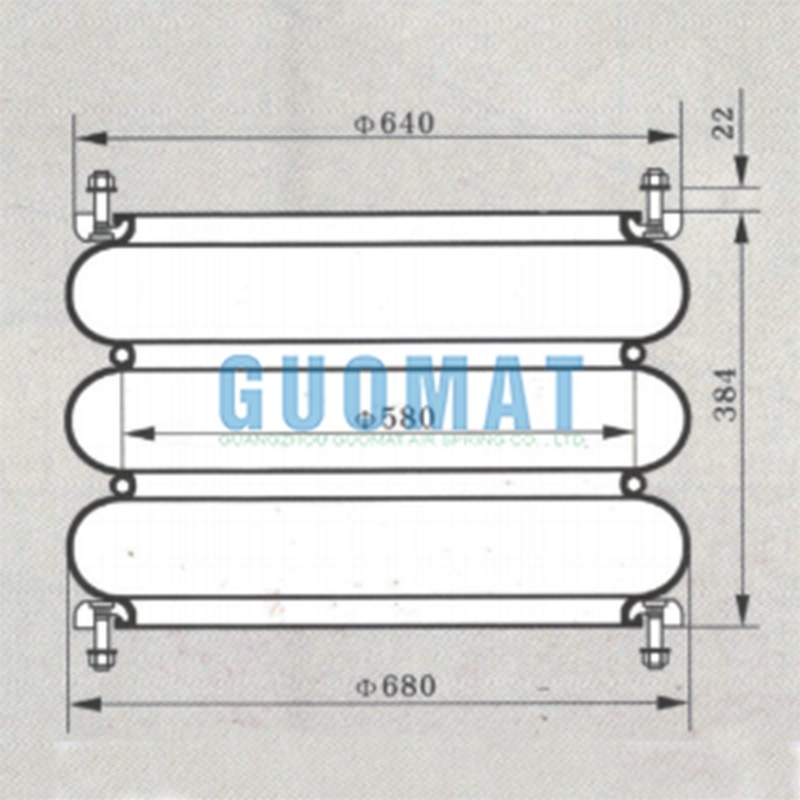

GUOMAT 3B7304 Cross Firestone W01-358-7304 Technical Data

Top Diameter: Ø640mm

The Screw/Nuts: 32 pcsXM10

Screw/Nuts Height: 22mm

Rubber Bellows Diameter: Ø680mm

Air Spring Height: 384mm

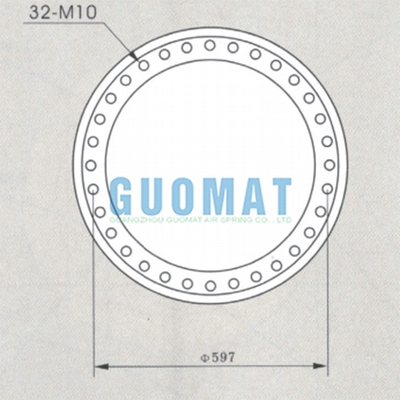

Center Distance Between Screws: Ø597mm

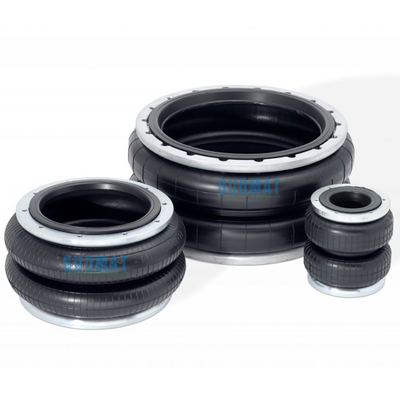

Every Standard Air Spring Consists of 4 Layers

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.

Dynamic Characteristics at 15.0 in. Design Height (Required for Airmount isolator design only)
Volume @ 100 PSIG = 6,984 in3			Natural Frequency
Gage Pressure (PSIG)	Load (lbs.)	Spring Rate (lbs./in.)	CPM	HZ
40	15,080	2,731	80	1.34
60	23,220	3,602	74	1.23
80	31,160	4,554	72	1.20
100	39,070	5,532	71	1.18

Force Table
Assembly Height (in.)	Volume @ 100 PSIG (in3)	Pounds Force
Assembly Height (in.)	Volume @ 100 PSIG (in3)	@20 PSIG	@40 PSIG	@60 PSIG	@80 PSIG	@100 PSIG
18.0	8,136	5,300	11,230	17,840	24,760	31,660
16.0	7,390	6,830	13,920	21,490	29,220	37,010
14.0	6,560	7,830	15,890	24,130	32,390	40,830
12.0	5,660	8,230	17,080	25,960	34,870	44,060
10.0	4,711	8,950	18,220	27,640	36,450	46,370
8.0	3,717	9,250	19,030	29,160	39,320	49,270
6.0.	2,653	10,100	20,350	31,200	41,890	52,170
