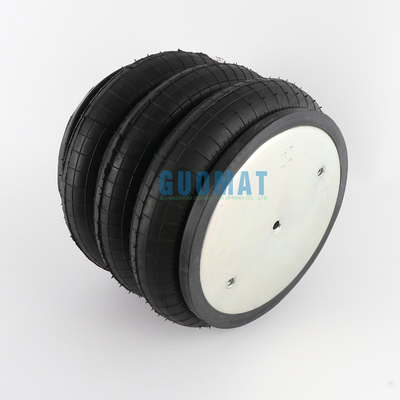

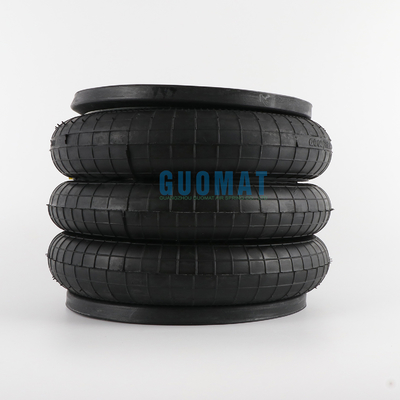

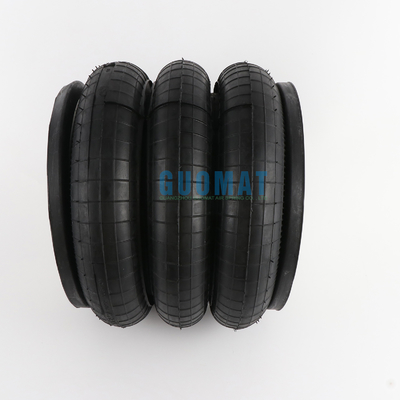

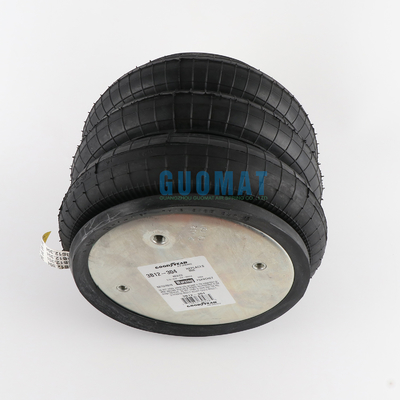

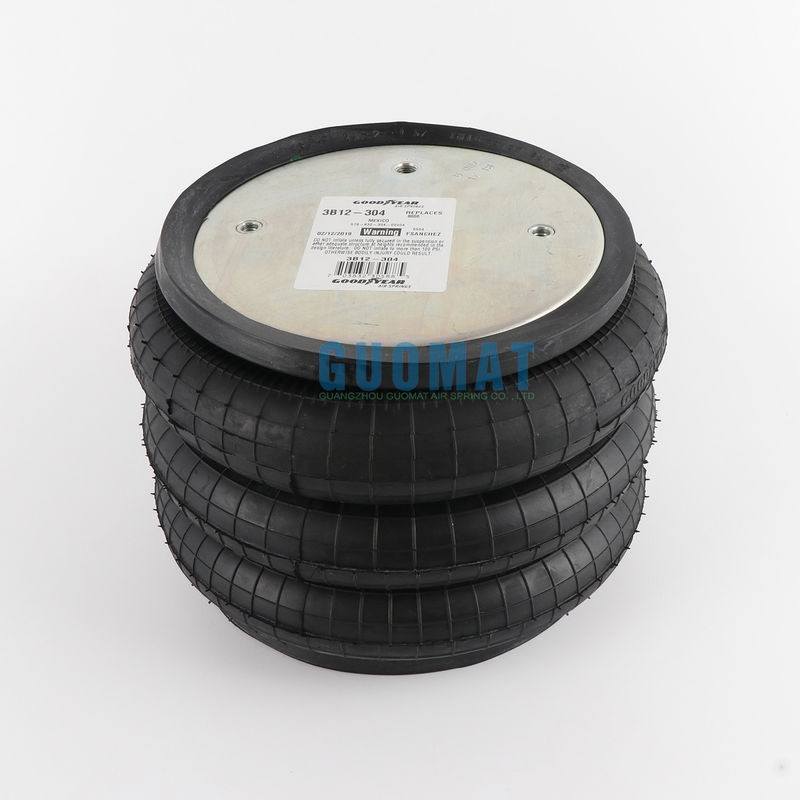

Auto Parts 3B12-304 Goodyear Air Spring Cross W01-358-8013 Air Spring Triple Convoluted Air Bag FT330-29 Ci 1/4 NPT

Product Details:

Place of Origin:	Mexico
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	3B12-304

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Trademark:	Goodyear	Structure:	Triple
N.W.:	7.5 Kg	Pressure Ability:	0.2-0.8 M PA
Maximum Diameter:	330 Mm	Specification:	333322 Cm
Origin:	Mexico	Warranty:	One Year
Highlight:	W01-358-8013 Air Spring , 3B12-304 Air Spring , 3B12-304 Goodyear Air Spring

Auto Parts 3B12-304 Goodyear Air Spring Cross W01-358-8013 Air Spring Triple Convoluted Air Bag FT330-29 Ci 1/4 NPT
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

3B12-304 Goodyear Technical Parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Top Cover Plate : 157.5mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

Cover Plate

Top Cover Plate Diameter: 231 mm

Bottom Cover Plate Diameter: 231 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

Bellows type industrial air spring, triple rotation,
Effective area 330 square centimeters
29 cm maximum stroke,
Crimped bead plate
internal thread,
1/4 NPT, offset
Manufacturer: Goodyear
Compressed height
4.33"
Maximum expansion height
16.9"
The maximum diameter
12.8"
Maximum inflation pressure
120 psi
Maximum stroke
12.57"
Air inlet type
English
Air inlet
1/4"
series
C
lowest temperature
-76°F
Maximum temperature
158°F
Bellows type
Triple convolution
Weight: 13 pounds

3B12-304 Goodyear Cross others OEM

BELLOW Numbers	COMPLETE NO.	COMPLETE Numbers
AIRKRAFT 116008	AIRKRAFT 115033	AIRKRAFT 115027
FIRE STONE FLEX 38R/38D	CONTITECH FT 330-29 773	CONTITECH FT 330-29 430
FIRE STONE 095.0047	FIRE STONE W01-358-8013	FT 330-29 498
GOODYEAR FLEX 556 3 3 8334	GOODYEAR 3B12-305	FT 330-29 503
578 93 3 100	AIRKRAFT 115035	FT 330-29 702
	CONTITECH FT 330-29 432	FIRE STONE W01 358 8006
	FIRE STONE W01-358-8010	W01 358 8030
	GOODYEAR 3B12-301	GOODYEAR 3B12-304
