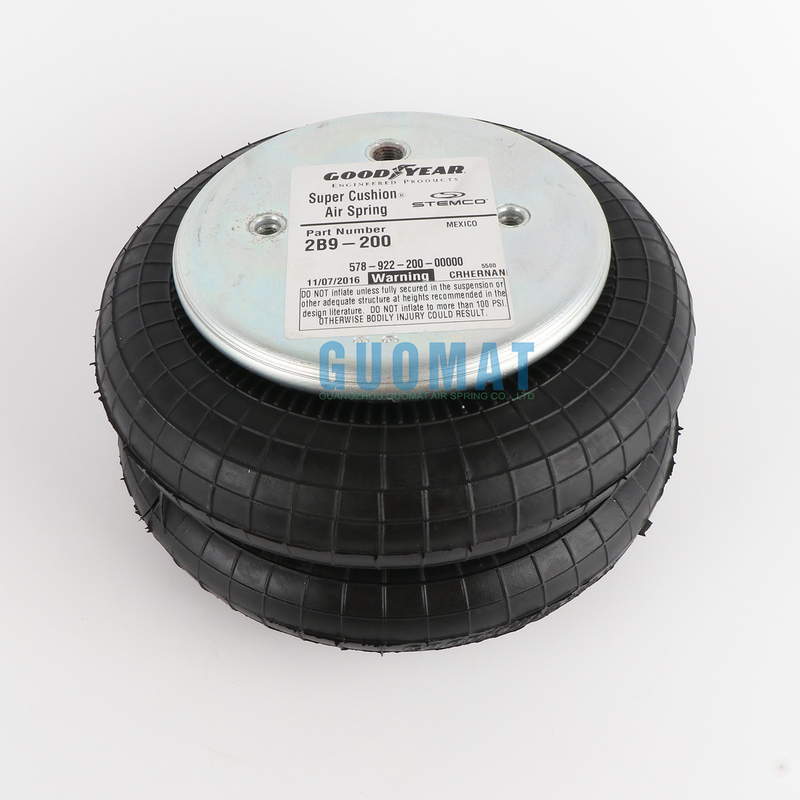

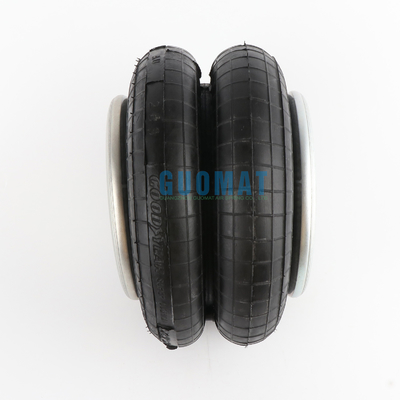

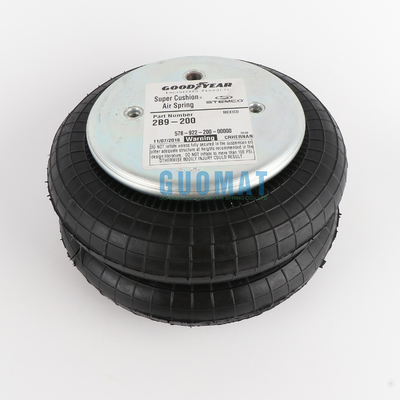

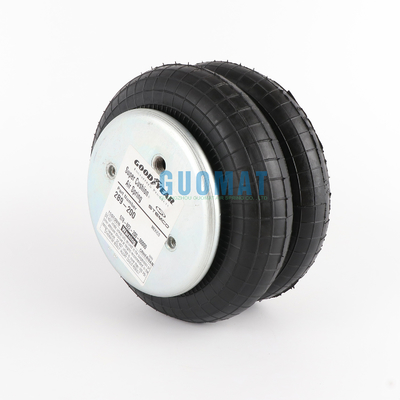

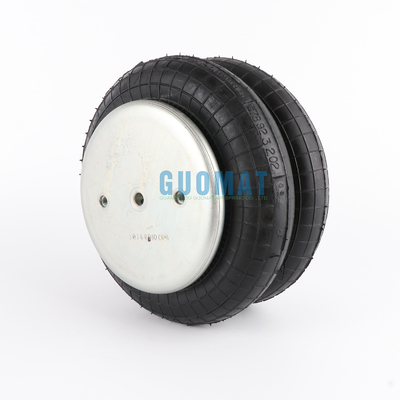

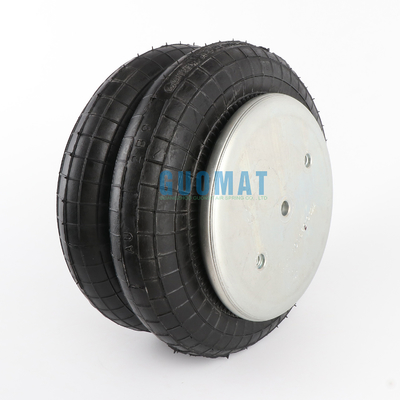

Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor

Product Details:

Place of Origin:	Mexico
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	2B9-200

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-199.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Car Make:	All	Brand:	Goodyear
N.W.:	3.5 Kg	Pressure Ability:	0.2-0.8 M PA
Maximum Diameter:	251 Mm	Transport Package:	Cartons
Specification:	242424 Cm	Trademark:	Goodyear
Warranty:	One Year	Type:	Gas-Filled
Highlight:	2b8-155 Goodyear Air Spring , 2b9-202 Goodyear Air Spring , 2b9-200 Goodyear Air Spring

Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absorbers

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.48 kilograms
Package size: 20.25 x 12.33 x 7.26 cm
Model: 2B9-200

2B9-200 Goodyear Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm

Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm

Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm

Bumper block / Buffer block
Without Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop

2B9-200 Cross others OEM

OEM Reference	OEM Reference
Granning: 1371	Taurus: AS218-6910
Triangle Spring: 4320	Dallas Spring: AS6910
Fire stone air spring: 6910	Sirco: AS-6910
Conti Tech: 64267	Midland/Haldex: CS209200
R & S Truck: 1027405	Euclid/Meritor Aftermarket: E-FS6910
Ridewell: 1003586910C	Conti Tech: FD200-19320
Batco: 10-96910	Euclid/Meritor Aftermarket: FS6910
Reyco: 23704-01	BWP: M-3501
Hendrickson: 45843-3	HD America: PMABG-6910B
Navistar/IHC: 554783C1	Ridewell: S4512C
UCF/Impex: AB-2B9-200	Leland: SC201
Automann: ABSP2B12R-6910	Leland: SC2011
Watson & Chalin: AS0001

Goodyear #:	2B9-200
Bellows type: double
Ultraman Bellows #:	SP2B12R
Flint Bellow #:	20F is 20
Goodyear Bellows #:	578-92-3-202
Contitech bellows #:	FD 200-19
Triangle bellows #:	6325
Base plate / neutron type:
Number of top plate holes / studs:	3
Top plate diameter:	6.4 inch	162.56 mm
Top plate C to C diameter:	3.5 inch	88.9 mm
Base plate hole bolt Qyt:
Base plate diameter:	6.4 inch	162.56 mm
Base plate C to C diameter:	3.5 inch	88.9 mm
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 3.2	3.2 inch	81.28 mm
Maximum height: 10.8	10.8 inch	274.32 mm
