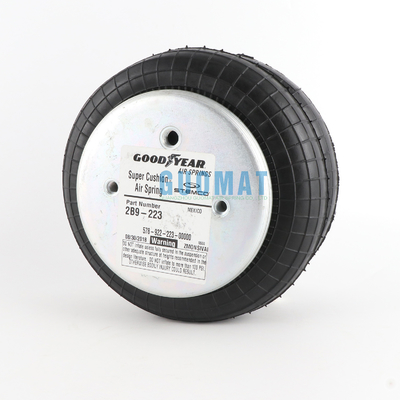

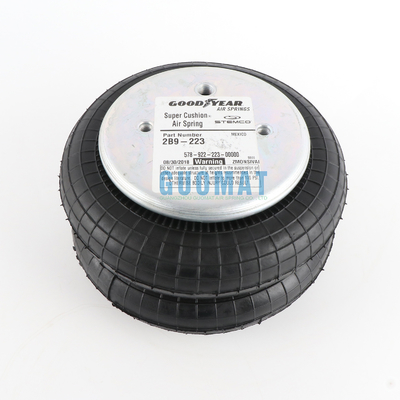

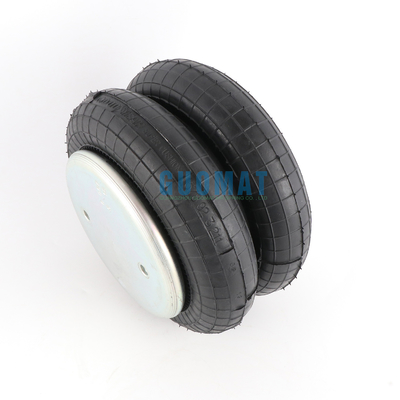

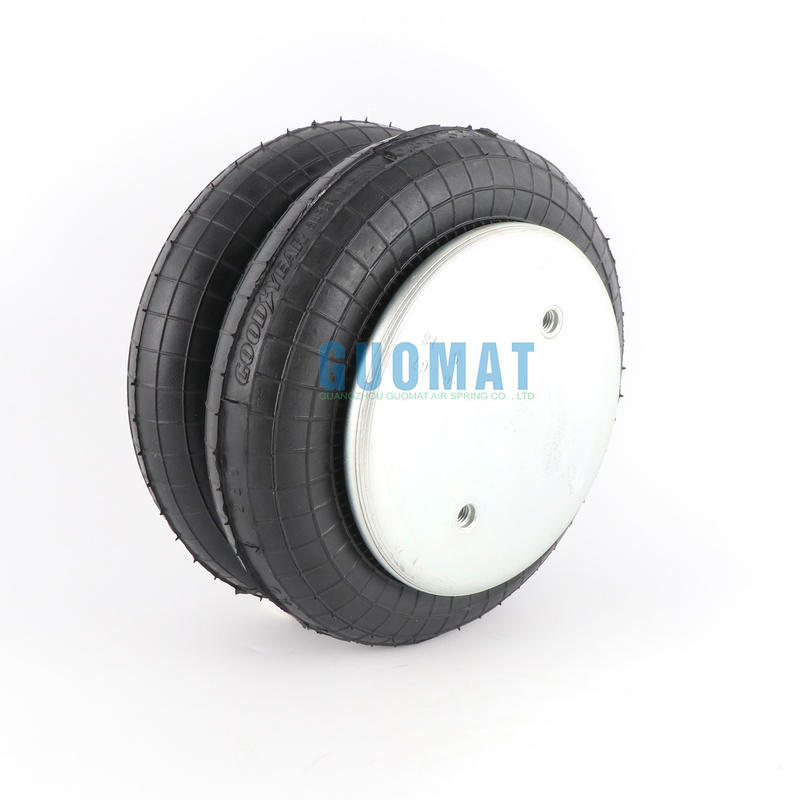

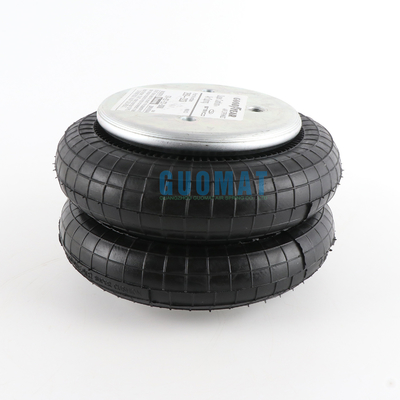

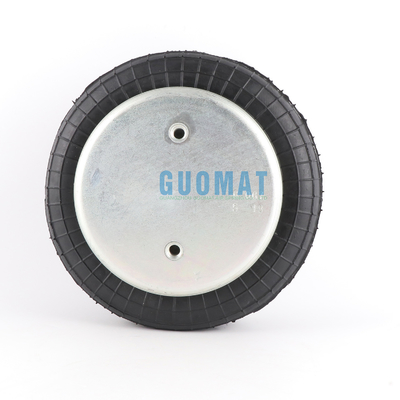

Air Suspension Spring Goodyear 2B9-223 Cross Contitech FD 200-19 1/4 M10

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B9223

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B9-223	Trademark:	GUOAMT
Air Inlet:	1/4 NPTF	Natural Diameter:	224MM
Stroke Height:	285MM	OEM Number:	W01-M58-7887
Vibration Frequency:	2.7 HZ	Keywords:	Air Suspension Shock Absorber
Highlight:	Air Suspension Spring Goodyear 2B9-223 , Air Suspension Spring Goodyear

Air Suspension Spring Goodyear 2B9-223 Cross Contitech FD 200-19 1/4 M10

Product Description

Air springs are highly durable, precisely designed, and cost-effective, making them ideal for various drive and vibration isolation applications.
GUOMAT air suspensions incorporate a time-tested design, natural rubber flexible components, and corrosion-resistant end fittings, delivering outstanding quality and performance.

Product Technical Parameters

Nut / Blind Nut	Top Cover Plate Screw (Nut) Tooth: 2 pcs X M10
	Screw Center Distance of Top Cover Plate: 89 mm
	Bottom Cover Plate Screw (Nut) Tooth: 2 pcs X M10
	Screw Center Distance of Bottom Cover Plate: 89 mm
Gas Hole / Air inlet / Air Fitting	Gas Hole / Air inlet : 1/4
Gas Hole / Air inlet / Air Fitting	Screw Center Distance Between Gas Hole and Nut: 44.5 mm
Cover Plate	Top Cover Plate Diameter: 162.5 mm
Cover Plate	Bottom Cover Plate Diameter: 162.5 mm
Rubber Bellows	Rubber Bellows MAX Diameter: 251 mm
	Rubber Bellows Natural Diameter: 224 mm
	The Working Stroke: MIN 75 mm to MAX 260 mm
	Maximum Height: 260 mm
	Minimum Height:75mm
	Stroke Height: 285 mm

Cross Interchange Parts

Phoenix: SP 2 B 12 R
Primeride: 5200-19 A P01
Springride: 2B9-223
Springride: Flex 578-92-3-211
Firestone: Style 20
Firestone No.: W01-M58-6887
Firestone No.: W01-M58-6910
Firestone No.: W01-M58-7887
Goodyear: 2B9-223
Goodyear Flex No.: 578-92-3-211
Vibracoustic: VSP2B12R
CF Gomma Ref.: 20
CF Gomma No.: 206797
Dunlop F: S09201NB
Dunlop UK: 01128A-AP
Gart Ref.: T291/2
Gart No.: 291.2.200
Airtech Ref.: 2B-220
Airtech No.: 113001
Prime-Ride New: 2B9-223
Prime-Ride New Flex No.: 578-92-3-211

FAQ

Q: Is it possible to receive a proforma invoice?
A: Yes, we will send you a proforma invoice if you choose for the payment method: ‘Bank Transfer Payment’ at the check out.

You can pay with bank transfer, PayPal or Credit Card after you have received the proforma invoice. We will ship your order out as soon as we have received the payment.

Q: Do you offer any warranty?
A: Yes, we offer ONE YEAR warranty on all of our products (new and used).

Q: Do you test all goods before delivery?
A: Yes, 100% tested before delivery.

Q: How do you correctly identify the products you need?
A: Supply part number,we can check directly.
Engine and gearbox parts;if you don't know part code,try to found engine or gear model and number.
