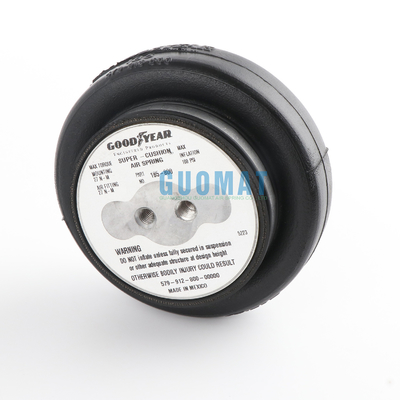

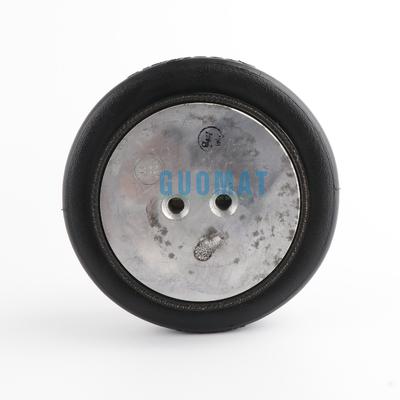

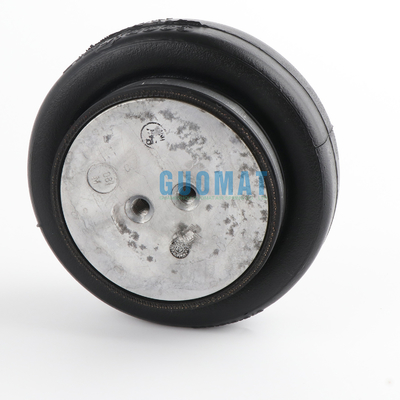

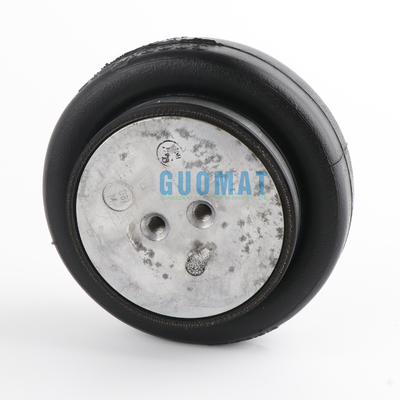

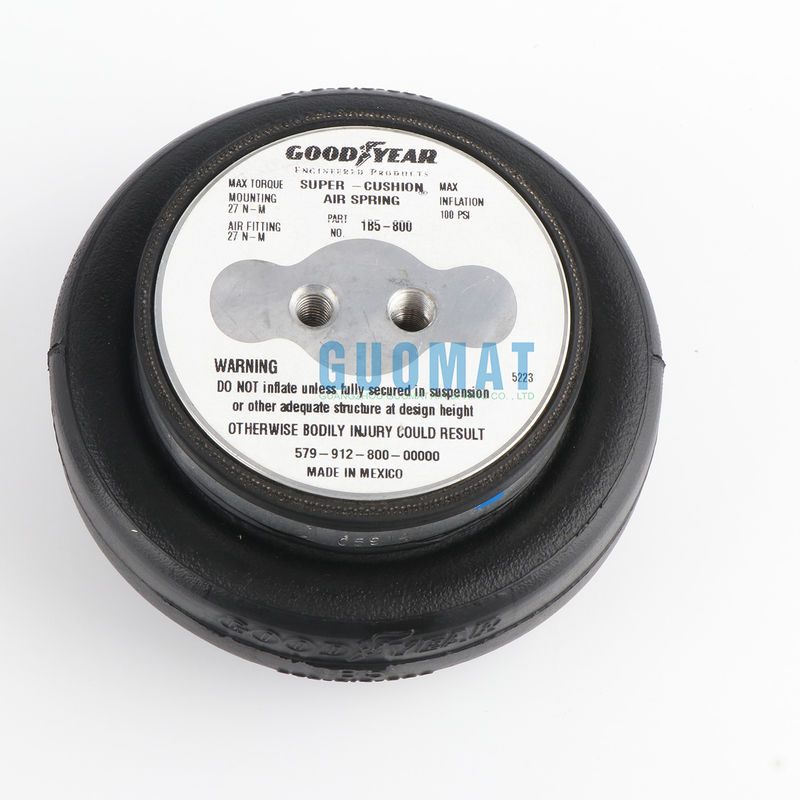

Papermaking Textile Machinery Goodyear Air Spring 1B5-800 Rubber NO. 579-91-2-800

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B5-800

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B5-800	Type:	Shock Absorber
Trademark:	GUOMAT	Application:	For Truck
Specification:	Natural Rubber	Operation:	Gas-filled
Structure:	Single Cylinder	Warranty:	One Year
Highlight:	Goodyear Air Spring 1B5-800 , Goodyear Air Spring 579-91-2-800

Papermaking Textile Machinery Goodyear Air Spring 1B5-800 Rubber NO. 579-91-2-800

Product Specification

Top Plate Screw (Nut) Teeth: 2×M×1.25

Screw (Nut) Teeth of the Bottom Cover Plate: 2×M×1.25

The Screw Center Distance of the Bottom Cover Plate: 20 mm

Air Hole/Air Inlet: G1/8

The Distance Air Hole Between Screw: 20 mm

Top Plate Diameter: 90 mm

Diameter of the Bottom Plate: 90 mm

Max Diameter: 145.5 mm

Working Stroke: 50 mm to 110 mm

Bumper: No

Goodyear 1B5-800 Can Replace The Following Numbers

Goodyear Part number: 1B5 -800 /1B5 800 11B5800

Goodyear Flex No. Part number: 579-913-500

Goodyear Flex No. Part number: 579913 500

Goodyear Flex No. Part number: 579913500

ContiTech Part number: FS 40-6 CI G1/8 M8

ContiTech Part number: FS 40-6 CI 1/8 M8

ContiTech Part number: FS 40-6 G1/8 M8

ContiTech Part number: FS 40-6 1/8 M8

ContiTech Bellow Part number: FS 40-6 1 FS40-6/ FS406

Enidine Part number: YM FS 40-6 1 YMFS40-6 1 YMFS406

Enidine Part number: YM FS 40-6 CI G1/8 M8

Enidine Part number: YI FS 40-6-000 1 YIFS40-6-000 1 YIFS406000

Enidine Part number: YI FS 40-6 CI 1/8NPT 3/8-16UNC

Phoenix Part number: SP1 B 041 SP1B04

Fes to Air Spring Part number: EB-145-60/ EB 145 60/ EB14560

Enidine Part number: YI-1B5- 800/ YI1B5 800 1 Yl1B5800

Weforma Part number: WBE100-E1 1 WBE100 E1 / WBE100E1

Numatics Part number: ASNS10-2-1/ ASNS102 1/ ASNS1021

Vigor Part number: 1B 5001/ 1B5001

Vigor Bellow Part number: 1B40-6/ 1B406 /1B406

VKNTECH Part number: 1B 4060 11B4060

VKNTECH Bellow Part number: 1B40-6 /1B406 /1B406.

EAA Part number: 1E40-6 /1E406 /1E406

Rubber Damage from Chemicals

Grease and oil are common examples that can cause this condition after
prolonged contact with the rubber flexible member.
Possible causes:
Excessive oil in the air supply.
Excessive greasing of universal joints.
Excessive greasing of the fifth wheel.
Leaking seals in suspension components.
Use of petroleum based cleaners on the air spring (use only soap and water for cleaning)

Goodyear Otehr Types Air Springs

1B12-305	1B12-313	2B6-530	2B6-531	3B12-304	3B12-305
1B14-350	1B14-351	2B6-532	2B6-535	3B14-351	3B14-353
1B14-352	1B14-362	2B6-536	2B7-540	3B14-354	3B15-375
1B14-364	1B15-375	2B7-541	2B7-542	3B15-376	3B15-377
1B15-376	1B15-377	2B7-545	2B7-546	3B15-378
1B15-378		2B8-550	2B8-552
		2B8-553	2B8-554
		2B9-200	2B9-201
		2B9-204	2B9-205
		2B9-216	2B9-250
		2B9-251	2B9-253
		2B12-309	2B12-218
		2B12-425	2B12-429
		2B12-437	2B12-416
		2B14-352	2B14-353
		2B14-354	2B14-355
		2B14-362	2B14-363
		2B14-452	2B15-375
		2B15-376	2B15-377
		2B15-378	2B19-8433
		2B22-8539
