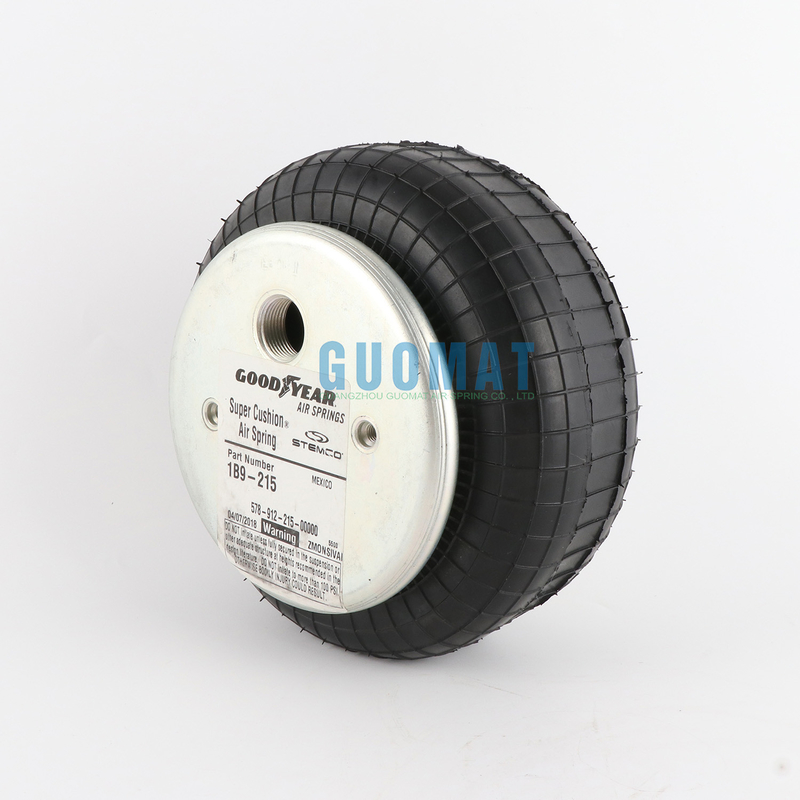

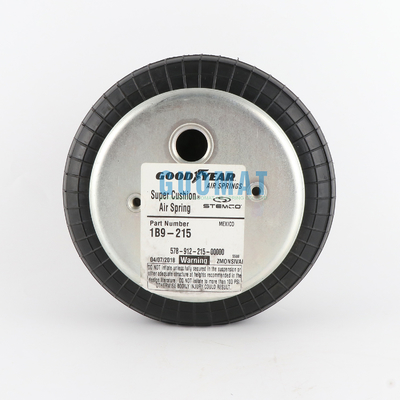

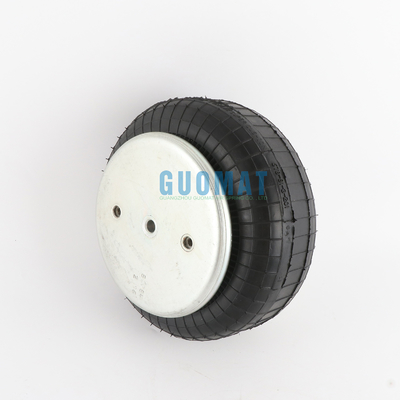

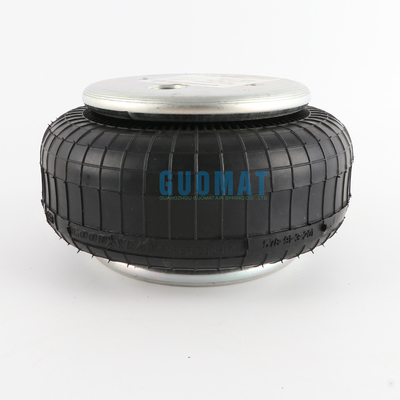

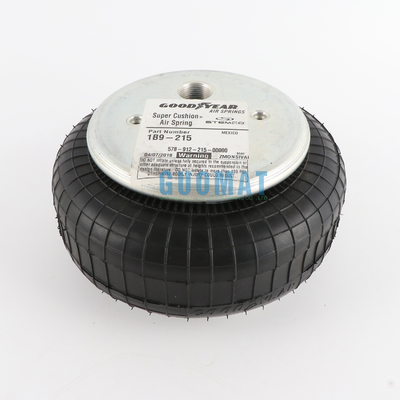

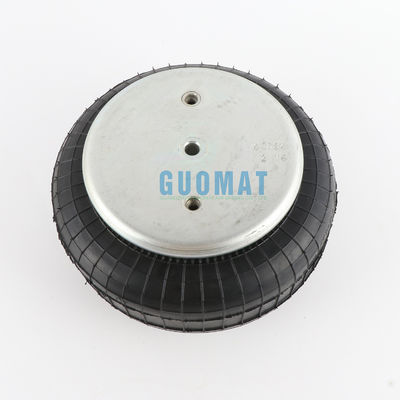

578-91-3-201 Goodyear Air Spring 1B9-215 Goodyear Industrial Air Bags Cross to ENIDINE YI-1B9-215

578-91-3-201 Goodyear Air Spring 1B9-215 Goodyear Industrial Air Bags Cross to ENIDINE YI-1B9-215



OEM Original Equipment Manufacturer:

Goodyear Part number:1B9-215

Goodyear Part number:1B9215

Goodyear Part number:1B9 215

Goodyear bellows number: 578912215

Goodyear  bellows number:578-91-2-215

Goodyear  bellows number:578 91 3 201
Goodyear  bellows number:578-91-3-201
Goodyear  bellows number:578913201

ENIDINE Part number:YI-1B9-215

ENIDINE Part number:YI1B9215

Nut/blind nut

Top plate screw (nut) teeth: 2 x M8-16UNC

The screw center distance of the top cover plate: 89 mm

Screw (nut) teeth of the bottom cover plate: 2 x M8-16UNC

Screw center distance of bottom cover plate: 89 mm



Air hole/air inlet/air fitting

Air hole/air inlet: 3 / 4NPT

Center distance between nut and air inlet: 44.5 mm



Cover plate

Top plate diameter (width): 160 mm

Diameter of bottom cover (width): 160 mm



Rubber bellows

Rubber bellows diameter: 222 mm

Compressed height: 100 mm / 4.1 inches

Maximum height: 160 mm

Working stroke: 60 mm


 Bumper block / Buffer block

Without Bumper Block

 Girdle Hoop / Girdle Ring

With Girdle Hoop :No of Girdle Hoop

SPRING FEATURES

LOAD RANGE(ISOLATOR)........

.640-3900|b

DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in

USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in

USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in

ASSEMBLY WE I GHT

FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib

NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in

1B9-215 Goodyear Cross OEM

Firestone Air Spring:W01-M58-6374

Firestone Air Spring:W01 M58 6374

Firestone Air Spring:W01M586374

Conti Tech:FS 200-10 CI G 3/4

Conti Tech:FS200-10 CI G 3/4

Goodyear 1B9-215;1B9 215;1B9215
