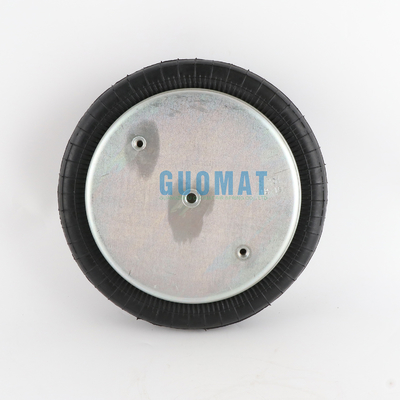

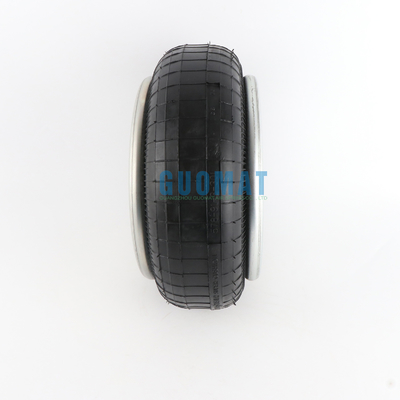

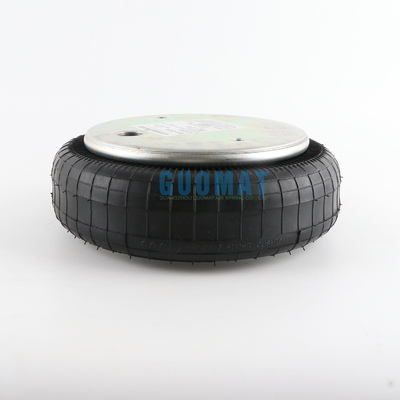

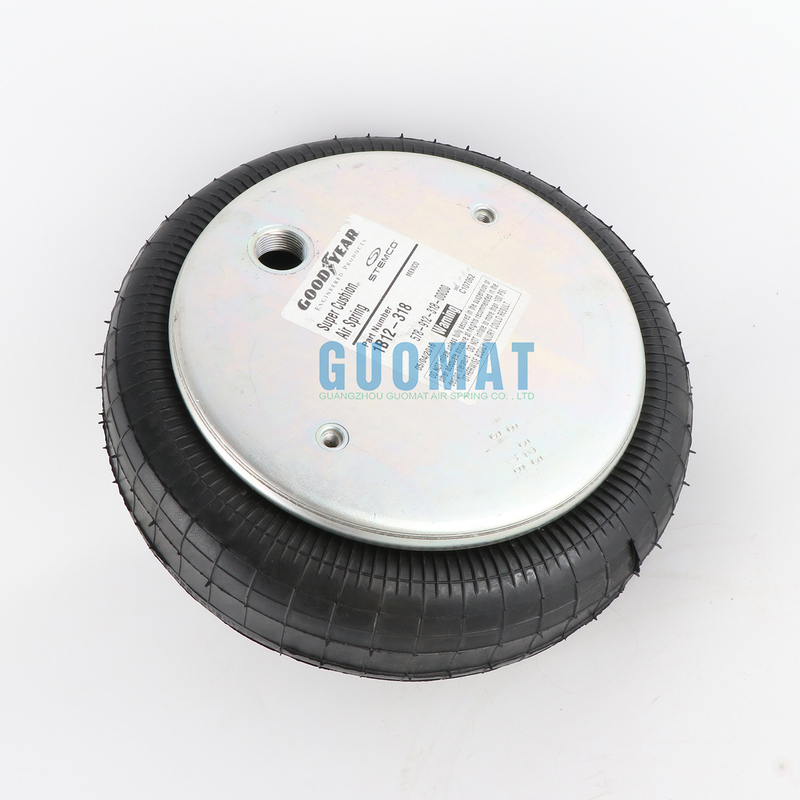

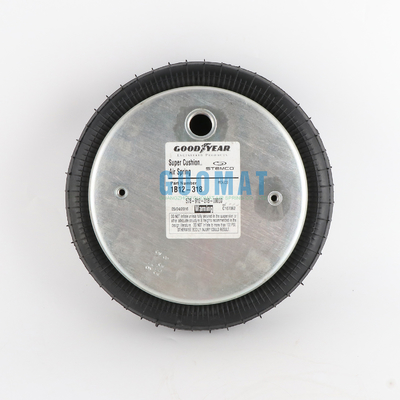

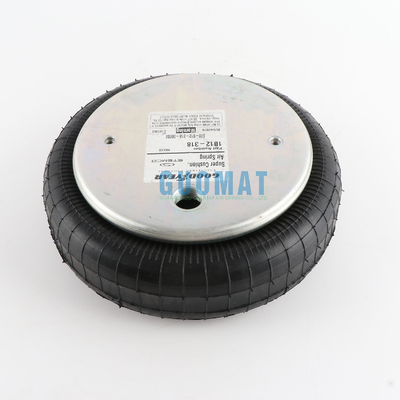

1B12-313 Goodyear Single Bellow Air Spring Contitech FS 330-11 for Truck Air Bag

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B12-313

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B12-313	Trademark:	GUOMAT
Min. Height:	2.3 Inches	Max. Height:	7.2 Inches
Contitech OEM NO.:	FS 330-11 474	Bellows Type:	Single Convoluted
Purpose:	For Replace / Repair	Condition:	100% Brand New
Highlight:	1B12-313 Goodyear Single Bellow Air Spring , Goodyear Single Bellow Air Spring , Truck Single Bellow Air Spring

1B12-313 Goodyear Single Bellow Air Spring Contitech FS 330-11 for Truck Air Bag

Product Information

Top Plate Hole/Stud Qty: 3

Top Plate Dia.: 9 in.

Top Plate C to C Diameter: 6.2 in.

Bottom Plate Hole/Stud Qty: 2

Bottom Plate Dia.: 9 in.

Bottom Plate C to C diameter: 6.2 in.

Bottom Plate Alignment: Parallel

Bumper: No

Minimum Height: 2.3 in.

Maximum Height: 7.2 in.

OEM Original Manufacturer

Goodyear Part number: 1B12-313

Bellows type: single

Ultraman bellows Part number: SP1B22A

Fire stone Air Spring bellows Part number: Not applicable

Goodyear Bellows number: 578-91-3-301

Contitech bellows Part number: FS 330-11

Triangle bellows Part number: 6374

Goodyear Original: 1B12-313

The usual below kinds of Goodyear air spring we have

Assembly Number	Max OD @100 PSIG (Inches)	Design Load Range (pounds)	Design Height Range (Inches)	Usable Stroke (Inches)	Min Comp Height (Inches)	Max Ext Height (Inches)	Bumper Included	Approximate Isolation Percent				Air Fitting Size (Inches)
								For a Distributing Frequency Of:
								435 CPM	870 CPM	1160 CPM	1750 CPM
1B12-301	13.2	1,350 - 8,800	3.0 - 5.0	4.6	2.6	7.2	YES	89	97	98	99	1/4 OS
1B12-304	13.2	1,350 - 8,800	3.0 - 5.0	4.9	2.3	7.2	NO	89	97	98	99	3/4 OS
1B12-305	13.2	1,350 - 8,800	3.0 - 5.0	4.6	2.6	7.2	YES	89	97	98	99	3/4 OS
1B12-313	13.2	1,350 - 8,800	3.0 - 5.0	4.9	2.3	7.2	NO	89	97	98	99	1/4 OS

Goodyear Single Convoluted Air Springs

Part No.	Usable Stroke	Max Dia. @ 100 psi In	Min Height Inches	Max Height Inches	Bumper	Force At Actuator Height Limit (Pounds)				Force At Compressed Height Limit (Pounds)
Part No.	Usable Stroke	Max Dia. @ 100 psi In	Min Height Inches	Max Height Inches	Bumper	100 psi	80 psi	60 psi	40 psi	100 psi	80 psi	60 psi	40 psi
1B12-305	4.6	13.2	2.6	7.2	YES	3640	2710	1840	1095	9035	7110	5250	3480
1B12-313	4.9	13.2	2.3	7.2	NO	3640	2710	1840	1095	9195	7185	5305	3520
1B14-350	1.9	15.2	2.3	7.2	NO	4910	3705	2625	1605	13320	10585	7975	5290
1B14-351	3.0	15.2	4.2	7.2	YES	4910	3705	2625	1605	11760	9345	7000	4630
1B14-352	4.9	15.2	2.3	7.2	NO	4910	3705	2625	1605	13320	10585	7975	5290
1B14-362	3.0	15.9	2.3	8.3	NO	4865	3625	2530	1520	14870	11705	8730	4795
1B14-364	6.0	15.9	2.3	8.3	NO	4865	3625	2530	1520	14870	11705	8730	5795
1B15-375	5.6	17.5	2.3	7.9	NO	4980	3775	2470	1490	16750	13450	9665	6510
1B15-376	3.7	17.5	4.2	7.9	YES	4980	3775	2470	1490	13960	11140	8295	54656
1B15-377	5.6	17.5	2.3	7.9	NO	4980	3775	2470	1490	16750	13450	9665	6510
1B15-378	3.7	17.5	4.2	7.9	YES	4980	3775	2470	1490	13960	11140	8295	5465
