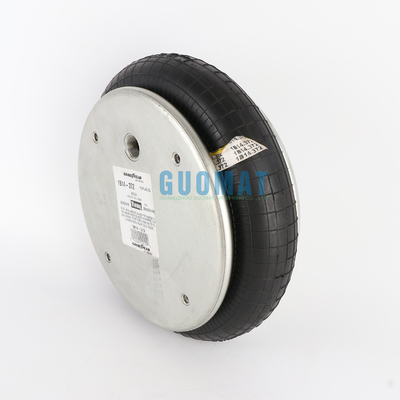

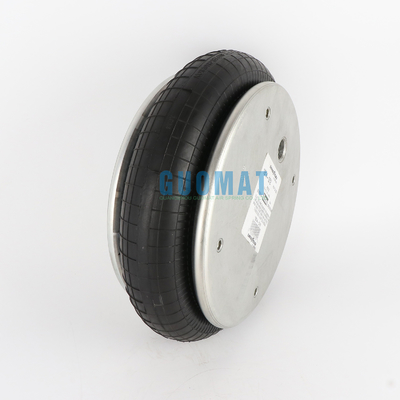

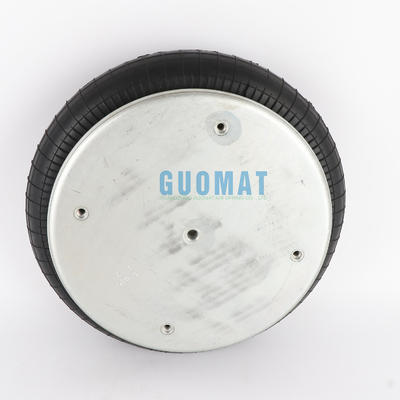

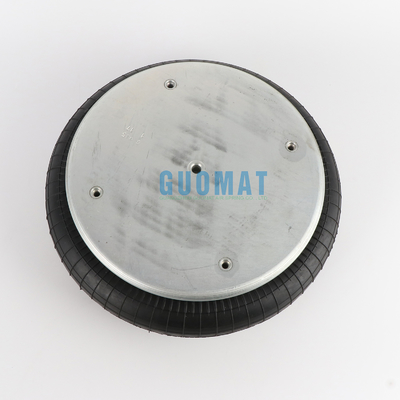

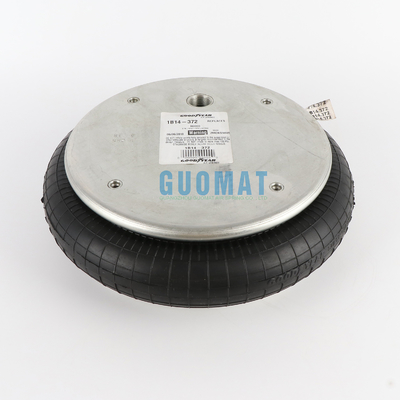

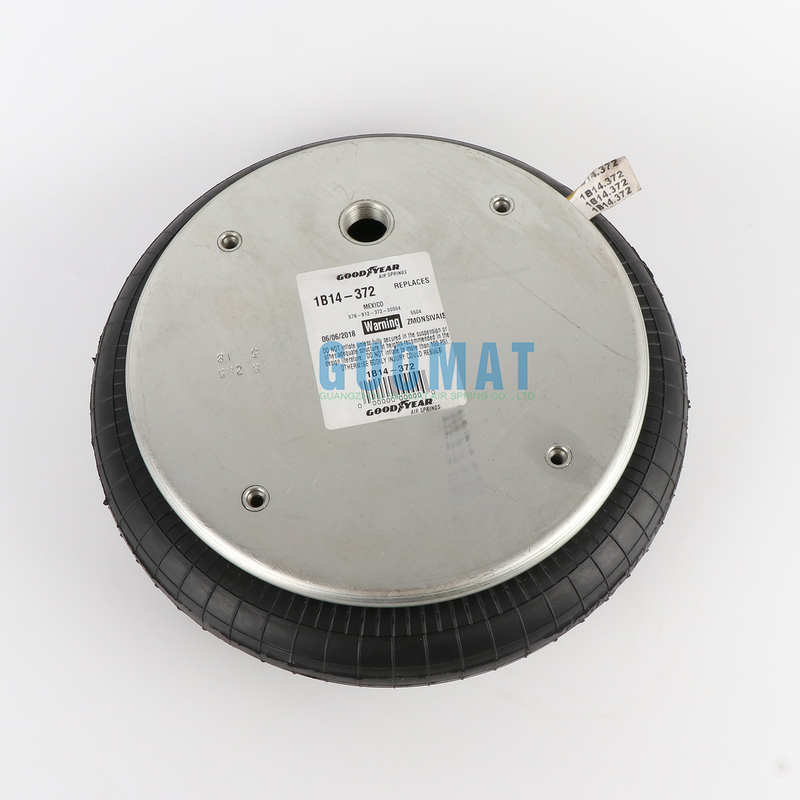

1B14-372 Goodyear Air Springs Single Convoluted Air Spring USA Original Big Suspension For Machine

Product Details:

Place of Origin:	Mexico
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1B14-372

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-199.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B14-372	Type:	Shock Absorber
N.W.:	5.5 Kg	Pressure Ability:	0.2-0.8 M PA
Maximum Diameter:	386 Mm	Transport Package:	Cartons
Specification:	333322 Cm	Trademark:	Goodyear
Origin:	Mexico	Warranty:	One Year
Highlight:	Single Convoluted Goodyear Air Springs , Machine Goodyear Air Springs , USA Original Goodyear Air Springs

1B14-372 Goodyear Air Springs Single Convoluted Air Spring USA Original Big Suspension For Machine

1B14-372 Goodyear Specifications and Technical Data

Goodyear part number:1B14-372 ;
Goodyear part number:1B14 372;
Goodyear part number:1B14372

Goodyear Bellows 578 912 372;
Goodyear Bellows 578912372;
Goodyear Bellows 578-91-2-372

Cross Contitech NO.:FS 530-14;
Cross Contitech NO.:FS53014;
Cross Contitech NO.:FS530-14

Fire stone Air Spring:W01-M58-6369

Fire stone Air Spring:W01 M58 6369

Contitech:FS 530-14 CI G 3/4
Contitech:FS530-14 CI G 3/4

nuts/blind nuts

Upper cover screw (nut) teeth: 4 X M8

Top plate screw center distance: 158.8 mm

Screw (nut) teeth of the bottom cover plate: 4 x M8

The screw center distance of the bottom cover plate: 158.8 mm

The air hole distance between the nuts is 79.4 mm

Ga air hole/air inlet/air fitting

Air hole/air inlet: 3/4 N P.T.F.

over cover

Top plate diameter (width): 289mm

Diameter (width) of the bottom cover plate: 289 mm

Bell rubber bellows

Rubber bellows natural diameter 380 mm

Maximum diameter of rubber bellows: 406 mm

Natural height of rubber bellows: 120 mm

Working stroke: maximum 160 mm to minimum 81 mm

B bumper block/buffer block

No bumper block

Other kinds of goodyear air springs:

57891235000019	57891235000019	20094306	Y	ENIDINE YI-1B14-350	ENIDINE YI-1B14-350
57891235100000	57891235100000	20094308	Y	1B14-351	1B14-351
57891235100004	1B14-351	20094309	N	1B14-351 Bellows Air Spring	1B14-351 Bellows Air Spring
57891235100019	57891235100019	20094310	Y	ENIDINE YI-1B14-351	ENIDINE YI-1B14-351
57891235200000	57891235200000	20094312	Y	1B14-352	1B14-352
57891235200004	1B14-352	20116210	N	1B14-352	1B14-352
57891235200019	57891235200019	20094313	Y	ENIDINE YI-1B14-352	ENIDINE YI-1B14-352
57891235300000	57891235300000	20094314	Y	1B14-353	1B14-353
57891235300004	1B14-353	20116211	N	1B14-353	1B14-353
57891235300019	57891235300019	20094315	Y	ENIDINE YI-1B14-353	ENIDINE YI-1B14-353
57891235800000	57891235800000	20094316	Y	1B14-358	1B14-358
57891235800004	1B14-358	20035777	N	1B14-358 Bellows Air Spring	1B14-358 Bellows Air Spring
57891236200000	57891236200000	20094323	Y	1B14-362	1B14-362
57891236200004	57891236200004	20116212	Y	1B14-362	1B14-362
57891236200019	57891236200019	20094324	Y	ENIDINE YI-1B14-362	ENIDINE YI-1B14-362
57891236400000	57891236400000	20094325	Y	1B14-364 EXT	1B14-364 EXT
57891236400004	1B14-364	20094326	N	1B14-364	1B14-364
57891236400019	57891236400019	20094327	Y	ENIDINE YI-1B14-364	ENIDINE YI-1B14-364
57891236800094	57891236800094	20811431	Y	C 1B14-352	C 1B14-352
57891237100000	57891237100000	20094334	Y	1B14-371	1B14-371
57891237100019	57891237100019	20094335	Y	ENIDINE YI-1B14-371	ENIDINE YI-1B14-371
57891237200019	1B14-372	20106777	Y	1B14-372	1B14-372
57891237300000	57891237300000	20140234	Y	1B14-373	1B14-373
57891237300004	1B14-373	20140235	N	1B14-373 Bellows Air Spring	1B14-373 Bellows Air Spring
