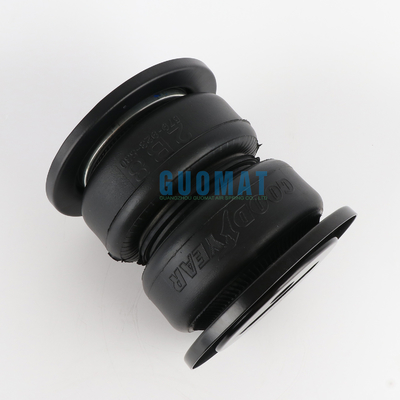

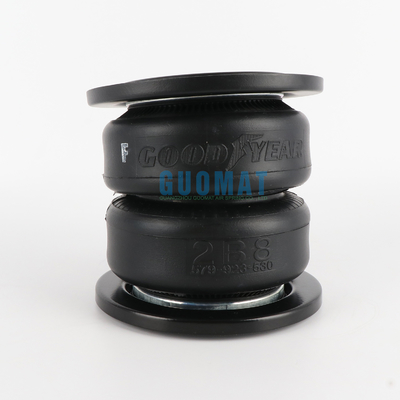

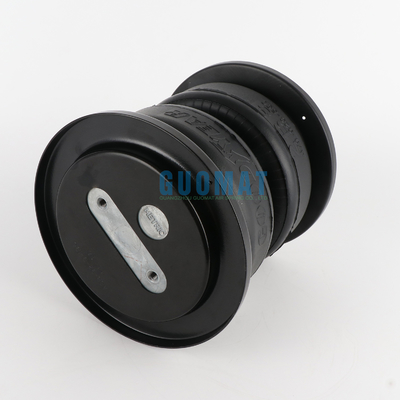

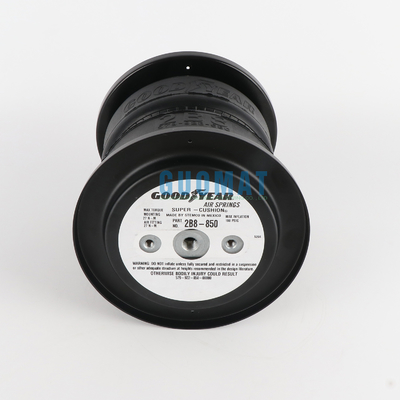

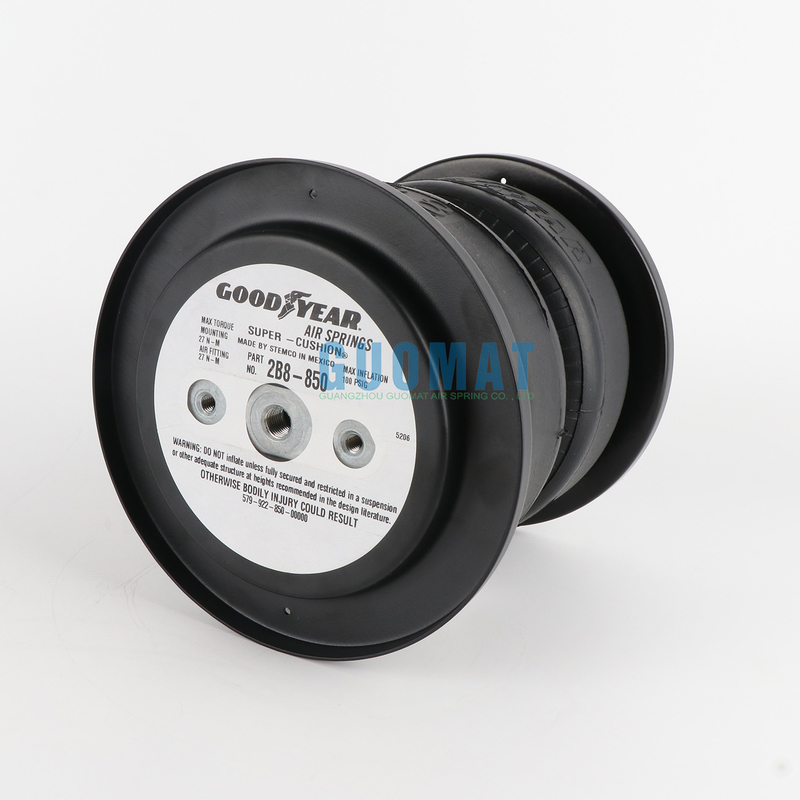

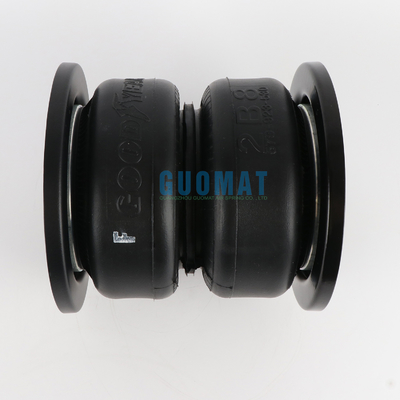

Goodyear 2B8-850 Air Rubber Bellow FD 120-20 CI G1/4 Firestone W01-M58-6353

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B8-850

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B8-850	Pressure Ability:	0.2-0.8 M PA
Manufacturer:	GUOMAT	OEM NO.:	YS-2B8-850
MIN Height:	77MM	MAX Height:	270MM
Fitment Type:	Direct Replacement	Ships From:	Any Port In China
Highlight:	Goodyear 2B8-850 Air Rubber Bellow , Air Rubber Bellow W01-M58-6353

Goodyear 2B8-850 Air Rubber Bellow FD 120-20 CI G1/4 Firestone W01-M58-6353

Technical Data

Expanded Height: 270mm

Static Height: 196mm

Compressed Height: 77mm
Max. Diameter: 185mm

Screw Type: M8-H6

C to C Diameter: 70mm

Pneumatic Connection: G1/4

Stud / Hole Qty of The Top Plate: 3

Stud / Hole Qty of The Bottom Plate: 2

Replaces These Air Springs

Goodyear: 2B8-850 / 2B 5 850 / 2B8850

Goodyear Flex No.: 579-92-3-530 / 579 92 3 530 / 579923530

Contitech: FD 120-20 CI G1/4

Contitech: FD 120-20 CI G1/4 M8

Contitech: FD 120-20 CI 62055

Contitech Bellow: FD 120-20 / FD120-20 / FD12020

Firestone No.: W01-M58-6353 / W01 M58 6353 / W01M586353

Firestone Style: 26

Enidine: YI-2B8-850 / YI2B 850 / YI2B8850

Advantages of Our Shock Absorbers

- Enhanced Driving Comfort: Our shock absorbers effectively eliminate abnormal sounds, reduce noise, and minimize vibrations during driving, ensuring a smoother and more enjoyable ride.
- Lower Fuel Consumption & Extended Lifespan: They help decrease fuel usage, extend the lifespan of chassis-related components, and reduce overall vehicle maintenance costs.
- Superior Stability: Even on sharp turns, winding roads, or uneven terrain, our shock absorbers automatically adjust the vehicle's body height to maintain consistent comfort and ensure stability.

Double Convoluted Type Air Spring

Part NO.	Usable Stroke	Max Dia @ 100 psi In.	Min Height In.	Max Height In.	Force at Actuator H. Limit (Pounds)				Force at Compressed H. Limit (Pounds)
Part NO.	Usable Stroke	Max Dia @ 100 psi In.	Min Height In.	Max Height In.	100 psi	80 psi	60 psi	40 psi	100 psi	80 psi	60 psi	40 psi
2B6-530	4.5	6.5	2.8	7.7	595	405	235	95	2865	2320	1800	1255
2B6-531	4.5	6.5	2.8	7.7	595	405	235	95	2865	2320	1800	1255
2B6-532	4.3	6.5	3.4	7.7	595	405	235	95	2465	1940	1455	970
2B6-535	5.9	7.0	2.8	9.1	585	400	215	90	3395	2790	2170	1505
2B6-536	5.7	7.0	3.4	9.1	585	400	215	90	3000	2420	1820	1270
2B7-540	6.5	8.0	2.5	9.0	835	550	295	110	3220	2535	1860	1240
2B7-541	6.5	8.0	2.5	9.0	835	550	295	110	3220	2535	1860	1240
2B7-545	6.5	8.0	2.5	9.0	835	550	295	110	3220	2535	1860	1240
2B7-546	6.5	8.0	2.5	9.0	835	550	295	110	3220	2535	1860	1240
2B8-550	7.1	8.6	2.8	10.3	850	600	350	100	5150	4150	3100	2150
2B8-552	7.1	8.6	2.8	10.3	850	600	350	100	5150	4150	3100	2150
2B8-553	7.1	8.6	2.8	10.3	850	600	350	100	5150	4150	3100	2150
2B8-554	6.8	8.6	3.5	10.3	850	600	350	100	4650	3700	2800	1900
