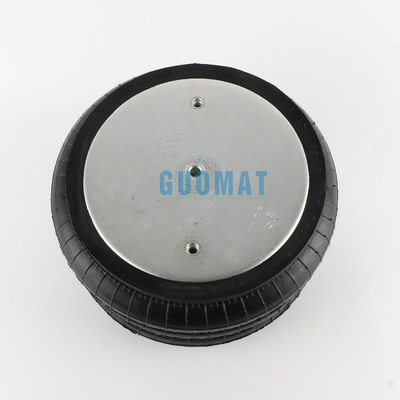

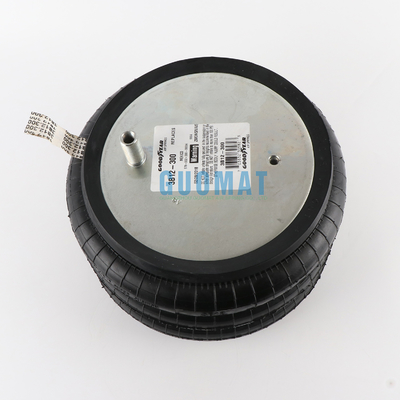

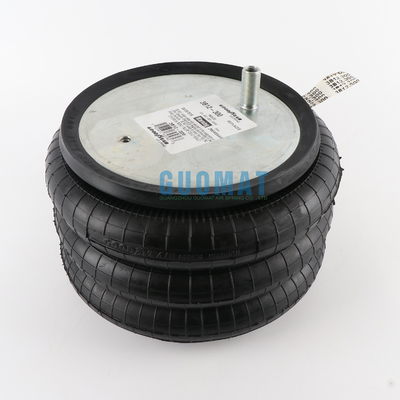

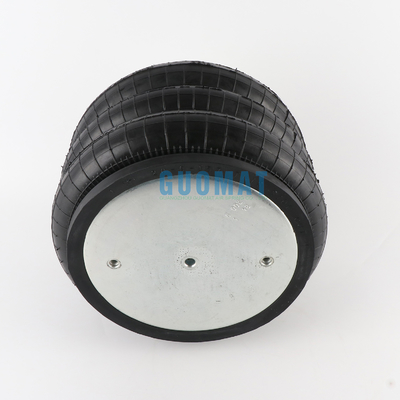

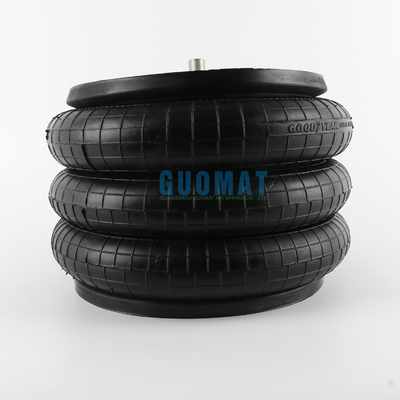

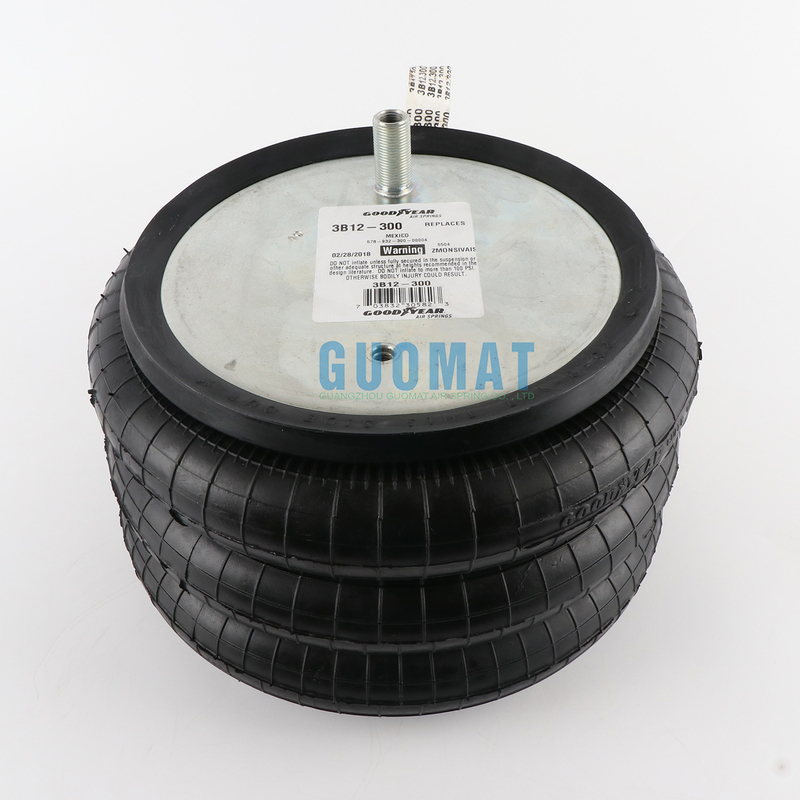

Goodyear Air Spring Original 3B12-300 Triple Convoluted Flexmember 578933100 Cross Firestone 8008

Goodyear Air Spring Original 3B12-300 Triple Convoluted Flexmember 578933100 Cross Firestone 8008

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-300

2B12-300 Goodyear Cross OEM

Goodyear Parts NO.:2B12-300 ;
Goodyear Parts NO.:2B12 300;
Goodyear Parts NO.:2B12300;
Goodyear Flexmember  Parts NO.:578933100
Goodyear Flexmember  Parts NO.:578 93 3 100
Goodyear Flexmember  Parts NO.:578-93-3-100


Firestone Air Spring Parts NO.:W01-358-8008

Firestone Air Spring Parts NO.::W01 358 8008

Firestone Air Spring Parts NO.::W013588008

Firestone Air Spring Parts NO.:W01-358-8025

Firestone Air Spring Parts NO.::W01 358 8025

Firestone Air Spring Parts NO.::W013588025

Flexible members: 578-93-3-100

piston:

Piston type:-

Goodyear Trim: 3B12300

Triangle spring: 4431

Triangle spring: 4469

Firestone Air Spring: 8008

Firestone Air Spring: 8025

By E-Z: 8030155

Neway: 57008008

Reedwell: 1003588008C

batco: 10-98008

UCF / Impex: AB-3B12-300

T.W. Distribution: AB8008

Ultraman: ABSP3B22R-8008

Watson & Chalin: AS0019

Dallas Spring: AS8008

Midland / Haldex: CS312300

Euclidean/Meritor Aftermarket: E-FS8008

Euclidean/Meritor Aftermarket: E-FS8025

Euclid / Meritor Aftermarket: FS8008

Euclid / Meritor Aftermarket: FS8025

Kangdi Technology: FT330-29431

Kangdi Technology: FT330-29469

BWP: M-3553

Leland: SC2130

3B12-300 Goodyear Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC

Top Cover Plate Screw (Nut) Tooth : 1 pcs X Stud - 3/4-16

Screw Center Distance of Top Cover Plate : 140 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

 Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

 Cover Plate

Top Cover Plate Diameter: 228.6 mm

Bottom Cover Plate Diameter: 228.6 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 120 mm to MAX 457 mm

Maximum Height : 457 mm

Minimum Height :120 mm

Stroke Height : 179mm

 Bumper block / Buffer block

Without Bumper Block

 Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Roof hole/stud: 2
Floor hole/stud: 2
Top plate diameter: 9
Base plate diameter: 9
Collapse height: 5.1
