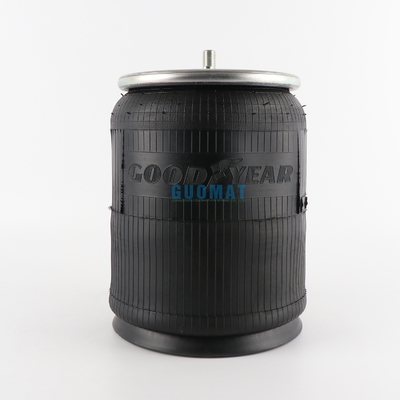

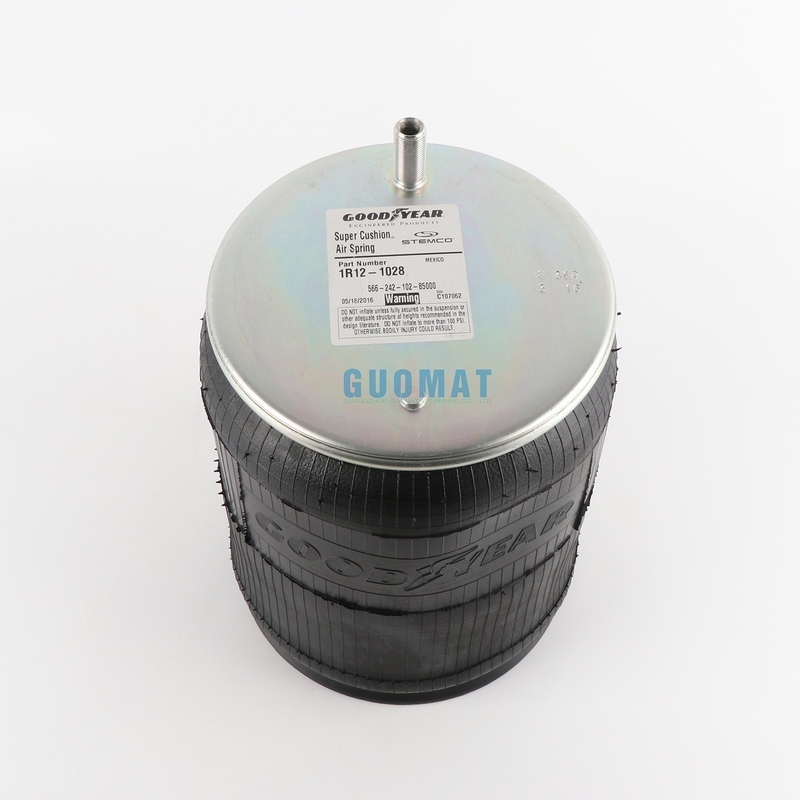

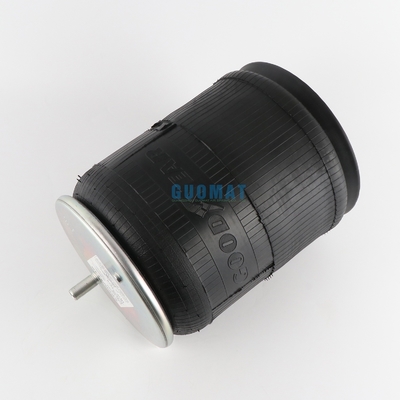

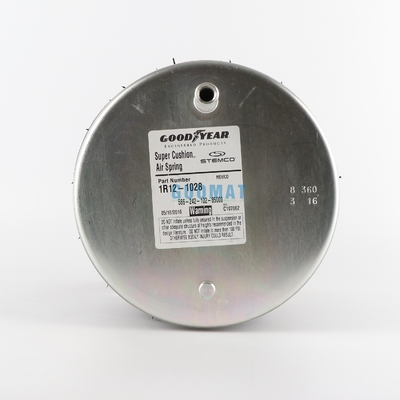

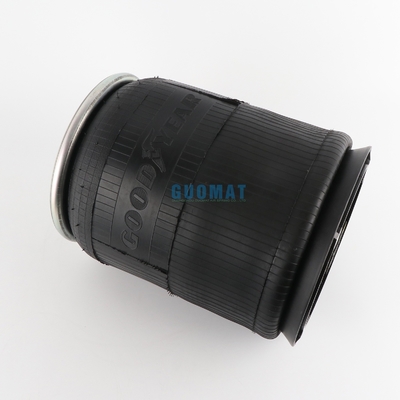

Goodyear Air Suspension 1R12-1028 Rolling Lobe Air Spring Bellow 56624210285 Shocks SP SP66 56

Product Details:

Place of Origin:	Mexico
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1R12-1028

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Suspension Spring	N.W.:	10.0 Kg
Pressure Ability:	0.2-0.8 M PA	Plate Diameter:	228.6 Mm
Specification:	292929cm	Trademark:	Goodyear
Origin:	Mexico	Material:	Rubber And Iron
Car Make:	Hendrickson	Position:	Front And Rear
Highlight:	1R12-1028 Rolling Lobe Air Spring , Goodyear Rolling Lobe Air Spring

Goodyear Air Suspension 1R12-1028 Rolling Lobe Air Spring Bellow 56624210285 Shocks SP SP66 56

OEM Cross Number:

Manufacturer:Goodyear
Brand:Goodyear
Goodyear 1R12-1028
Goodyear 1R12 1028
Goodyear 1R121028
Goodyear Flexmember 56624210285

Top Plate Hole/Stud: 2
Bottom Plate Hole/Stud: 4
Top Plate Diameter: 228.6 MM
Bottom Plate Diameter:249 MM
Collapsed Height: 165.1 MM
Piston Type: C

Base plate / neutron type: composite material
Number of top plate holes / studs: 2
Top plate diameter: 228.6 MM
Top plate C to C diameter: 249 MM
Base plate hole bolt Qyt: 4
Base plate diameter: 249 MM
Diameter of base plates C to C: 199.898
Base plate alignment: parallel
Bumper: yes
Bracket: Not applicable
Minimum height: 165.1 MM
Maximum height: 525.78 MM

Goodyear Air Suspension 1r12-1028 Rolling Lobe Air Spring Bellow 56624210285 Shocks Sp Sp66 56

56624209700000	56624209700000	20092731	Y	1R12-097 SERVICE ASSY FOR 1R12-095	1R12-097 SERVICE ASSY FOR 1R12-095
56624209700004	1R12-097	20035871	N	1R12-097 Rolling Lobe Air Spring	1R12-097 Rolling Lobe Air Spring
56624210055000	56624210055000	20470556	Y	1R12-1005 NABI	1R12-1005 NABI
56624210085000	56624210085000	20524693	Y	1R12-1008	1R12-1008
56624210175004	56624210175004	20583677	Y	1R12-1017AN	1R12-1017AN
56624210255004	56624210255004	20583678	Y	1R12-1025AN	1R12-1025AN
56624210285000	56624210285000	20549486	N	1R12-1028	1R12-1028
56624210295004	56624210295004	20583718	Y	1R12-1029AN	1R12-1029AN
56624210300000	56624210300000	20054293	Y	1R12-103	1R12-103
56624210300004	1R12-103	20035872	N	1R12-103 Rolling Lobe Air Spring	1R12-103 Rolling Lobe Air Spring
56624210300019	56624210300019	20092750	Y	ENIDINE YI-1R12-103	ENIDINE YI-1R12-103
56624210305004	56624210305004	20583717	Y	1R12-1030AN	1R12-1030AN
56624210315004	56624210315004	20583711	Y	1R12-1031AN	1R12-1031AN
56624210380000	56624210380000	20682766	Y	1R12-1038 Oshkosh 3949144	1R12-1038 Oshkosh 3949144
56624210395000	56624210395000	20590055	Y	1R12-1039 VOL VO 21627074	1R12-1039 VOL VO 21627074
56624210395035	56624210395035	20612708	Y	VOL VO 21627074 1R12-1039	VOL VO 21627074 1R12-1039
56624210405000	56624210405000	20613773	Y	1R12-1040 Mac-k truck 21627076	1R12-1040 Mac-k truck 21627076
56624210405049	56624210405049	20612709	Y	1R12-1040 Mac-k truck 21627076	1R12-1040 Mac-k truck 21627076
56624210415000	56624210415000	20630333	Y	1R12-1041 Mac-k truck 21669088	1R12-1041 Mac-k truck 21669088
56624210415049	56624210415049	20630841	Y	1R12-1041 Mac-k truck 21669088	1R12-1041 Mac-k truck 21669088
56624210425071	56624210425071	20615249	Y	1R12-1042 MITSUBISHI SERVICE ASSBLY	1R12-1042 MITSUBISHI SERVICE ASSBLY
56624210475004	1R12-1047	20689392	N	1R12-1047 Rolling Lobe Air Spring	1R12-1047 Rolling Lobe Air Spring
56624210485004	1R12-1048	20737250	N	1R12-1048 Rolling Lobe Air Spring	1R12-1048 Rolling Lobe Air Spring
56624210495004	1R12-1049	20672740	N	1R12-1049 Rolling Lobe Air Spring	1R12-1049 Rolling Lobe Air Spring
56624210500000	56624210500000	20682658	Y	1R12-1050 PREVOST 630285	1R12-1050 PREVOST 630285
56624210515000	56624210515000	20689480	Y	VOL VO 22039026 1R12-1051	VOL VO 22039026 1R12-1051
56624210515035	56624210515035	20689483	Y	VOL VO 22039026 1R12-1051	VOL VO 22039026 1R12-1051
56624210600000	56624210600000	20466778	Y	1R12-106 NOVABUS PROTOTYPE	1R12-106 NOVABUS PROTOTYPE
56624210600083	1R12-1060	20682283	N	1R12-1060 FLT1R12090	1R12-1060 FLT1R12090
56624210610083	1R12-1061	20682286	N	1R12-1061 FLT1R12095	1R12-1061 FLT1R12095
56624210655004	1R12-1065	20713600	N	1R12-1065	1R12-1065
56624210655084	1R12-1065 BULK	20713089	N	1R12-1065 BULK	1R12-1065 BULK
56624210660000	56624210660000	20733971	Y	1R12-1066 PREVST 630286 Tag Blk Pck	1R12-1066 PREVST 630286 Tag Blk Pck
56624210660004	56624210660004	20697200	Y	1R12-1066 Prevost Tag Axle	1R12-1066 Prevost Tag Axle
56624210670000	56624210670000	20744274	Y	1R12-1067	1R12-1067
56624210695083	56624210695083	20682230	Y	1R12-1069 FLT1R12069	1R12-1069 FLT1R12069
56624210695085	1R12-1069	20746469	N	1R12-1069 SPRINGRIDE 1R12-069	1R12-1069 SPRINGRIDE 1R12-069
56624210705083	56624210705083	20682232	Y	1R12-1070 FLT1R12092	1R12-1070 FLT1R12092
56624210705085	1R12-1070	20746480	N	1R12-1070 SPRINGRIDE 1R12-092	1R12-1070 SPRINGRIDE 1R12-092
