Goodyear 1B12-313 Convoluted Rubber 1/4 UNC Air Spring Ride Suspension 578-91-3-301

Product Details:

Place of Origin:	Mexico
Brand Name:	Goodyear
Certification:	ISO/TS16949, ISO9001
Model Number:	1B12-313

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-129.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Goodyear Single Bellow Air Spring \| Customized Request	Bellow Type:	Single
Material:	Rubber + Steel	Goodyear Bellow:	578-91-3-301
MOQ:	1 Pc	Min Height:	2.3 Inch
Max Height:	7.2 Inch	Bottom Plate Alignment:	Parallel
Highlight:	Goodyear 1B12-313 Air Spring , Air Spring 578-91-3-301

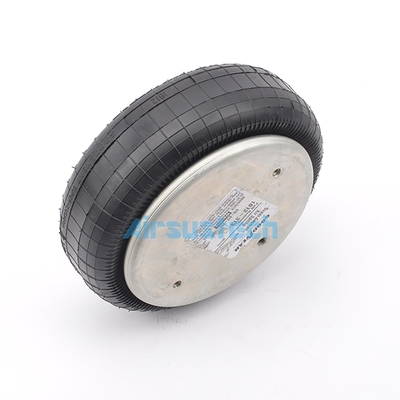

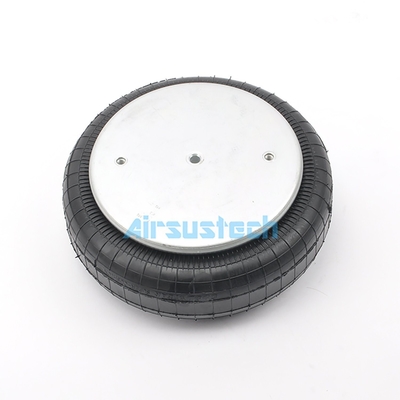

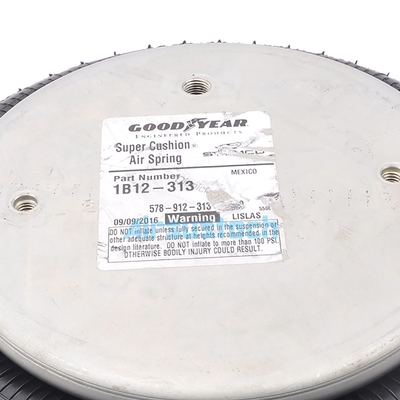

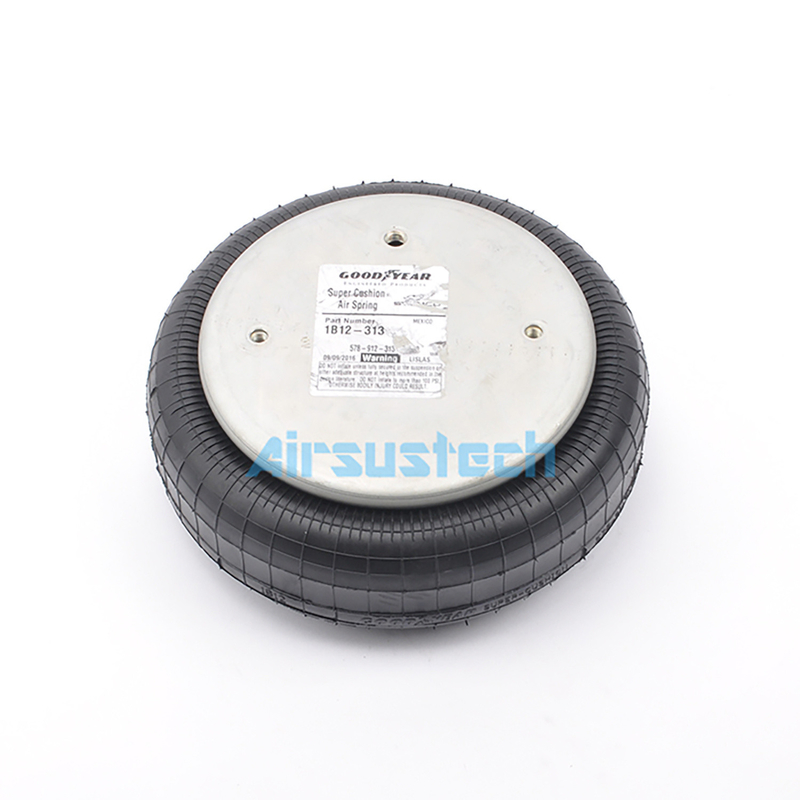

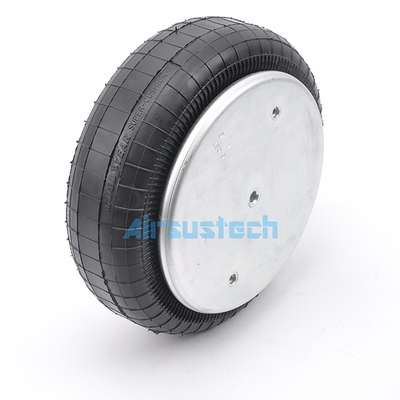

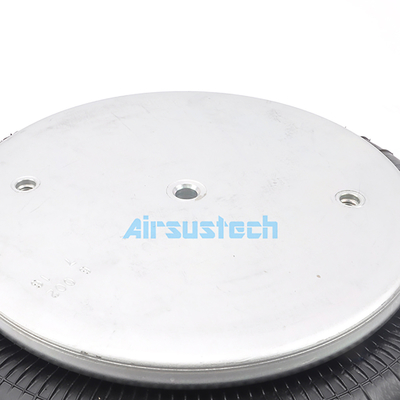

Goodyear 1B12-313 Convoluted Rubber 1/4 UNC Air Spring Ride Suspension 578-91-3-301

1B12-313 this air spring is imported from the American brand Goodyear. Its bellow number is 578-91-3-301. This is a real imported thing produced by a factory in Mexico. In 2015, Goodyear met with the North American factory for the transfer of shares, our company was awarded as the air spring sales agent in China, to provide more options for our customers.This is a Goodyear air spring in a capsule. Bellows air springs have one, two or three rotations in flexible members. This single spiral airbag is commonly found on the lift springs or axles of trucks and trailers, as a driving spring, and also as an actuator or insulator in industrial and commercial applications.

Refer No.

Firestone W01-358-7008

Firestone W01 358 7008

Firestone W013587008

ContiTech 64596,

ContiTech FS330-11474

ContiTech FS330 11474

ContiTech FS 330-11474

Neway 90557226
Manufacturer: Goodyear
Origin: Mexico
Genuine Goodyear 1B12-313 air spring.
Cross: Fire stone W01-358-7008, ContiTech 64596, FS330-11474 and Neway 90557226
Cross-references cannot guarantee that the part will be suitable for any particular application.

Specifications and Detailed Technical Parameters: Goodyear 1B12-313

Stroke: 3.30 in

Force at Maximum at 100psi: 6574 lbs

Load Range at 100 psi: 7300 to 8800 lbs

Height: 3 to 5 in

Bumper: Without

Air Port Thread Type: 1/4 UNC

System Natural Frewuence: 2.33Hz

Diameter at 100 psi: 13.2 in

End Plate Diameter: 9 in

Tap Spacing: 6.2 in

Air Port Thread Standard: UNC

Other Types Of Convoluted Goodyear Air Spring we have:

Goodyear Air Spring OE NO.	Goodyear Air Spring OE Bellows NO.	Goodyear order NO.	Bumper or not	Goodyear Air Spring OE NO.
1B8-564 Bellows Air Spring	1B8-564	20449825	N	1B8-564 Bellows Air Spring
ENIDINE YI-1B8-564	57991256400019	20095534	Y	ENIDINE YI-1B8-564
1B8-564 INTERNATIONAL 3547005C1	57991256400042	20141113	Y	1B8-564 INTERNATIONAL 3547005C1
1B8-565	1B8-565	20248442	N	1B8-565
C 1B8-560	57991256700090	20810735	Y	C 1B8-560
P 1B8-560	57991256800091	20810607	Y	P 1B8-560
P 1B8-550	57991256900091	20811403	Y	P 1B8-550
C 1B8-562	57991257000090	20811604	Y	C 1B8-562
C 1B8-564	57991257100090	20811605	Y	C 1B8-564
C 1B8-850	57991257200090	20811606	Y	C 1B8-850
C 1B8-550	57991262700090	20806174	Y	C 1B8-550
1B5-800	1B5-800	20469101	N	1B5-800
ENIDINE YI-1B5-800	57991280000019	20095537	Y	ENIDINE YI-1B5-800
GOODYEAR 1B5-801	57991280100000	20607917	Y	GOODYEAR 1B5-801
ENIDINE YI-1B5-801	57991280100019	20095538	Y	ENIDINE YI-1B5-801
1B5-810	1B5-810	20254245	N	1B5-810
ENIDINE YI-1B5-810	57991281000019	20095539	Y	ENIDINE YI-1B5-810
ENIDINE YI-1B5-820	57991282000019	20095540	Y	ENIDINE YI-1B5-820
ENIDINE YI-1B5-821	57991282100019	20224307	Y	ENIDINE YI-1B5-821
ENIDINE YI-1B6-831	57991283100019	20095541	Y	ENIDINE YI-1B6-831
