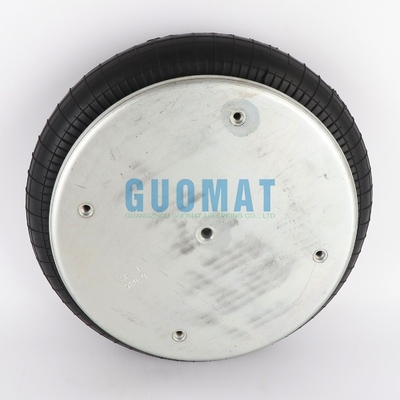

Vulcanization Air Rubber Bellow 1B14-372 by Goodyear Single Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B14-372

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product NO.:	1B14-372	Structure:	Single Convoluted
Damping Force Direction:	Bidirectional	Function:	Reduce Shock
Condition:	Brand New	Trademark:	GUOMAT
After-sales Service:	1 Year	Customization:	Available \| Customized Request
Highlight:	Goodyear Vulcanization Air Rubber Bellow , Goodyear Single Convoluted Air Spring , Vulcanization Air Rubber Bellow

Vulcanization Air Rubber Bellow 1B14-372 by Goodyear Single Convoluted Air Spring

About Air Spring

Air spring is a sealed container filled with compressed air, using the compressibility of gas to achieve its elastic effect. Commonly known as air bag, air bag cylinder, cylinder and so on. They have It is a double convoluted air - bag spring. It consists of a rubber air bag with cord and compressed air enclosed in it. The inner layer of the airbag is made of air-tight rubber, while the outer layer is made of oil-resistant rubber. A steel waist ring between the joints prevents radial expansion of the middle part and prevents friction between the two joints. In addition to the two, there are single, three and four convoluted air springs. The more nodes, the better the elasticity.

Product Details

Body Dia.[Max]: 405 mm
Compressed Height: 51 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 134 mm
Pressure [Max]: 0-8 bar
Height [Max]: 185 mm
Height [Min]: 51 mm
Air Inlet: G 1/4
Nut/Blind Nuts: M8
Center to Center Distance: 158.8 mm
Distance Air Hole Betweeen Screw: 158.8 mm

Part Interchanges

Manufacturer: GOODYEAR
Manufacturer Part Number: 1B14-372
Manufacturer Part Number: 1B 14-372
Manufacturer Part Number: 1B14 372
Manufacturer Part Number: 1B 14 372
Manufacturer Bellow Number: 578913351
Manufacturer Bellow Number: 578 91 3 351
Manufacturer Bellow Number: 578-91-3-351

Enidine YI-1B14-372
Enidine YI 1B14-372

Contitech FS530-14 CI G3/4
Contitech FS 530-14 CI G3/4
Contitech Order No. 61360

Fire-stone W01M586369
Fire-stone W01 M58 6369
Fire-stone W01-M58-6369
Fistone Style 113-1
Fistone New Style 113B-1

We Also Have Goodyear Other Types Air Bellow

1B12-305	1B12-313	2B6-530	2B6-531	3B12-304	3B12-305
1B14-350	1B14-351	2B6-532	2B6-535	3B14-351	3B14-353
1B14-352	1B14-362	2B6-536	2B7-540	3B14-354	3B15-375
1B14-364	1B15-375	2B7-541	2B7-542	3B15-376	3B15-377
1B15-376	1B15-377	2B7-545	2B7-546	3B15-378
1B15-378		2B8-550	2B8-552
		2B8-553	2B8-554
		2B9-200	2B9-201
		2B9-204	2B9-205
		2B9-216	2B9-250
		2B9-251	2B9-253
		2B12-309	2B12-218
		2B12-425	2B12-429
		2B12-437	2B12-416
		2B14-352	2B14-353
		2B14-354	2B14-355
		2B14-362	2B14-363
		2B14-452	2B15-375
		2B15-376	2B15-377
		2B15-378	2B19-8433
		2B22-8539

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
