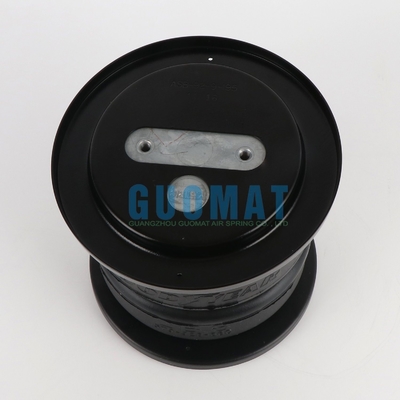

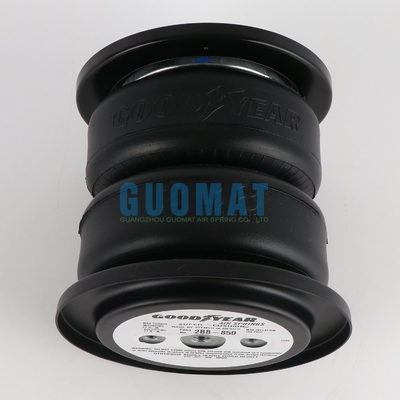

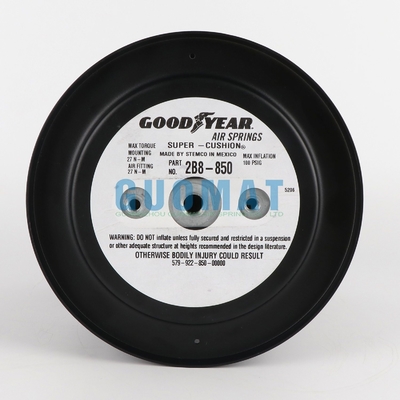

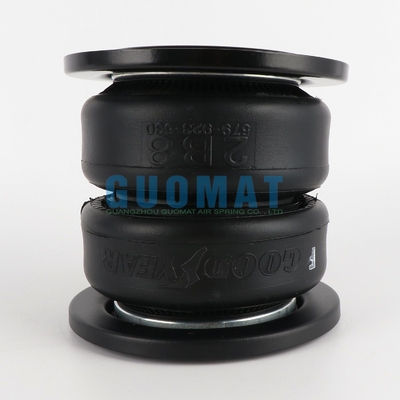

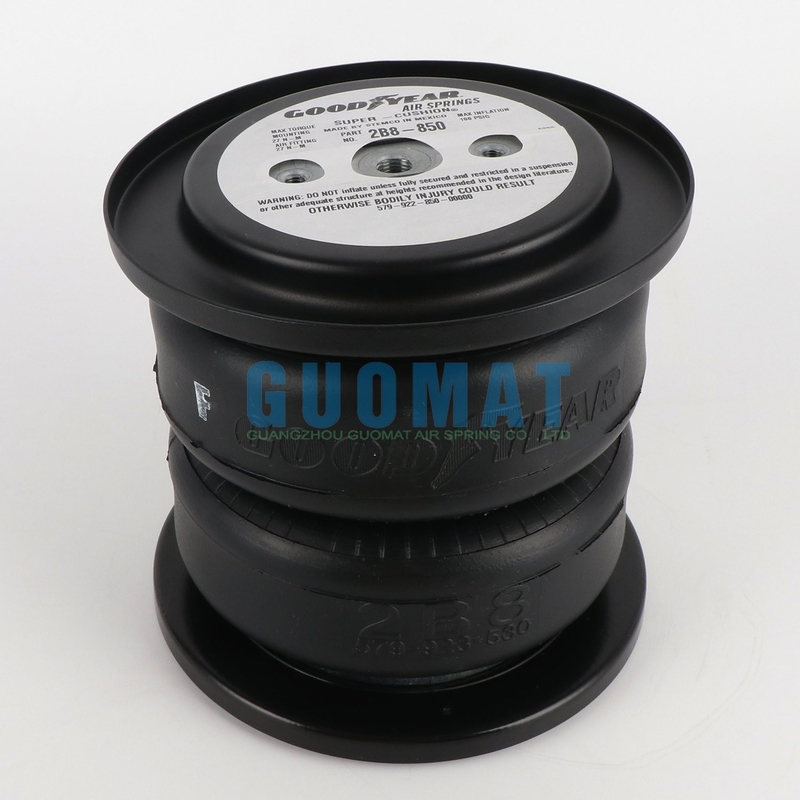

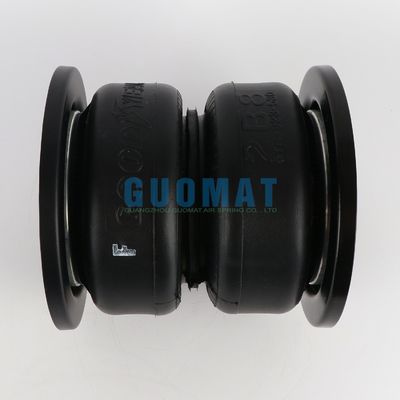

Reduce Shock 2B8-850 Goodyear Double Convoluted Rubber Bellow Contitech FD120-20

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B8-850

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B8-850	Structure:	Double Convoluted
Function:	Reduce Shock	Condition:	Brand New
OEM No.:	W01-M58-6353	Transport Package:	Cartons
Trademark:	GUOMAT	Warranty:	1 Year
Highlight:	2B8-850 Rubber Bellow , Contitech FD120-20 Rubber Bellow , Reduce Shock Rubber Bellow

Reduce Shock 2B8-850 Goodyear Double Convoluted Rubber Bellow Contitech FD120-20

Product Introduction

The rubber air spring is a sealed container filled with compressed gas (air pressure is 0.5-1Mpa), and uses the compressibility of the gas to achieve its spring action. The stiffness of this spring is variable. When the load acting on the spring hill increases, the quantitative gas in the container is compressed, the air pressure increases, and the stiffness of the spring increases. Conversely, when the load decreases, the air pressure in the spring decreases and the stiffness decreases. The rubber airbag has ideal elastic properties. There are two types of rubber air springs: capsule type and membrane type. The capsule type rubber air spring is composed of a rubber airbag with a cord and compressed air enclosed therein. The inner layer of the capsule type is made of airtight rubber, while the outer layer is made of oil-resistant rubber. The upper and lower covers of the airbag seal the airbag.

Product Technical Data

Assembly Number	Max OD @100 PSIG (Inches)	Design Load Range (pounds)	Design Height Range (Inches)	Usable Stroke (Inches)	Min Comp Height (Inches)	Max Ext Height (Inches)	Bumper Included	Approximate Isolation Percent				Air Fitting Size (Inches)
								For a Distributing Frequency Of:
								435 CPM	870 CPM	1160 CPM	1750 CPM
2B8-550	8.8	440 - 2,700	7.0 - 8.0	7.2	2.9	10.1	NO	93	97	98	99	1/4 C
2B8-552	8.8	440 - 2,700	7.0 - 8.0	7.2	2.9	10.1	NO	93	97	98	99	3/4 C
2B8-553	8.8	440 - 2,700	7.0 - 8.0	7.2	2.9	10.1	NO	93	97	98	99	1/4 OS
2B8-554	8.8	440 - 2,700	7.0 - 8.0	6.6	3.5	10.1	YES	93	97	98	99	1/4 OS
2B9-200	10.3	340 - 3,700	8.0 - 9.0	7.6	3.2	10.8	NO	92	97	98	99	1/4 OS
2B9-201	10.3	340 - 3,700	8.0 - 9.0	7	3.8	10.8	YES	92	97	98	99	1/4 OS
2B9-204	10.3	340 - 3,700	8.0 - 9.0	7.6	3.2	10.8	NO	92	97	98	99	1/2 OS
2B9-205	10.3	340 - 3,700	8.0 - 9.0	7	3.8	10.8	YES	92	97	98	99	1/2 OS
2B9-208	10.3	340 - 3,700	8.0 - 9.0	7	3.8	10.8	YES	92	97	98	99	3/4 OS
2B9-216	10.3	340 - 3,700	8.0 - 9.0	7.6	3.2	10.8	NO	92	97	98	99	3/4 OS
2B9-250	10.3	540 - 3,800	8.0 - 9.0	8.7	3.5	12.2	NO	93	98	99	99	1/4 OS
2B9-251	10.3	540 - 3,800	8.0 - 9.0	8.4	3.8	12.2	YES	93	98	99	99	1/4 OS
2B9-253	10.3	540 - 3,800	8.0 - 9.0	8.4	3.8	12.2	YES	93	98	99	99	1/4 OS
2B9-255	10.3	540 - 3,800	8.0 - 9.0	8.4	3.8	12.2	YES	93	98	99	99	1/4 OS
2B9-256	10.3	540 - 3,800	8.0 - 9.0	8.7	3.5	12.2	NO	93	98	99	99	1/4 OS
2B9-263	10.3	540 - 3,800	8.0 - 9.0	8.7	3.5	12.2	NO	93	98	99	99	1/2 OS
2B9-275	10.3	540 - 3,800	8.0 - 9.0	8.7	3.5	12.2	NO	93	98	99	99	3/4 OS

Alternative Items

Goodyear 2B8-850
Goodyear 2B 8-850
Goodyear 2B8 850
Goodyear 579923530
Goodyear 579-923-530
Goodyear 579 923 530
Fire-stone W01M586353
Fire-stone W01-M58-6353
Fire-stone W01 M58 6353
Fire-stone WO1M586353
Fire-stone WO1-M58-6353
Fire-stone WO1 M58 6353
Contitech FD120-20
Contitech FD 120-20
Contitech FD 120-20 CI G1/4

Every Standard Air Spring Consists of 4 Layers

The inner layer which actually contains the air.
The first layer of fabric reinforced rubber applied at a specific angle.
The second layer of fabric reinforced rubber which is laid to a specific angle to the first layer.
The cover to protect the bias fabric plies.
