Car Parts Goodyear 2B9-200 Double Convoluted Air Spring Damper

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	2B9-200

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-199.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Brand:	Goodyear	Function:	Reduce Shock
Quality:	100% Tested	Origin:	Mexico
Warranty:	1 Year	Part:	Air Spring
Position:	Air Suspension	Type:	Gas-Filled
Highlight:	Goodyear Double Convoluted Air Spring , 2B9-200 Double Convoluted Air Spring

Wholesale Car Parts Goodyear 2B9-200 Double Convoluted Air Spring Damper

Product Details

Type	Goodyear Suspension Air Spring	GOODYEAR	2B9-200
Material	Rubber and Steel	Warranty	12 Months
Rubber Type	Natural Rubber	MOQ	1 Piece

Goodyear 2B9-200
Goodyear 2B 9-200
Goodyear 2B9 200
Goodyear 578923202
Goodyear 578 92 3 202

Goodyear 578-92-3-202
Firestone W013586910
Firestone W01 358 6910
Firestone W01-358-6910
Firestone WO13586910
Firestone WO1 358 6910
Firestone WO1-358-6910
Contitech FD200-19 320
Contitech FD 200-19 320

Contitech 64267

Automann ABSP2B12R-6910

Dayton 354-6910

Dina A-8127-19

Granning 1371

HDA PMABG-6910B

Hendrickson 45843-3

Hendrickson B-8768

INT'L/NAVISTAR 554783C1

Load Guard SC2011

Masa 227138412

Prevost 63-0173

R&S truck & Body 1027405

Ridewell 1003586910C

Ridewell S-4512-C

Springride 2B9-492

Taurus AS218-6910

Triangle 4320

TRP AS69100

Watson&Chalin AS-0001

2B9-200 Goodyear Air Spring Technical Data

Goodyear #:	2B9-200
Bellow Type:	Double
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty:	3
Top Plate Dia:	6.4
Top Plate C to C Diameter:	3.5
Bottom Plate Hole Stud Qyt:	2
Bottom Plate Dia:	6.4
Bottom Plate C to C Diameter:	3.5
Bottom Plate Part #:
Bottom Plate Alignment:	Parallel
Bumper:	No
Bracket:
Min Height:	3.2
Max Height:	10.8

Every Standard Air Spring Consists of 4 Layers

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.

GOODYEAR AIR BAG 354-6910 23704-01 554783C1 6910 M-3501 PMABG-6910B S4512C AS0001 AB-2B9-200 AS218-6910 AS6910 CS209200 45843-3 4320 1003586910C 10-96910 1371 1027405 E-FS6910 SC2011 10-96910 M-3501 E-FS6910 6910 1371 PMABG-6910B AB-2B9-200 SC2011 SC201 CS209200 554783C1 S4512C 1003586910C AS218-6910 AS0001 45843-3 4320

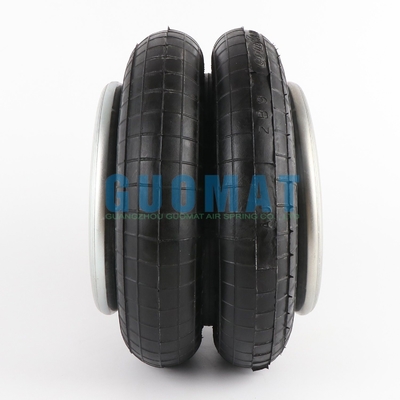

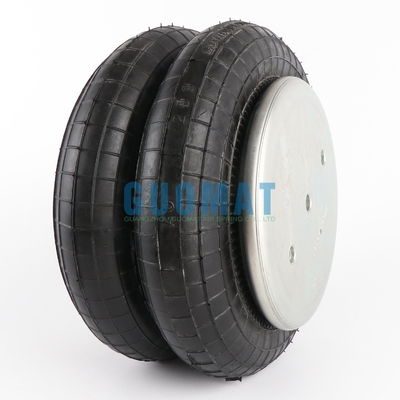

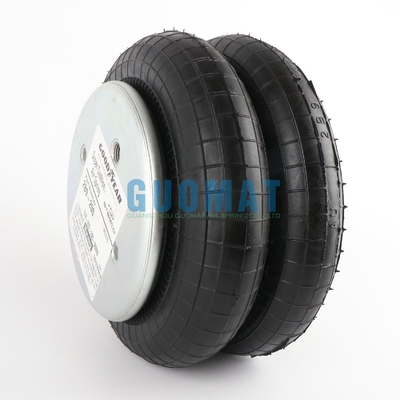

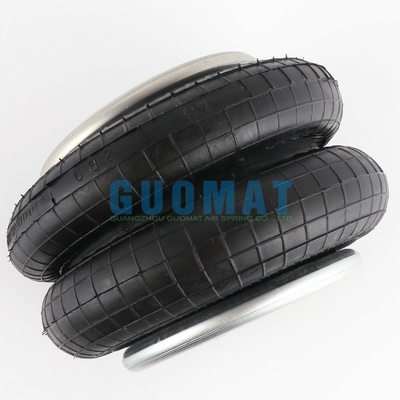

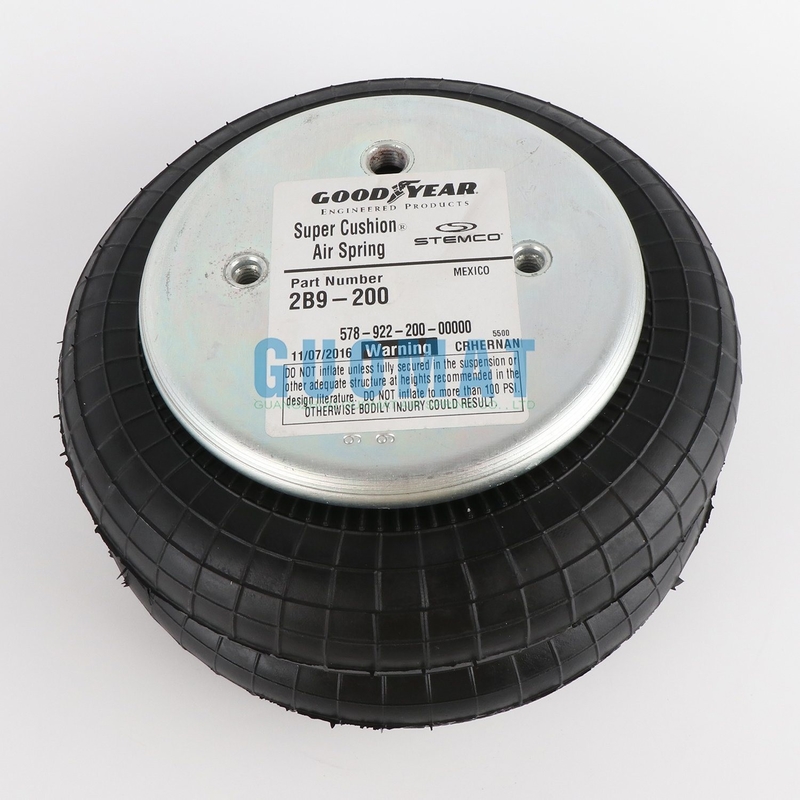

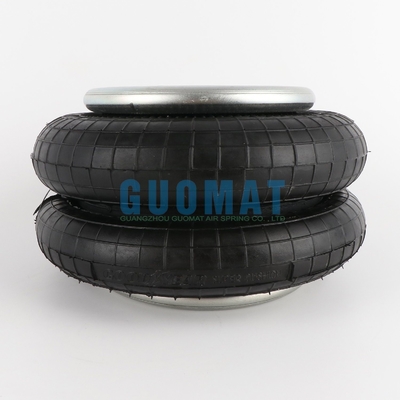

Product Images
