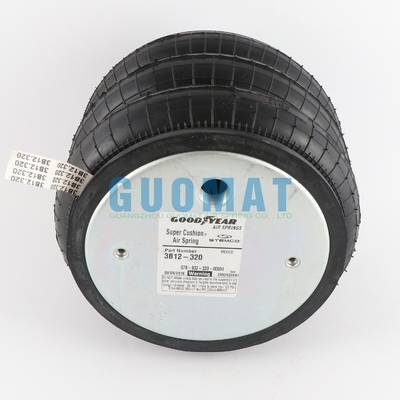

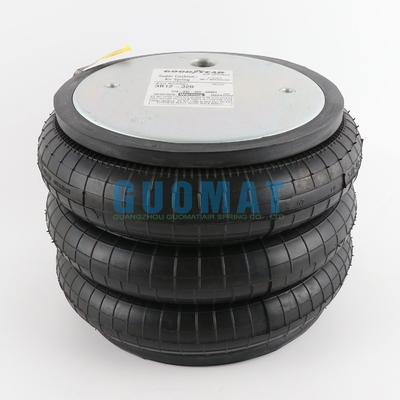

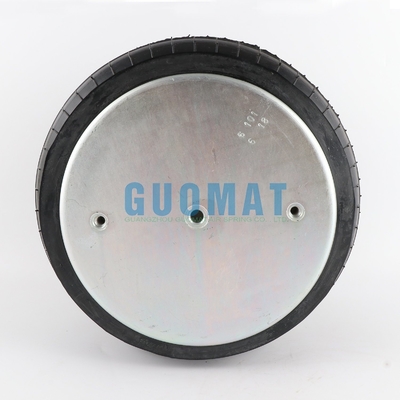

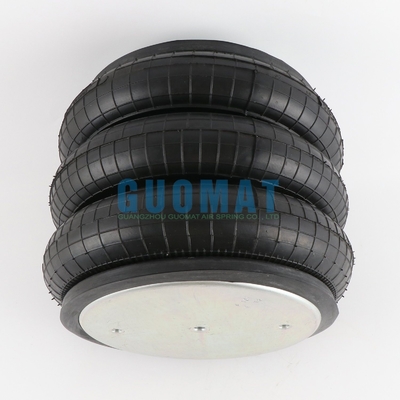

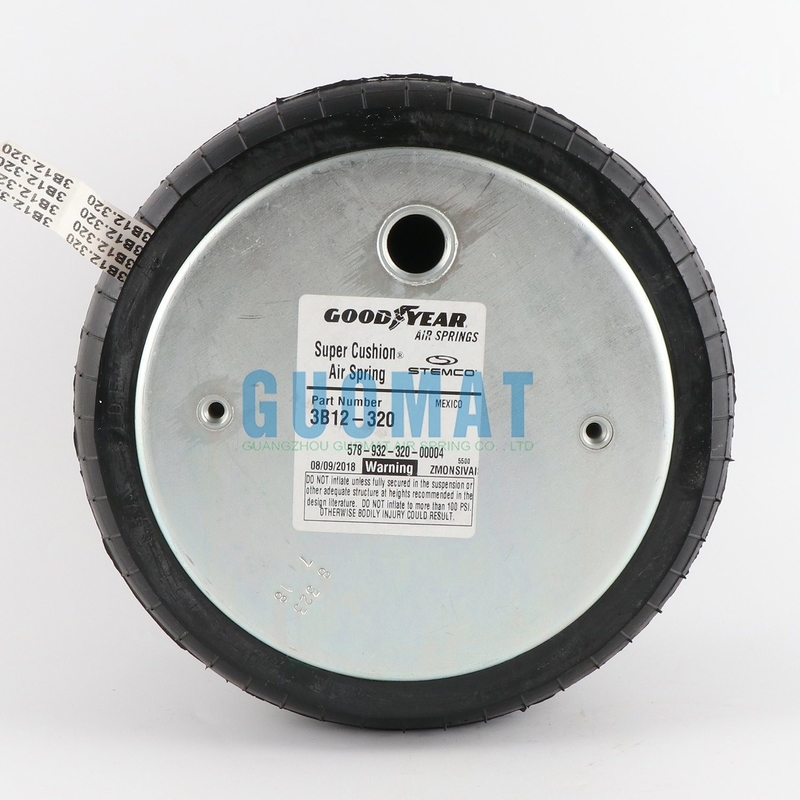

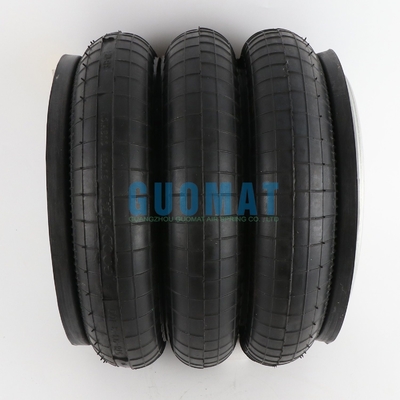

New Goodyear Convoluted Rubber Bellow 578-93-3-100 Contitech FT 330-29 CI G 3/4

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B12-320

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	3B12-320	Material:	Rubber And Steel
Structure:	Triple Convoluted	Condition:	Brand New
OEM No.:	FT 330-29	Transport Package:	Cartons
Trademark:	GUOMAT	Application:	Industrial Machine
Highlight:	New Goodyear Convoluted Rubber Bellow

New Goodyear Convoluted Rubber Bellow 578-93-3-100 Contitech FT 330-29 CI G 3/4

Product Details

Top plate screw (nut) teeth	2×1/2-13 UNC
The screw center distance of the top cover plate	157 mm
Screw (nut) teeth of the bottom cover plate	2×1/2-13 UNC
The screw center distance of the bottom cover plate	157 mm
Air connection	1/4-18 NPTF
Screw center distance between air inlet and nut	73 mm
Top cover plate diameter	228.6 mm
Diameter of bottom cover plate	228.6 mm
Max. diameter of rubber bellow	325 mm
Natural diameter of rubber bellows	300 mm
Full stroke	337 mm
Maximum height	305 mm
Minimum height	104 mm
Stroke height	201 mm

Other Part Number

Goodyear 3B12-320
Goodyear 3B 12-320
Goodyear 3B12 320
Goodyear 578933100
Goodyear 578-93-3-100
Goodyear 578 93 3 100
Fire-stone 352D
Fire-stone W01-M58-6128
Fire-stone W01 M58 6128
Fire-stone W01M586128
Fire-stone WO1-M58-6128
Fire-stone WO1 M58 6128
Fire-stone WO1M586128
Contitech FT330-29
Contitech FT330-29 CI G3/4
Contitech FT 330-29 CI G3/4

What Are The Advantages of Our Shock Absorbers

Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

We Can Offer Other Goodyear Air Springs

Single Convoluted	Double Convoluted		Triple Convoluted
1B12-305	2B6-530	2B6-531	3B12-304
1B14-350	2B6-532	2B6-535	3B14-351
1B14-352	2B6-536	2B7-540	3B14-354
1B14-364	2B7-541	2B7-542	3B15-376
1B15-376	2B7-545	2B7-546	3B15-378
1B15-378	2B8-550	2B8-552	3B12-305
1B12-313	2B8-553	2B8-554	3B14-353
1B14-351	2B9-200	2B9-201	3B15-375
1B14-362	2B9-204	2B9-205	3B15-377
1B15-375	2B9-216	2B9-250
1B15-377	2B9-251	2B9-253
	2B12-309	2B12-218
	2B12-425	2B12-429
	2B12-437	2B12-416
	2B14-352	2B14-353
	2B14-354	2B14-355
	2B14-362	2B14-363
	2B14-452	2B15-375
	2B15-376	2B15-377
	2B15-378	2B19-8433
	2B22-8539

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
