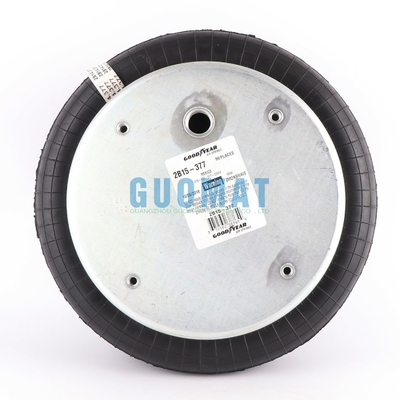

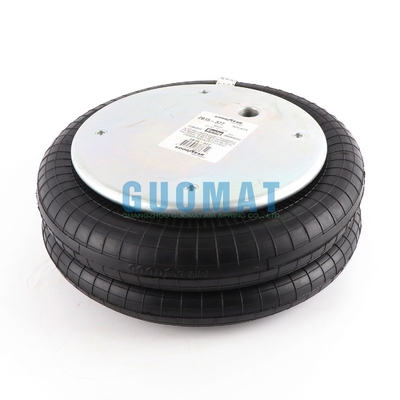

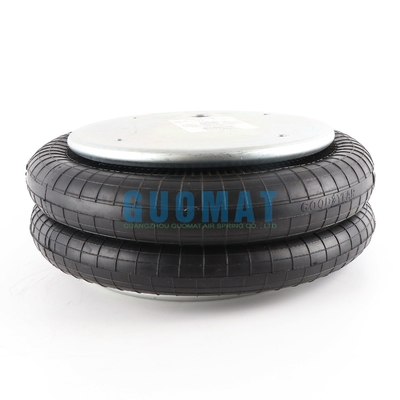

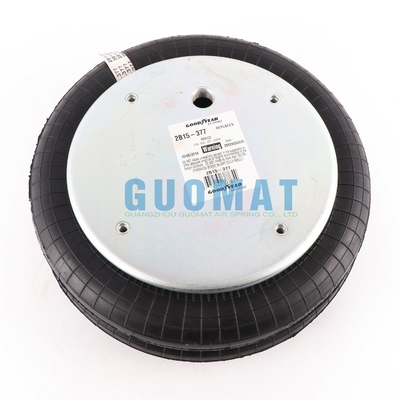

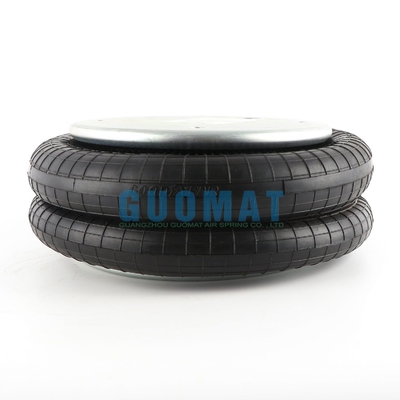

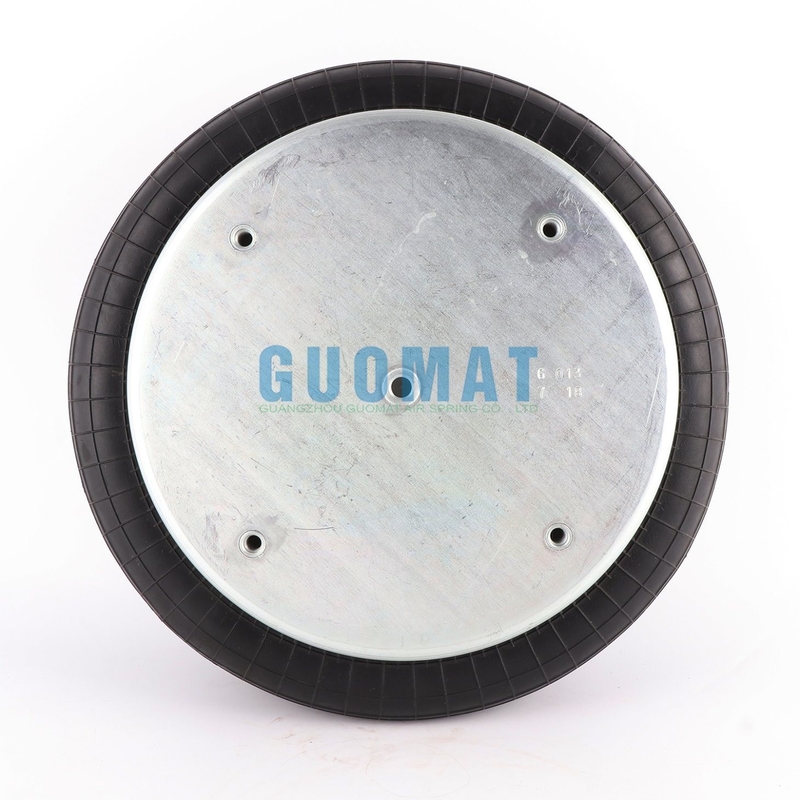

Imperial Rubber Air Bellows 578-92-3-377 Goodyear 2B15-377 High Durability

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B15-377

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B15-377	Structure:	Double Convoluted
Function:	Reduce Shock	Condition:	Brand New
OEM No.:	FD 53035-1165	Transport Package:	Cartons
Trademark:	GUOMAT	Position:	Industrial Machine
Highlight:	Goodyear 2B15-377 Air Bellows , 578-92-3-377 Air Bellows , High Durability Air Bellows

Imperial Rubber Air Bellows 578-92-3-377 Goodyear 2B15-377 High Durability

GUOMAT Air Suspensions

GUOMAT Air Suspensions are known for their exceptional durability, precise engineering, and cost-efficiency, making them ideal for a wide range of actuation and vibration isolation applications. Built with time-proven designs, these air springs feature fabric-reinforced Neoprene or Natural Rubber flex members, combined with corrosion-resistant end retainers, ensuring outstanding quality and reliable performance. When used as actuators, GUOMAT Air Bags deliver both linear and angular motion with precision and efficiency. As vibration isolators, they excel at minimizing the detrimental effects of vibration, offering enhanced stability and protection across various applications.

Technical Data

Part Number	Usable Stroke	Max Diameter	Min. Height (in.)	Max. Height (in.)	100psi	80psi	60psi	40psi	100psi	80psi	60psi	40psi
Part Number	Usable Stroke	Max Diameter	Min. Height (in.)	Max. Height (in.)	Force At Actuator Height Limit (Pounds)				Force At Compressed Height Limit (Pounds)
2B14-352	7.8	15.1	3.5	11.3	3485	2715	2000	1240	13915	11070	8280	5480
2B14-353	6.4	15.1	4.9	11.3	3485	2715	2000	1240	13100	10555	7880	5275
2B14-354	7.8	15.1	3.5	11.3	2485	2715	2000	1240	13915	11070	8280	5480
2B14-355	6.4	15.1	4.9	11.3	3485	2715	2000	1240	13100	10555	7880	5275
2B14-362	11.7	16.0	3.5	15.2	4310	3150	2065	1120	16265	12965	9665	9345
2B14-452	11.0	16.0	4.2	15.2	4310	3150	2065	1120	15385	12235	9090	5970
2B15-375	9.3	16.7	4.9	12.8	4105	2970	2090	1270	15675	12510	9350	6210
2B15-376	7.9	16.7	4.9	12.8	4105	2970	2090	1270	14230	11375	8490	5075
2B15-377	9.3	16.7	3.5	12.8	4105	2970	2090	1270	15675	12510	9350	6210
2B15-378	7.9	16.7	4.9	12.8	4105	2970	2090	1270	14230	11378	8490	5075
2B19-8433	6.75	20.0	3.25	10.0	17680	14000	10340	6710	27240	21750	16260	10760
2B22-8539	6.75	22.75	3.25	10.0	24190	19110	14130	9320	34100	27140	20150	13320

Cross Number

Original Manufacturer: GOODYEAR
Country of Origin: Mexico
GOODYEAR 2B15-377
GOODYEAR 2B 15-377
GOODYEAR 578923377
GOODYEAR 578 92 3 377
GOODYEAR 578-92-3-377
Enidine YI-2B15-377
Enidine YI 2B15 377
Enidine YI2B15377
Contitech FD53035-1165
Contitech FD 53035-1165
Contitech FD53035 1165
Fire-stone W013589529
Fire-stone W01 358 9529
Fire-stone W01-358-9529
Fire-stone WO13589529
Fire-stone WO1 358 9529
Fire-stone WO1-358-9529

Double Convoluted Bellow Type We Can Provide

2B6-530	2B6-531
2B6-532	2B6-535
2B6-536	2B7-540
2B7-541	2B7-542
2B7-545	2B7-546
2B8-550	2B8-552
2B8-553	2B8-554
2B9-200	2B9-201
2B9-204	2B9-205
2B9-216	2B9-250
2B9-251	2B9-253
2B12-309	2B12-218
2B12-425	2B12-429
2B12-437	2B12-416
2B14-352	2B14-353
2B14-354	2B14-355
2B14-362	2B14-363
2B14-452	2B15-375
2B15-376	2B15-377
2B15-378	2B19-8433
2B22-8539

Product Applications

Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
