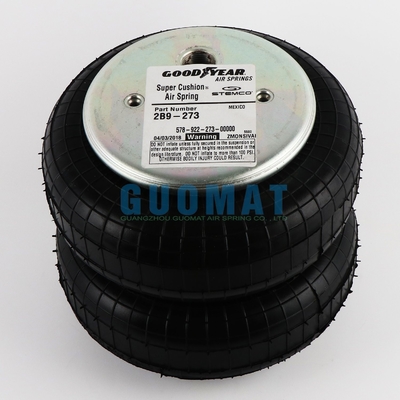

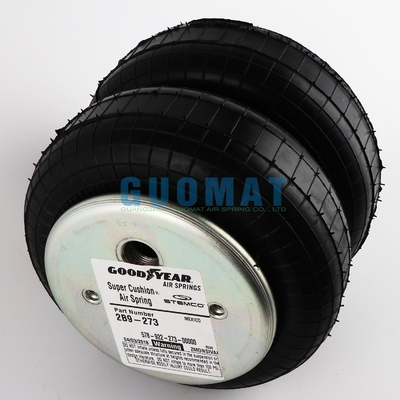

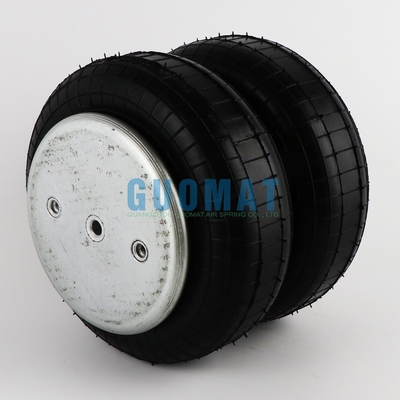

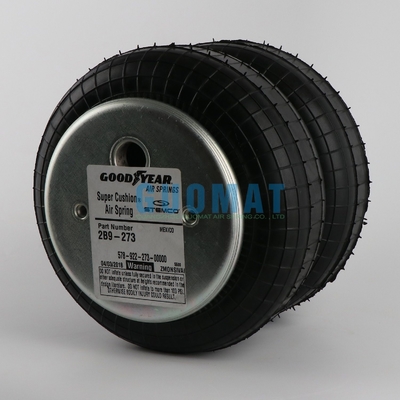

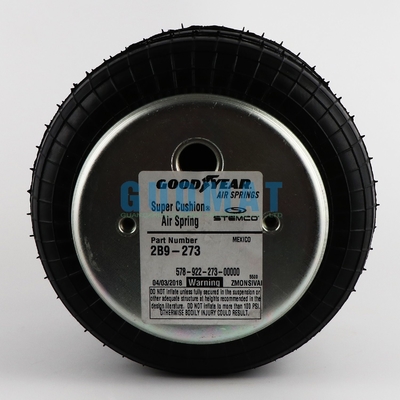

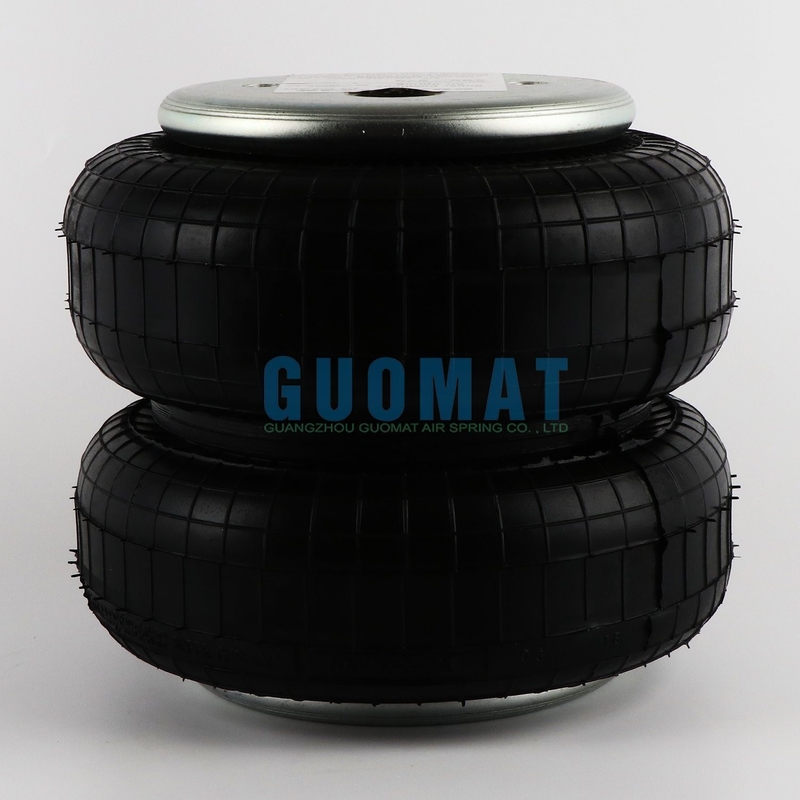

2B9-273 Goodyear Air Spring 578-92-3-211 for Contitech FD 200-25 G1/4 Air Inlet

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B9-273

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B9-273	Spring Material:	Rubber And Steel
Bellows Type:	Double Cylinder	Brand:	GUOMAT
Quality:	100% Tested	Warranty:	12 Months
Type:	Gas-Filled	Sample:	Available
Highlight:	Contitech Goodyear Air Spring , 2B9-273 Goodyear Air Spring

2B9-273 Goodyear Air Spring 578-92-3-211 for Contitech FD 200-25 G1/4 Air Inlet

Product Description

GUOAMT air springs are available in single, double, or triple bellow configurations, designed to meet diverse needs across various suspension systems and applications. Widely utilized in trucks, trailers, and industrial settings, these air springs excel with their unique ability to perform linear or angular movements while maintaining a significantly lower profile compared to traditional air cylinders. Their remarkable versatility makes them ideal for use in machinery for pressing, tensioning, rolling, conveying, lifting, and packaging. Furthermore, as vibration dampers, they efficiently reduce the harmful effects of vibration, ensuring smoother and more stable operation.

Product Details

Cover Plate
Top Cover Plate Diameter	161mm
Screw Center Distance of Top Cover Plate	89mm
Bottom Cover Plate Diameter	161mm
Screw Center Distance of Bottom Cover Plate	89mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth	2×M8×15
Bottom Cover Plate Screw(Nut) Tooth	2×M8×15
Gas Hole/Air Inlet/Air Fitting
Air Hole	G1/4
Rubber Bellow
Rubber Bellow Max. Diameter	260mm
Minimum Height	77mm
Maximum Height	325mm
Space Required	275mm

OEM Number

Goodyear Number: 2B9-273

Goodyear Number: 2B 9-273
Goodyear Number: 2B9 273
Goodyear Number: 2B 9 273
Goodyear Rubber Number: 578922273
Goodyear Rubber Number: 578 922 273
Goodyear Rubber Number: 578-922-273
Goodyear Rubber Number: 578-922-273-00000

We Can Offer Other Double Convoluted Air Springs

2B6-530	2B6-531	FD 40-10 CI	SP2907
2B6-532	2B6-535	FD 70-13 CI	SP2441
2B6-536	2B7-540	FD 110-15 CI	SP2917
2B7-541	2B7-542	FD 120-17 CI	SP1482
2B7-545	2B7-546	FD 120-20 CI	SP1490
2B8-550	2B8-552	FD 200-19 CI	SP1538
2B8-553	2B8-554	FD 200-22 CI	SP1541
2B9-200	2B9-201	FD 200-25 CI	SP2782NB
2B9-204	2B9-205	FD 330-22 CI	SP1556
2B9-216	2B9-250	FD 330-30 CI	SP1557
2B9-251	2B9-253	FD 530-22 CI	SP1408
2B12-309	2B12-218	FD 530-35 CI	SP2342
2B12-425	2B12-429	FD 960-22 CI
2B12-437	2B12-416	FD 1330-25 CI
2B14-352	2B14-353
2B14-354	2B14-355
2B14-362	2B14-363
2B14-452	2B15-375
2B15-376	2B15-377
2B15-378	2B19-8433
2B22-8539

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
