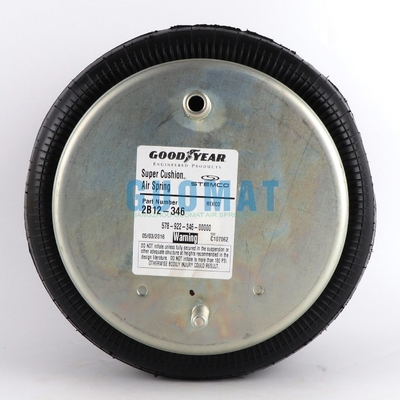

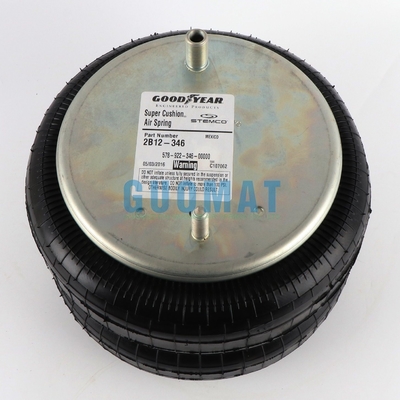

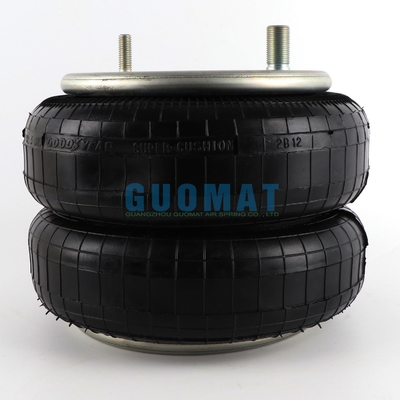

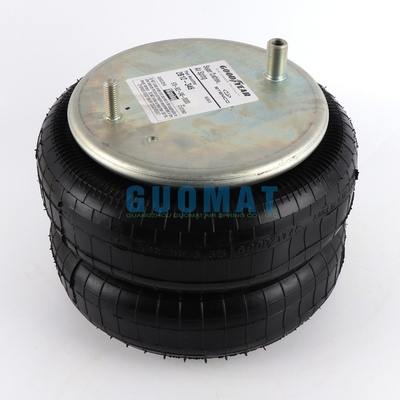

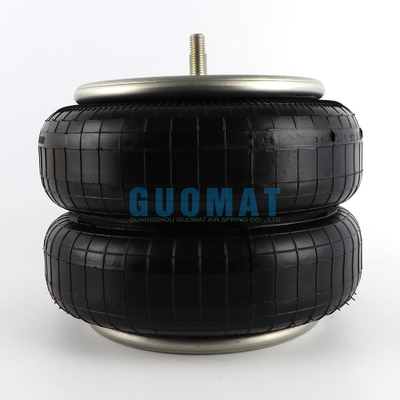

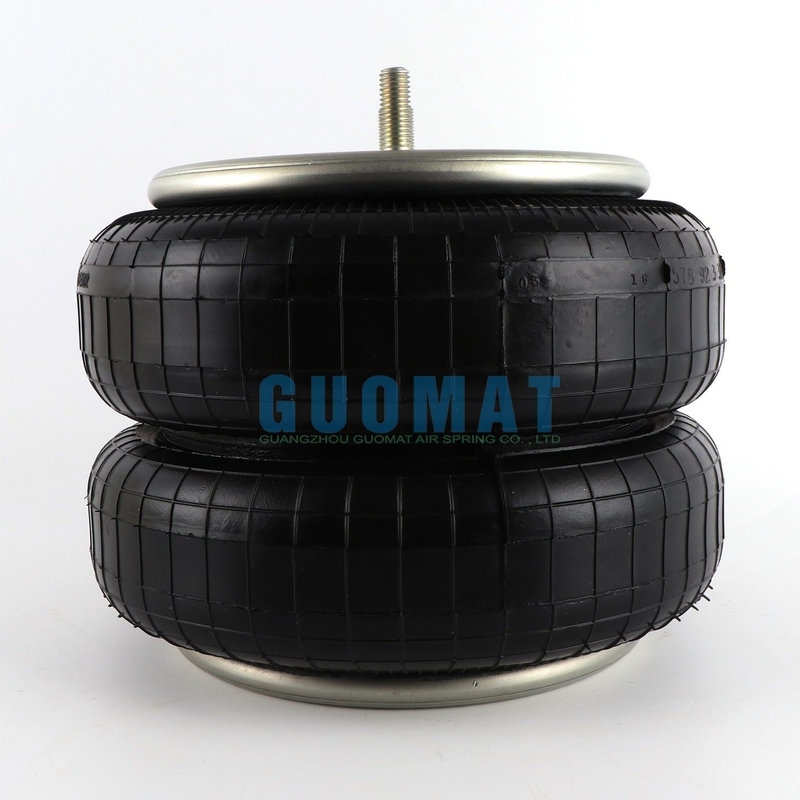

Goodyear Pneumatic Air Bellow 2B12-346 Double Convoluted for Truck Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B12-346

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B12-346	Structure:	Double Convoluted Air Spring
Function:	Shock Absorber	Trademark:	GUOMAT
Warranty:	12 Months	Total Stroke:	10.6 Inches
Bellow Number:	ASA-92-8-005	Plate Width:	9.00 Inches
Highlight:	Goodyear Pneumatic Air Bellow , Truck Air Spring Air Bellow

Goodyear Pneumatic Air Bellow 2B12-346 Double Convoluted for Truck Air Spring

Product Introduction

This is a Goodyear bellows-style air spring, designed with one, two, or three convolutions in the flexible member. The 2B12-346 double-convoluted air spring is commonly used in truck and trailer lift axles as an air ride suspension spring. Beyond vehicle applications, it also serves as an actuator or insulator in various industrial and commercial settings. Goodyear double-convoluted air springs are available in crimped designs and sleeve-style bellows. While both types share similar features and functionality, sleeve-style bellows stand out for their durability, as their end retainers are permanently secured by crimping the flexible member between the retainers and external crimp rings.

Refer Number

Goodyear Number 2B12-346
Goodyear Number 2B 12-346
Goodyear Flexmember: 578-92-3-315
Goodyear Flexmember: 578 92 3 315
Goodyear Flexmember: 578923315
Goodyear Trimmed: 2B12346

Product Details

Compressed Height	3.50 in.	Air Spring Type	Double Convoluted
Top Plate Diameter	9.00 in.	Top Mounting	1×combination stud, 1×stud
Bottom Mounting	2×threaded hole	Bottom Piston/Plate Diameter	9.00 in.
Bellows Number	FD 331-26	VMRS	016008001

OEM Numbers

Firestone	7550
ContiTech	FD331-26541
ContiTech	FD 331-26541
ContiTech	FD 331-26 541
Triangle Spring	4541
Histeer - Link Mfg.	10325
Watson & Chalin	AS-0087
Euclid/Meritor Aftermarket	E-FS7550
Euclid/Meritor Aftermarket	FS7550

Goodyear Double Convoluted Air Springs

2B6-530	2B6-531
2B6-532	2B6-535
2B6-536	2B7-540
2B7-541	2B7-542
2B7-545	2B7-546
2B8-550	2B8-552
2B8-553	2B8-554
2B9-200	2B9-201
2B9-204	2B9-205
2B9-216	2B9-250
2B9-251	2B9-253
2B12-309	2B12-218
2B12-425	2B12-429
2B12-437	2B12-416
2B14-352	2B14-353
2B14-354	2B14-355
2B14-362	2B14-363
2B14-452	2B15-375
2B15-376	2B15-377
2B15-378	2B19-8433
2B22-8539
